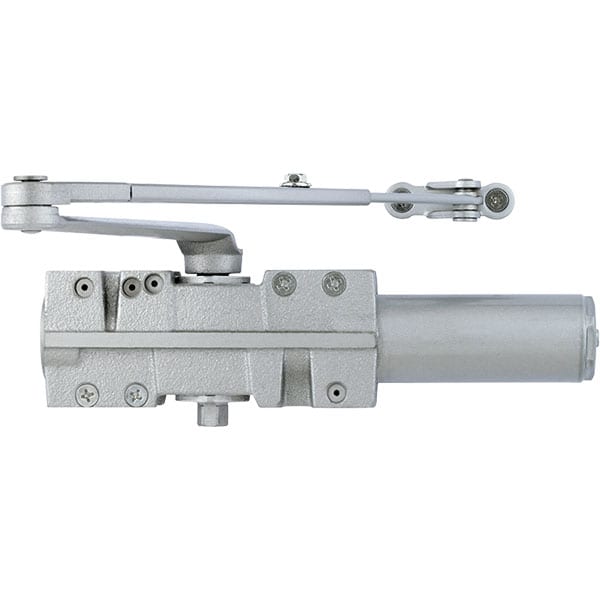

Stanley QDC111 Door Closer


This item ships FREE! Usually Ships: 10-15 Business Days
  • Heavy Duty – ANSI Grade-1
  • Adjustable Spring Size 1-6
  • Non-Handed – Regular, Top Jamb or Parallel Arm Mount

The STANLEY Commercial Hardware QDC100 Series was designed and engineered with ultimate durability and versatility in mind. With cast iron construction, retrofit-compatible features and a wide array of options, these ANSI/BHMA Grade 1 closers provide the strength and versatility institutional and industrial markets demand. Built with robust materials and designed for easy customization and retrofit, the QDC100 delivers lasting security for even the most rigorous applications.

With cast iron body construction, cold-forged pinion shaft and forged steel arms, the QDC100 stands up to heavy use over the long term. Innovative construction features like staked valves prevent oil leaks from screws being accidentally backed out too far.

  • Tri-packed: regular, parallel, and top jamb mounting
  • Standard, separate and independent, latch, sweep and backcheck intensity valves
  • Retrofit for LCN 4040/4041


Heavy Duty

ANSI/BHMA Standard

ANSI/BHMA A156.4, Grade 1 certified

Templating (Hole Pattern)

2-1/4" x 5"

Body Construction

Cast Iron Body

Spring Size

Adjustable Spring Size 1-6


Full Cover

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

Fire Rating

UL Listed – UL10c compliant for positive pressure



Door Applications

Hollow Metal, Wood or Aluminum


689 Aluminum
