ND80JDEU-RHO-626
ND80JDEU-RHO-626

Schlage ND80JDEU RHO (Rhodes) Storeroom Lever Lock, FSIC Prep, Electrically Unlocked (Fail Secure)

Usually Ships: 1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade 1
  • Outside always locked – Entry by key or electric current only
  • Prepped for Interchangeable Core (FSIC Core Sold Separately)

Available Options:

Clear

Product Overview

Schlage ND80JDEU RHO Grade 1 Electrified Cylindrical Lock, Storeroom Function, 12-24V DC, Fail Secure, 2-3/4″ Backset, Rhodes Lever, LFIC Prep

The Schlage electrified ND Grade 1 Cylindrical lock offers offer superior energy efficiency and flexibility in wired electrified applications. The Schlage electrified ND Grade 1 Cylindrical lock has been completely redesigned to offer superior energy efficiency and flexibility in wired electrified applications. Wired electrified locks compliment the mechanical offering and are typically incorporated into a wired access control system or used independently with a remote access switch (e.g. switch behind a receptionist desk).

Interchangeable core users can enjoy the convenience of fast rekeying without having to disassemble the lock. This feature is very useful in applications where a high frequency of core changes are needed.

ND80JDEU: Electrically unlocking/ fail secure – Outside lever continuously locked until unlocked by key or electric current • Auxiliary latch deadlocks latchbolt when door is closed • Inside lever always free for immediate exit.

23-030 Full Size Interchangeable Core Sold Separately

  • Exceeds ANSI A156.2 Series 4000 Grade 1 requirements
  • UL listed for 3-hour fire door
  • Universal Input Voltage – autodetects 12 through 24V DC for installation flexibility
  • Electrical requirements: 24V AC, .35 amps or 24V DC, .15 amps
  • Operating Temperature: Maximum +151 1/2F, Minimum -31 1/2F

The electrified ND is ideally used in:

  • High traffic areas, where line power ensures continuous operation
  • New construction, where electrified door prep, hinges, and wiring can easily be incorporated into the building

Brand

Finishes

626 Satin Chrome
Lock Function

Electrified Storeroom

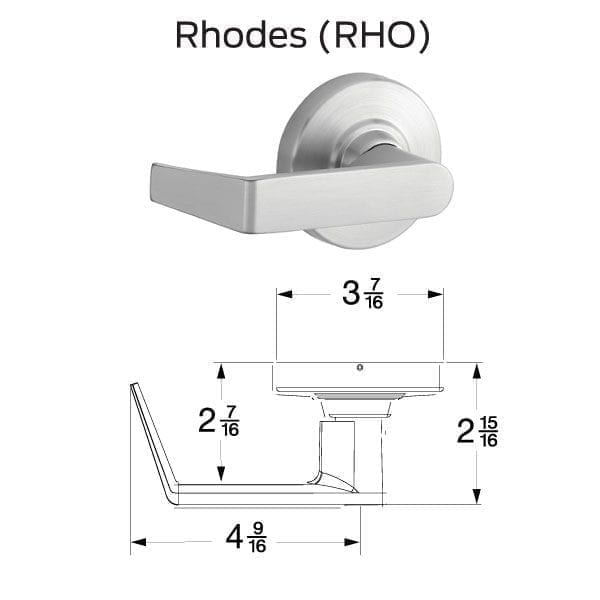

Lever Design

RHO (Rhodes)
Usage

Heavy Duty
ANSI/BHMA Standard

Meets and Exceeds ANSI/BHMA A156.2, Series 4000, Grade 1
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

UL/cUL listed up to 3 Hours (A Label) – UL symbol on the latch front
Handing

Non-Handed
Backset

2-3/4"
Latch

1/2” throw, deadlocking – 1-1/8" x 2-1/4" face
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Door Thickness

1-3/4"
Schlage_ND_Series_Standard_Installation_Instructions Schlage_ND_Series_Electrified_Functions_Install_Instructions
