Schlage ND80PDEU RHO (Rhodes) Storeroom Lever Lock with Cylinder Electrically Unlocked (Fail Secure)

Usually Ships: 1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade 1
  • Outside always locked, entry by key or electric current only
  • 12-24V DC, fail secure (power fail locks outside lever)

Available Options:
Clear

Product Overview

Schlage ND80PDEU RHO Grade-1 Cylindrical Lever Lock, Storeroom Function, Cylinder Electrically Unlocked (Fail Secure), Rhodes Lever

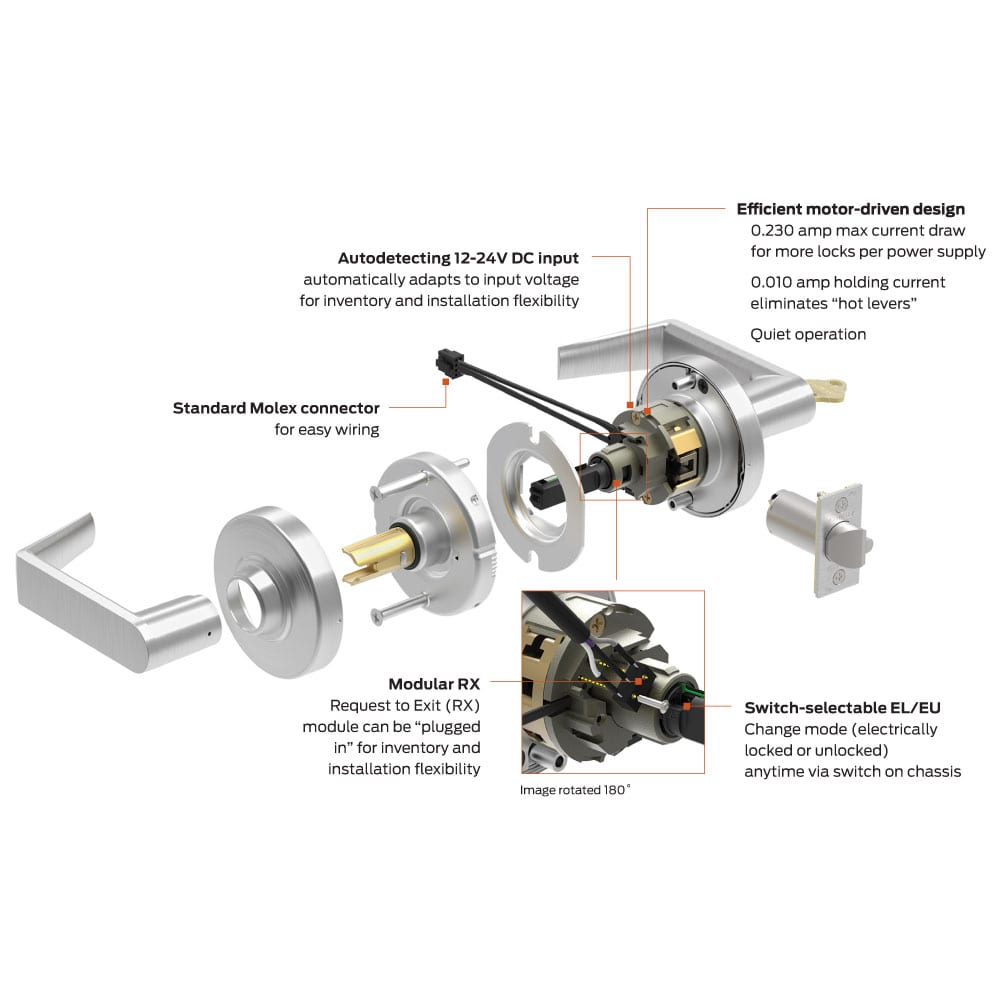

The Schlage electrified ND Grade 1 Cylindrical lock offers offer superior energy efficiency and flexibility in wired electrified applications. The Schlage electrified ND Grade 1 Cylindrical lock has been completely redesigned to offer superior energy efficiency and flexibility in wired electrified applications. Wired electrified locks compliment the mechanical offering and are typically incorporated into a wired access control system or used independently with a remote access switch (e.g. switch behind a receptionist desk).

ND80PDEU: Electrically unlocking/ fail secure – Outside lever continuously locked until unlocked by key or electric current. Fail secure (power fail locks outsidelever). Auxiliary latch deadlocks latchbolt when door is closed. Inside lever always free for immediate exit.

  • Exceeds ANSI A156.2 Series 4000 Grade 1 requirements
  • UL listed for 3-hour fire door
  • Universal Input Voltage – autodetects 12 through 24V DC for installation flexibility
  • Electrical requirements: 24V AC, .35 amps or 24V DC, .15 amps
  • Operating Temperature: Maximum +151 1/2F, Minimum -31 1/2F

The electrified ND is ideally used in:

  • High traffic areas, where line power ensures continuous operation
  • New construction, where electrified door prep, hinges, and wiring can easily be incorporated into the building

Brand

Finishes

605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome
Lock Function

Electrified Storeroom
Lever Design

RHO (Rhodes)
Cylinder & Keys

6-pin conventional, keyed different, with 2 keys
Keyway

Schlage C Keyway, Schlage S123 Keyway
Usage

Heavy Duty
ANSI/BHMA Standard

Meets and Exceeds ANSI/BHMA A156.2, Series 4000, Grade 1
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

UL/cUL listed up to 3 Hours (A Label) – UL symbol on the latch front
Handing

Non-Handed
Backset

2-3/4"
Latch

1/2” throw, deadlocking – 1-1/8" x 2-1/4" face
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Door Thickness

1-3/4"
