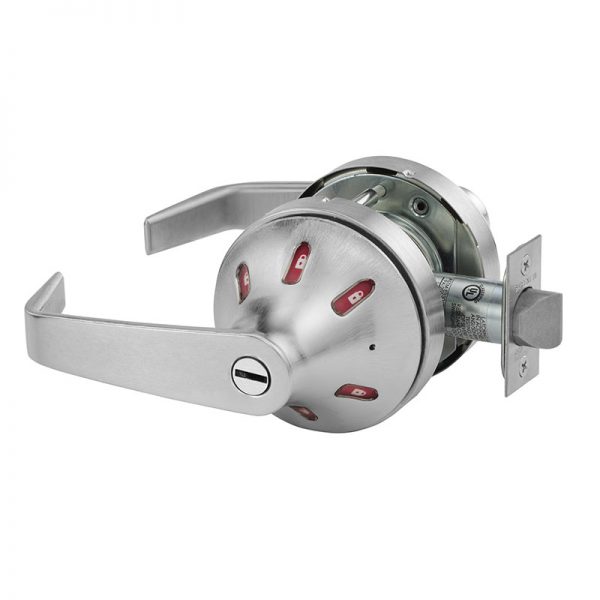

Sargent 10XU65-VSLL Heavy Duty Privacy/Bathroom Visual Status Lever Lock with Indicator

Usually Ships: 30-45 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade 1
  • ANSI F76 privacy/bathroom function
  • Indicator is highly visible from all angles

Available Options:

Clear

Sargent 10XU65-VSLL 10X Line Cylindrical Lever Lock with VSL Trim, Privacy/Bathroom Function, VSL Trim Design, L Lever – 2-3/4″ B.S.

The 10X Line cylindrical lock with status indicators, is the ultimate intersection of security and privacy. Engineered for easy installation in any space, it ensures instant visibility of the door’s lock status. Featuring status indicator windows for optimal visibility. Built on the robust 10X Line lock body, it exceeds Grade 1 standards, making it ideal for high-traffic restrooms, classrooms, or rooms requiring additional privacy.

The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces.

  • Provides maximum resistance to vandalism and other malicious attacks
  • Certified above & beyond testing to withstand high volume traffic
  • Independent return springs enable the lock to exceed ANSI/ BHMA A156.2 Grade 1 cycle requirements without lever sag

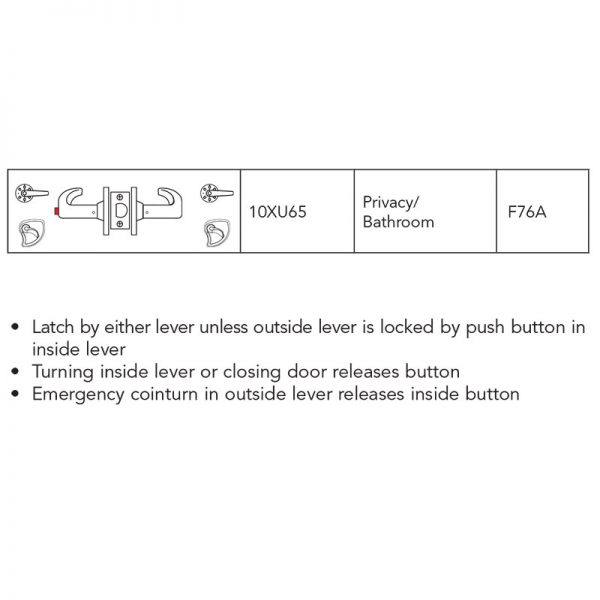

ANSI F76A Privacy

  • Latch by either lever unless outside lever is locked by push button in inside lever
  • Turning inside lever or closing door releases button
  • Emergency cointurn in outside lever releases inside button

Indicator Option Codes
10X Line indicator option codes are designed to convey color and side of door desired in one simple code. To order, specify option code.

  • V30: Single Indicator Outside (Icons Only: Green/Red)
  • V33: Double Indicator (Icons Only: Green/Red Outside – Green/Red Inside)
  • V60: Single Indicator Outside (Icons Only: White/Red)
  • V66: Double Indicator (Icons Only: White/Red Outside – White/Red Inside)

Applications

  • Heavy-duty commercial and institutional interior and exterior doors
  • Offices
  • Schools/Universities
  • Hospitals
  • Manufacturing facilities

codes

Brand

Finishes

BSP Black Suede Powder Coat, US10BE (613e) Dark Oxidized Satin Bronze, Equivalent, US26D (626) Satin Chrome

Indicator Option Code

V30 Single Indicator Outside (Green/Red), V33 Double Indicator (Green/Red Outside – Green/Red Inside), V60 Single Indicator Outside (White/Red), V66 Double Indicator (White/Red Outside – White/Red Inside)

Lock Function

Privacy with Indicator

Usage

Heavy Duty

ANSI/BHMA Standard

Certified ANSI A156.2 Series 4000 — Grade 1

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

Fire Rated – UL10C – Positive Pressure

Backset

2-3/4"

Lever Design

L

Rose Design

VSL

Strike

808 Curved Lip ANSI Strike, 4-7/8" x 1-1/4"

Latch

Stainless Steel Unguarded/Plain Latch, 1/2" throw – 1-1/8" x 2-1/4" face

Handing

Non-Handed

Door Thickness

1-3/4"

Minimum Stile Width

4-1/2"

Warranty

10 Year Limited

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
