Schlage B560P Single Cylinder Deadbolt with OS-OCC (OCCUPIED/VACANT) Outside Occupancy Indicator

Usually Ships: 1-2 Business Days
  • Key cylinder and occupancy indicator outside x inside turn
  • Outside indicator displays “Occupied” or “Vacant”
  • ADA compliant thumbturn

Available Options:

Clear

Schlage B560P Grade-2 Single Cylinder Deadbolt OS-OCC (OCCUPIED/VACANT) Outside Occupancy Indicator Trim, Adjustable 2-3/8″ and 2-3/4″ Backset, C Keyway

Top-selling Schlage Grade 2 B Series deadbolts rival many competitive Grade 1 products for strength, durability, and versatility. These mid-price point deadbolts are offered in 10 finishes. Their design includes anti-saw, anti-pry, anti-wrench, and other security features not common to Grade 2 deadbolts. They are easy to install and can meet any security need.

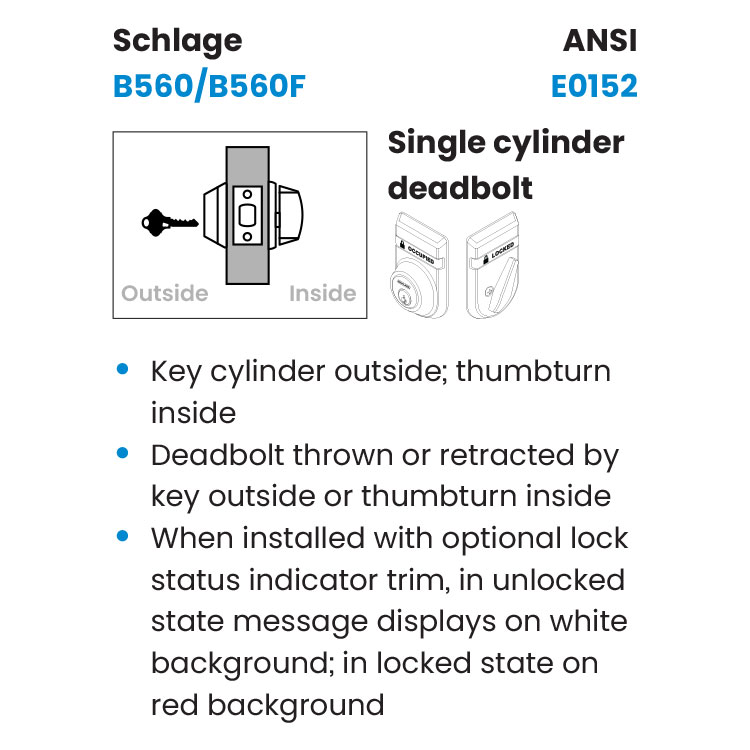

ANSI E0152 – Key cylinder outside; thumbturn inside • Deadbolt thrown or retracted by key outside or thumbturn inside • When installed with lock status indicator trim, in unlocked state message displays on white background; in locked state on red background

  • Outside indicator displays “Occupied” or “Vacant”
  • Window size is unmatched in the market using an escutcheon style trim to allow the message to run the full width of the lock at a height of .45” for maximum visibility
  • ADA compliant thumbturn
  • 2-3/8″ to 2-3/4″ Adjustable Backset (1-1/8″ x 2-1/4″ latch face)
  • Quick, easy installation – Adjustable backset locks into place
  • Anti-pry shield protects latch from attacks
  • Metal dust box provides deep anchoring and added strength
  • Primary or auxiliary locking for commercial buildings
  • High security locking for residential buildings
  • Can be suited with virtually all Schlage levers and knobs
  • Can be installed using the same standard door prep as any B Series lock
  • 3-year limited mechanical warranty
Brand

Finishes

605 Bright Brass, 606 Satin Brass, 609 Antique Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 626AM Satin Chrome Antimicrobial, 643e Aged Bronze

Deadbolt Type

Single Cylinder, Indicator

ANSI/BHMA Standard

ANSI A156.36, Grade 2

ANSI Function

E0152

Usage

Medium Duty

Cylinder & Keys

5-pin or 6-pin conventional, keyed different, with 2 keys

Keyway

Schlage C Keyway

Backset

2-3/8" to 2-3/4" Adjustable

Strike

1-1/8” x 2-3/4“ square corner

Bolt

1" throw bolt, 1-1/8" x 2-1/4" square corner face plate

Door Thickness

1-3/4" to 1-7/8”

Fire Rating

None

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
