Accentra (Formerly Yale) YPL02 Heavy-Duty Cylindrical Indicator Lever Lock, Privacy Function

Usually Ships: 1-2 Business Days
  • Heavy-Duty, BHMA/ANSI Grade-1 certified
  • Ideal for high-use commercial restroom doors
  • One of the only cylindrical indicator locks on the market

Available Options:

Clear

Accentra (formerly Yale) YPL Series Grade-1 Cylindrical Indicator Lock, 02 Privacy Function, AU (Augusta) Lever

The cylindrical lock indicator visually displays door status; whether the door is locked or unlocked, thus eliminating potentially embarrassing situations and providing peace of mind.

YPL02 locks are provided standard with a visual display that shows red with a closed shackle padlock for locked and green with an open shackle padlock for unlocked. The padlock icons are positioned in a manner that allows for the locks to be non-handed.

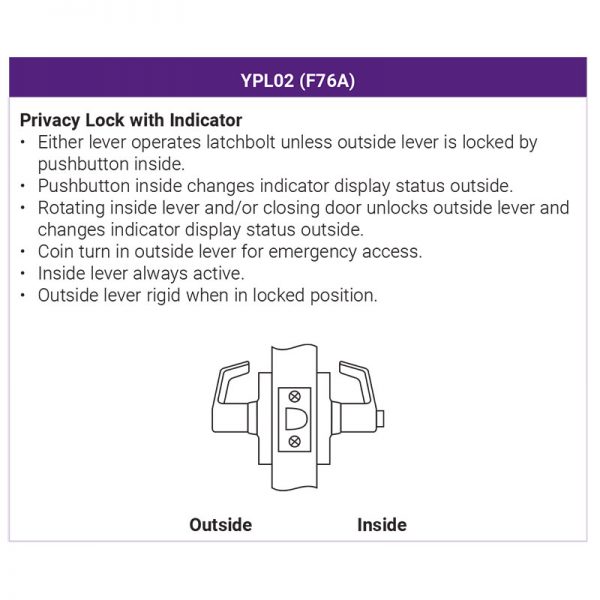

YPL02 (F76A) Privacy Lock with Indicator: Either lever operates latchbolt unless outside lever is locked by pushbutton inside. Pushbutton inside changes indicator display status outside. Rotating inside lever and/or closing door unlocks outside lever and changes indicator display status outside. Coin turn in outside lever for emergency access. Inside lever always active. Outside lever rigid when in locked position.

Features

  • Red or Green window display with padlock icon for visual door status
  • Cylindrical lock construction for durability and longevity in high-use applications (not the less durable tubular design of other indicator locks)
  • Privacy function (F76A) with push button lock and for automatic unlock when inside lever is pushed down
  • Using a standard bored lock door prep, this indicator lock is ideal for new construction or retrofit applications
  • One motion for egress
  • Coin turn for emergency access
  • Through-bolted for robust operation
  • Lever returns to within 1/2″ of door face
  • UL Listed for 3 hour fire doors
  • ADA compliant lever
  • Patent pending
  • 2-3/4″ backset latch supplied standard with all YPL02 locksets (see part number 378PL for 2-3/8″ backset)
  • The YPL02 installs on 1-3/4″ thick doors standard. It can also be used on 1-3/8″ thick doors by adding adapter plates. See adapter plate kit model number APK-2.

Applications

  • Office buildings
  • Restaurants
  • Schools
  • Hospitals
  • Warehouses
  • Airports
  • Places of Worship
  • Convenience Stores
  • Gas Stations
  • Travel Centers

YPL-Codes

Brand

Finishes

605 Bright Brass, 613e Dark Oxidized Satin Bronze equivalent, 626 Satin Chrome, BSP Black Suede Powder Coat

Lock Function

Privacy w/ Indicator

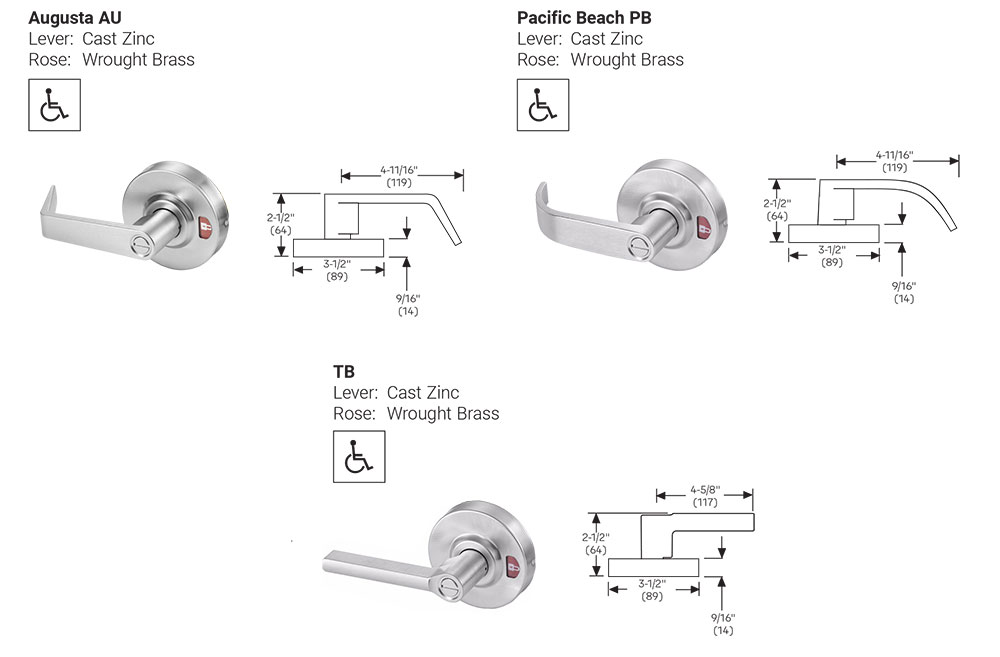

Lever Design

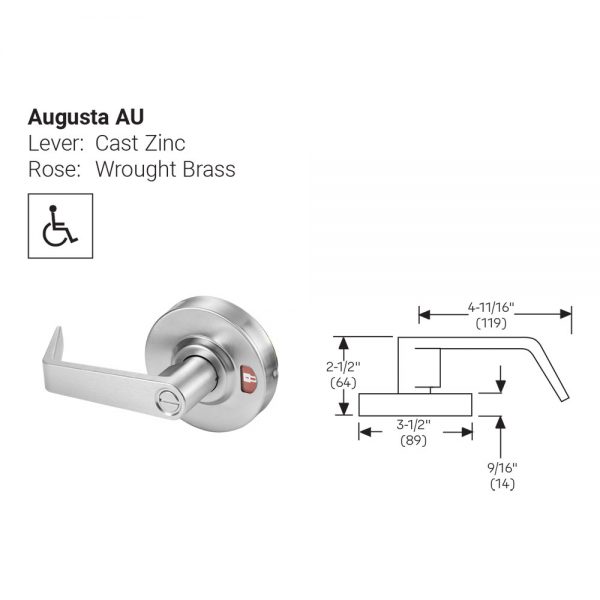

AU (Augusta)

Construction

Cylindrical lock construction for durability and longevity in high-use applications

Usage

Heavy Duty

ANSI/BHMA Standard

Certified Grade 1, ANSI/BHMA A156.2, Series 4000

Fire Rating

UL Listed for 3 hour fire doors

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

CA Fire Code

All levers with a return to door of 1/2" or less comply

Backset

2-3/4"

Latchbolt

Plain, 2-3/4" backset x 1-1/8" square corner front with 1/2" throw standard

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Handing

Completely Reversible

Door Applications

Metal or Wood Doors

Door Thickness

1-3/4"

Door Prep

ANSI/BHMA A156.115

Warranty

3 Year
