Schlage B662P Double Cylinder Deadbolt with OS-LOC/IS-LOC Dual-Sided Occupancy Indicators

Usually Ships: 20-30 Business Days
  • Double cylinder deadbolt (key on both sides)
  • Outside indicator displays “Locked” or “Unlocked”
  • Inside indicator displays “Locked” or “Unlocked”

Available Options:
Clear

Product Overview

Schlage B662P Grade-1 Double Cylinder Deadbolt with Dual-Sided Messaging – OS-LOC (LOCKED/UNLOCKED) Outside Occupancy Indicator Trim and IS-LOC (LOCKED/UNLOCKED) Inside Occupancy Indicator Trim, 2-3/4″ Backset

Schlage® commercial grade 1 deadbolts are designed for security, durability and beauty. They feature a thick, anti-saw hardened steel bolt with anti-pry, anti-wrench and other protections to make it one tough lock. Lock status indicator trim features Schlage’s patented 180-degree visibility. The large window size and red/white background messaging assures easy readability for even the color blind.

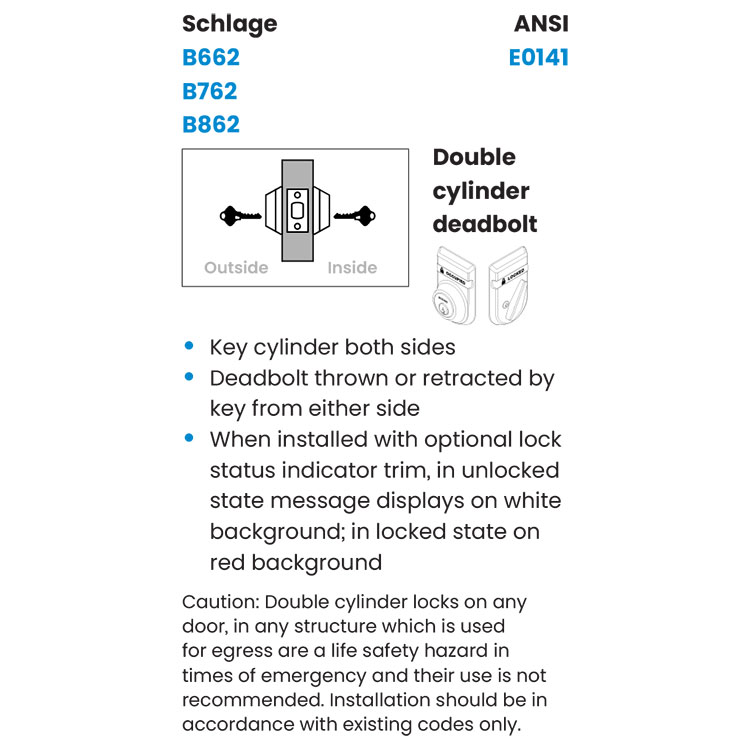

ANSI E0141 – Key cylinder both sides • Deadbolt thrown or retracted by key from either side • When installed with optional lock status indicator trim, in unlocked state message displays on white background; in locked state on red background

Caution: Double cylinder locks on any door, in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.

  • The only OEM Grade 1, keyed deadbolt indication option
  • Outside indicator displays “Locked” or “Unlocked”
  • Inside indicator displays “Locked” or “Unlocked”
  • Window size is unmatched in the market using an escutcheon style trim to allow the message to run the full width of the lock at a height of .45” for maximum visibility
  • ADA compliant thumbturn
  • Can be suited with virtually all Schlage levers and knobs
  • ANSI/BHMA A156.36-2020, Grade 1
  • UL listed, fire-rated up to 3 hours
  • 3-year limited mechanical warranty
Brand

Finishes

605 Bright Brass, 606 Satin Brass, 609 Antique Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 643e Aged Bronze
Deadbolt Type

Double Cylinder, Indicator
ANSI/BHMA Standard

ANSI/BHMA A156.36-2020, Grade 1
ANSI Function

E0141
Usage

Heavy Duty
Cylinder & Keys

5-pin or 6-pin conventional, keyed different, with 2 keys
Keyway

Schlage C Keyway, Schlage S123 Keyway
Backset

2-3/4"
Strike

1-1/8” x 2-3/4“ square corner
Bolt

1" throw bolt, 1-1/8" x 2-1/4" square corner face plate
Door Thickness

1-3/4" to 2"
Fire Rating

UL 10C listed for 3-hour fire door
Buy American Act Compliance

Meets BAA – Buy American Act
