Product Overview

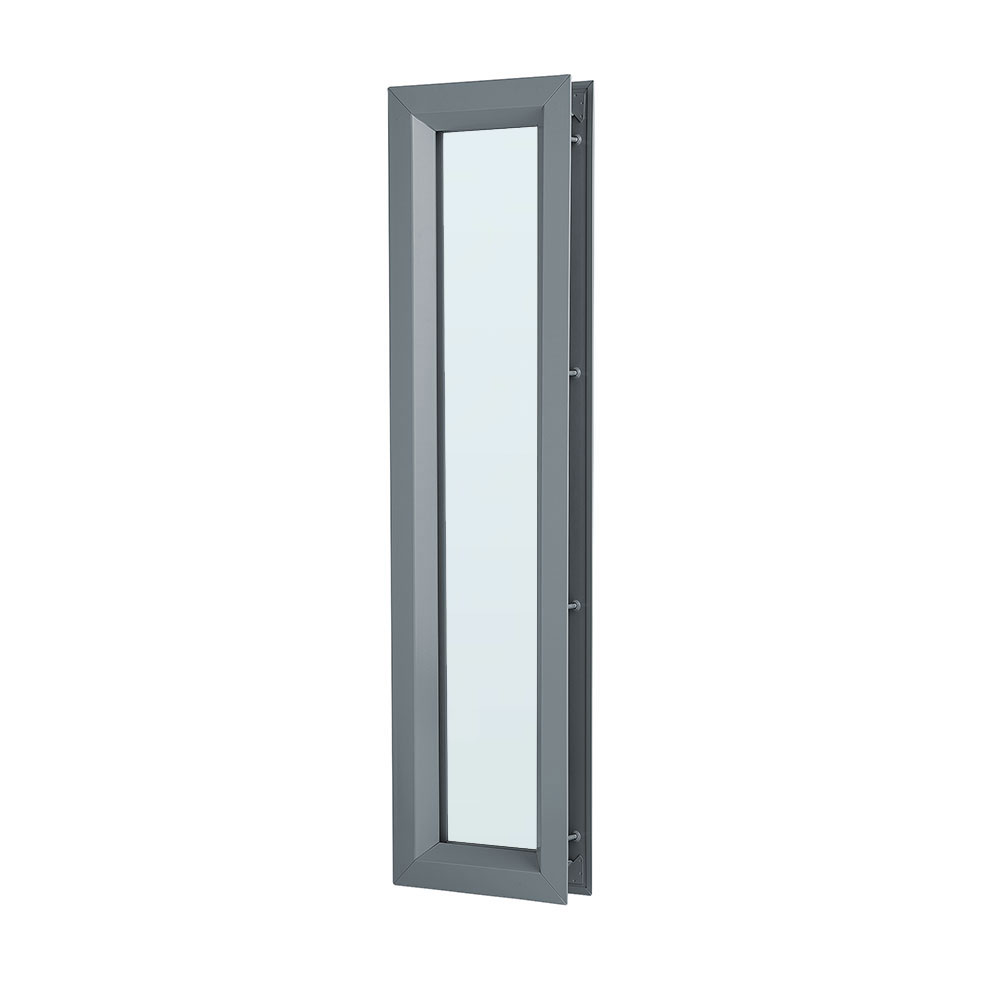

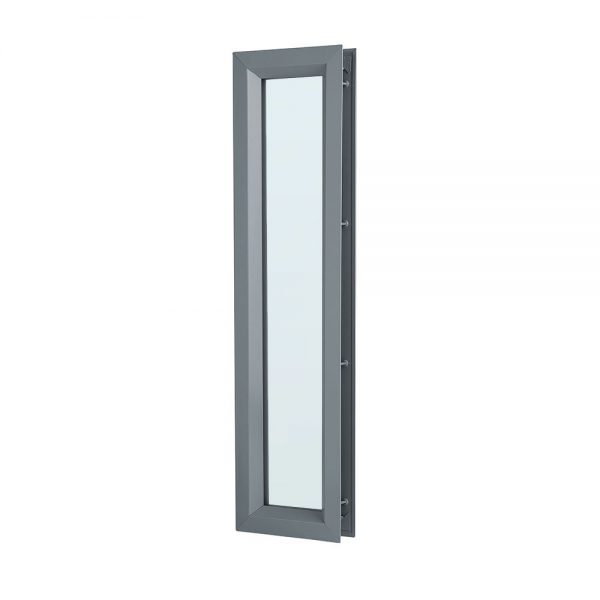

Rockwood LT-B1 TEMP Complete Lite Kit Pack – Beveled Lite Frame, 1/4″ Clear TEMP20 and Glazing Tape – for 1-3/4″ Thick Doors
The lite kits install without drilling holes through the door for quick installation. The hemmed design is a flush-mounted assembly and is ideal for clean environments.
- Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
- Includes TEMP20 – a clear fire-rated and impact-safety-rated tempered glass for 20-minute fire doors
- Closed-cell glazing tape included with every kit
- Frame is embossed with UL Label
- Glass is permanently etched with fire and impact safety classification
- Glass certified by QAI to ANSI/UL10B, ANSI/UL10C
- This glass is cut to size then heat treated (tempered) to achieve its safety rating properties
- Meets NFPA 80 requirements for certification and labeling
- 20 gauge galvannealed steel frame
Classified and labeled by QAI Laboratories. All fire tests performed in accordance with UL 10C (positive pressure, without hose stream) NFPA 252, NFPA 80. All listing information is subject to change.
Note: Per NFPA 80 (National Fire Protection Association), field cutting of doors for vision panels or enlarging existing cutouts for vision panels are considered to be a field modification that is NOT allowed.
All lite kits are carefully packaged to ensure safe delivery. Due to the weight and/or fragile nature of this product, a handling/package fee will be added upon checkout. The fee varies depending on the shipping destination. See our shipping info page for more details.
Brand | |
---|---|
Finishes | Beige Powder Coat, BSP Black Suede Powder Coat, Dark Bronze Duranodic Powder Coat, Gray Primer Powder Coat, WSP White Suede Powder Coat |
Frame Construction | 20 Gauge Galvannealed Steel |
Frame Fire-Rating | Classified in accordance with UBC code standard 7-2 for positive pressure, 90 Minute Fire Rating |
Frame Fasteners | #8 x 1-3/4" Phillips head SMS |
Glass Type | Clear Fire-Rated Glass, Clear Tempered Glass |
Glass Appearance | Clear |
Glass Light Transmission | Approx. 86% |
Glass Thickness | 1/4" |
Glass Fire-Rating | 20 Minutes – Certified by QAI Laboratories |
Glass Impact Safety Rating | ANSI Z97.1, Class A; and CPSC 16 CFR 1201 Category II |
Door Thickness | 1-3/4" |
Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
