Air Louvers VSL Slimline Vision Lite Kit PAK with 3/16″ Clear PYRAN® Platinum F, 90 to 180 Minute Fire-Rated Safety Glass

Usually Ships: 2-3 Days
  • Complete Lite Kit = Frame, Glass & Glazing Tape
  • ‘Clear’ Pyran® Platinum F Ceramic Glass – *Fire-Rated up to 3 Hours
  • For 1-3/4″ thick fire-rated metal or wood doors

Available Options:

  • Black (BK)
  • Gray (G)
  • Mineral Bronze (B)
  • White (W)
Clear

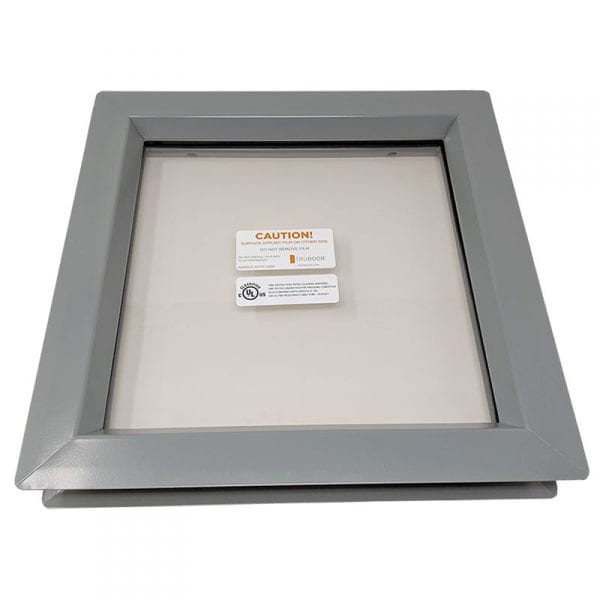

Vision lite frame with Schott PYRAN® Platinum F fire-protection-rated and impact-safety-rated glass

Pyran Platinum F is a glazing material made from a transparent glass-ceramic with a thickness of 3/16” (5 mm). It has a surface applied safety film and is intended for use in safety-rated locations and high traffic areas requiring fire-rated glazing that have fire-rating requirements for up to 3 hours. It’s perfect for commercial, industrial, or institutional applications including schools and hospitals.

  • Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
  • Includes Premium Pyran® Platinum F – Premium-Grade Fire-Rated Ceramic Glass – Transparent and Wireless – Surface-Applied Safety Film
  • Glass is permanently etched with UL Classification
  • Closed-cell glazing tape included with every kit
  • Frame is embossed with UL Label

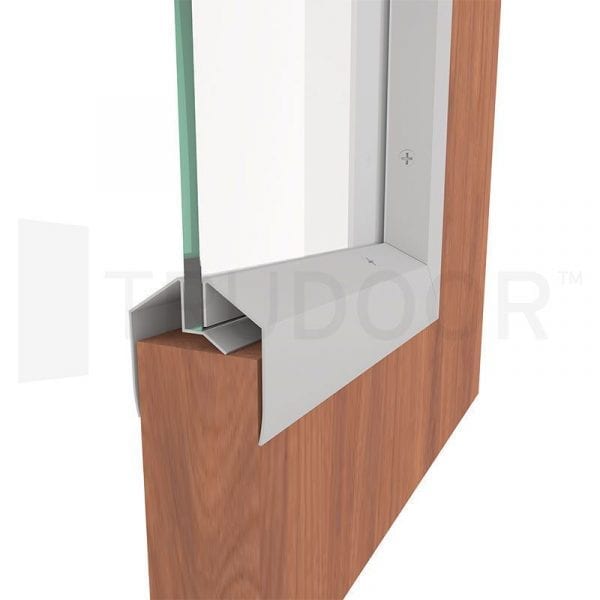

  • 1-1/4″ trim with radius corners, mitered and welded
  • Continuous glass retainer, countersunk mounting holes in the bevel on the non-corridor side.





*Sizes Etched with 90 Minute UL Label: 8″ x 32″, 8″ x 36″, 18″ x 18″, 18″ x 24″, 18″ x 30″, 18″ x 32″, 24″ x 24″, 24″ x 30″, 24″ x 32″, 24″x 36″, 24″ x 56″

*Sizes Etched with 180 Minute Label: 12″ x 12″, 5″ x 35″, 6″ x 27″, 7″ x 22″, 8″ x 18″

*Please refer to IBC code Chapter 7 (International Building Code) for fire-rated glass requirements and limitations. Door frame, door, and hardware must also be fire-rated. Fire-rating requirements must match the glazing requirements in order for the assembly to fully meet code requirements. Please refer to the manufacturers’ specifications. Please Consult with your door and frame manufacturer’s procedures, for their maximum glass size tested. Interpretation of building and fire codes may vary. Consult with the local authority having jurisdiction to determine appropriate standards in your area. Trudoor assumes no liability or responsibility for any damage to person or property resulting from or incident to the use of the products that we provide. Trudoor assumes no liability or responsibility for misspecified and/or misordered materials. Glass is cut to order and non-returnable or refundable.

Note: Per NFPA 80 (National Fire Protection Association), field cutting of doors for vision panels or enlarging existing cutouts for vision panels is considered to be a field modification that is NOT allowed.

Trudoor is certified by UL to cut, re-certify and label fire-rated glazing materials. Our facility undergoes routine inspections to verify that modifications are done in compliance with the requirements of the UL specification listings. All material is tested in accordance with NFPA codes and standards. UL file number: R39507

PYRAN® is a registered trademark of SCHOTT AG

VSL vision lite frame cross-reference models: Advantage 784G, Anemostat Lo Pro, Cal-Royal SVL, National Guard L-FRA100, Rockwood/Pemko LT-B1

Glass is cut to order and non-returnable or refundable.

Call 1-844-TRUDOOR (844-878-3667) for custom sizes and info on volume discounts

All lite kits are carefully packaged to ensure safe delivery. Due to the weight and/or fragile nature of this product, a handling/package fee will be added upon checkout. The fee varies depending on the shipping destination. See our shipping info page for more details.

Brand

Order Size

5" x 35", 6" x 27", 7" x 22", 8" x 18", 8" x 32", 8" x 36", 12" x 12", 18" x 18", 18" x 24", 18" x 30", 18" x 32", 24" x 24", 24" x 30", 24" x 32", 24" x 36", 24" x 56"

Finishes

Black, Gray, Mineral Bronze, White

Glass Type

Glass Thickness

3/16"

Glass Weight

2. 6 lbs/ft

Glass Light Transmission

Approx. 80%

Glass Appearance

Clear, Free of Amber Tint

Glass Impact Safety Rating

ANSI Z97.1 and CPSC 16CFR1201 CAT II

Glass Fire-Rating

20 to 180 Minutes with Hose Stream – UL Listed

Glass Approvals

UL 9, UL 10B, UL 10C, NFPA 80, NFPA 252, NFPA 257, ASTM E2074, ASTM E2010-01, CPSC ANSI Z97.1, ULC CAN4-S104 ,ULC CAN4-S106

Frame Fire-Rating

3 Hour – Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure – WHI Listed

Frame Profile

Low

Frame Construction

20 Gauge Cold Rolled Steel

Frame Fasteners

#8 x 1" Flathead Phillips SMS – Included

Glass Fabricated

Trudoor – Phoenix, AZ – USA

Door Thickness

1-3/4"

Part Number

VSL-PPF-PAK
