Product Overview

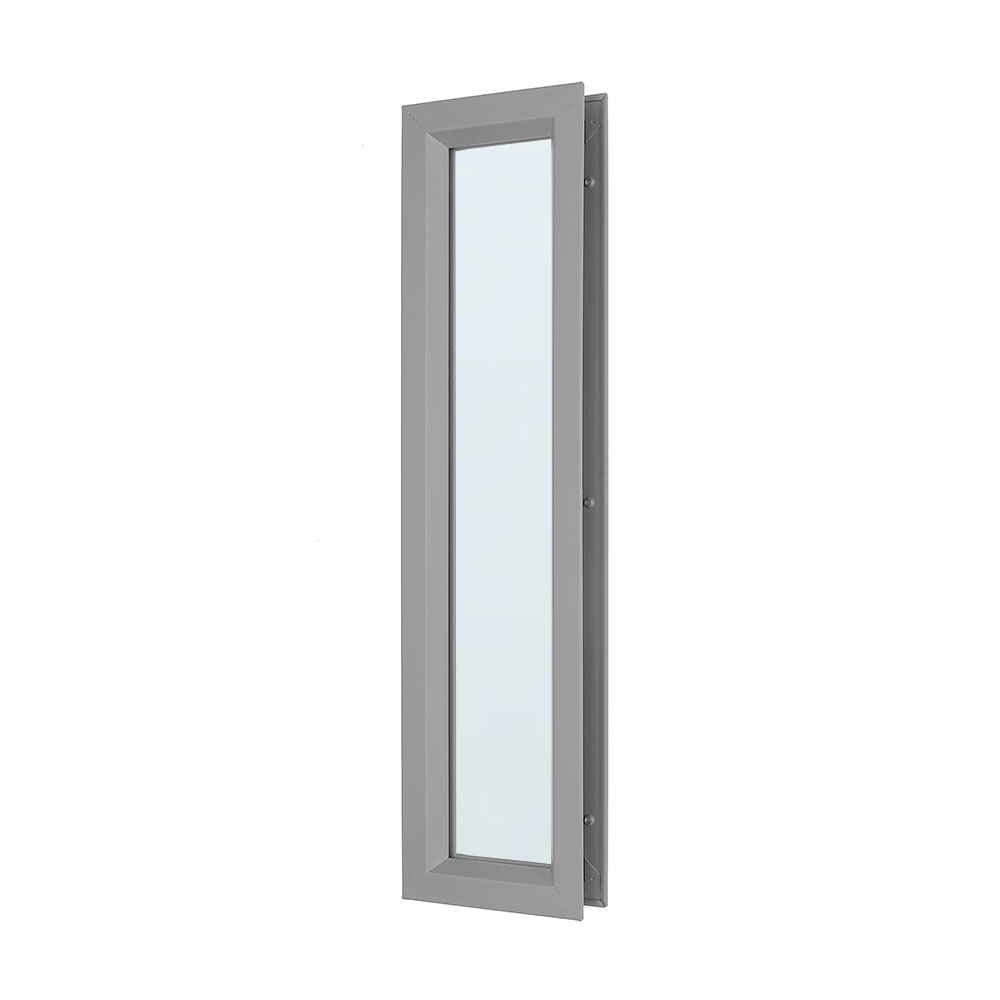

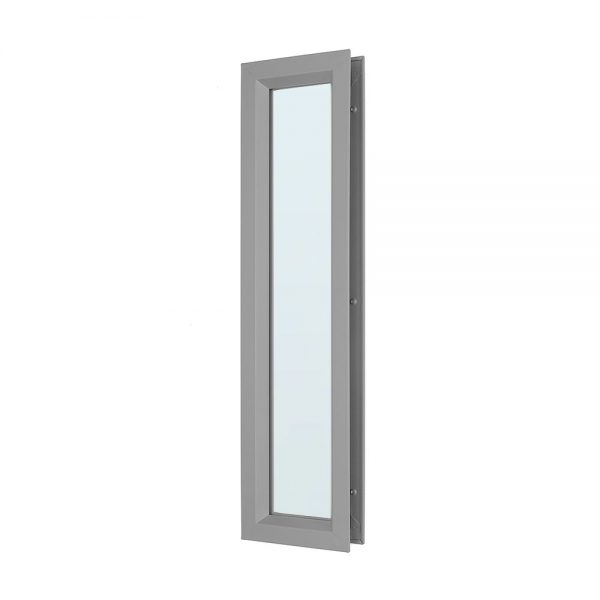

National Guard Products L-FRA100 Low Profile Lite Kit for 1-3/4″ Thick Doors with 1/4″ Tempered Glass and GT-118 Glazing Tape
- Mitered and welded corners with countersunk mounting holes
- Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
- Includes 1/4″ Clear Tempered – CAT II Impact-Rated (Safety Glass) – Heat-treated clear safety glass that breaks into small particles
- Tempered Glass – Four Times Stronger Than Annealed Glass
Tempered glass is recommended for all non-fire-rated doors
Custom features at additional cost and lead time (3-4 Weeks):
- Custom sizes: Minimum 3″ width or height; maximum 88″ width or height
- Special powder coat colors: (Gloss Black, Walnut Brown (matches Timely Browntone) and Magnolia White (matches Timely Western White)
- Galvanneal or Aluminum Material
Call us at 1-844-878-3667 to order custom vision lite frames
All lite kits are carefully packaged to ensure safe delivery. Due to the weight and/or fragile nature of this product, a handling/package fee will be added upon checkout. The fee varies depending on the shipping destination. See our shipping info page for more details.
| Brand | |
|---|---|
| Finishes | ASL – Aluminum Silver, B – Brass, BPR – Beige Primer, T – Tan, DKB – Dark Bronze, GPZ – Gray Primer, MBL – Matte Black, W – White |
| Order Size | 5" x 35", 6" x 27", 7" x 22", 8" x 18", 8" x 32", 8" x 36", 12" x 12", 18" x 18", 18" x 30", 18" x 32", 18" x 60", 18" x 64", 24" x 24", 24" x 30", 24" x 32", 24" x 36", 24" x 56", 24" x 60", 24" x 64", 24" x 72" |
| Frame Profile | Low |
| Frame Construction | 18 Gauge Cold Rolled Steel |
| Frame Fasteners | #8 x 1" Flathead Phillips SMS – Included |
| Glass Type | Clear Tempered Glass |
| Glass Thickness | 1/4" |
| Glass Appearance | Clear |
| Glass Impact Safety Rating | ANSI Z97.1, Class A; and CPSC 16 CFR 1201 Category II |
| Glass Light Transmission | Approx. 86% |
| Glass Fire-Rating | None |
| Door Thickness | 1-3/4" |
| Part Number | L-FRA100-TG-GT-118-GPZ |
