Air Louvers Slimline Vision Lite Kit PAK with 1/4″ Clear Tempered Safety Glass

Usually Ships: 3-5 Business Days
  • Complete Lite Kit = Frame, Glass & Glazing Tape
  • Includes clear impact-rated safety glass
  • For 1-3/4″ thick steel or wood doors

Available Options:

Activar Air Louvers VSL/VSHL TEMP PAK Complete Lite Kit Pack – Steel Vision Lite Frame, Clear Tempered Safety Glass, and Glazing Tape – for 1-3/4″ thick metal and wood doors

NOTE: The VSLH (generation 2) model replaced the VSL on August 1, 2024 – Orders may be fulfilled with either model until 2025 (if more than one frame is ordered, you will receive the same model)

Fully tempered glass is four times stronger than annealed glass and is considered a safety glazing material. The strength imparted in the tempering process dramatically increases the ability of fully tempered glass to resist bending forces.

Tempered glass is recommended for all non-fire-rated doors

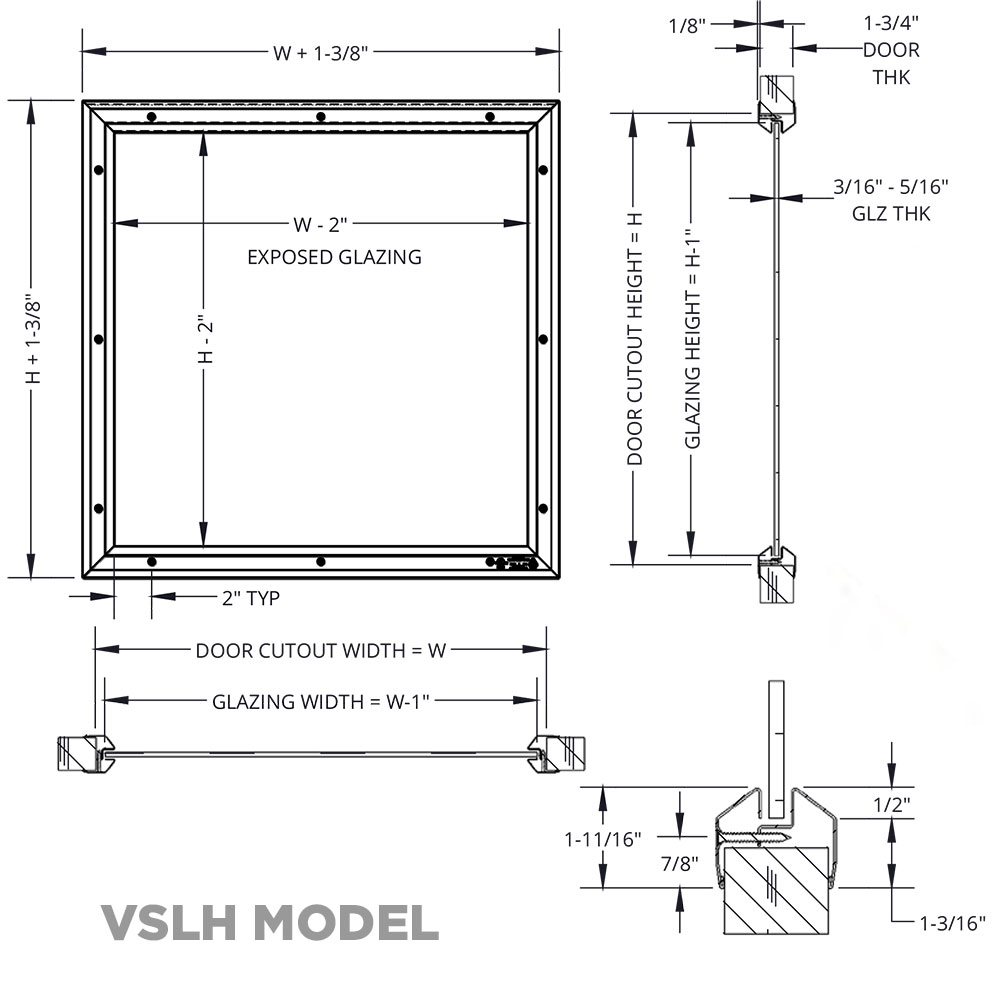

  • Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
  • Includes 1/4″ thick clear tempered CAT II impact-rated glass (heat-treated safety glass that breaks into small particles)
  • Includes glazing tape

VSL/VSLH vision lite frame cross-reference models: Advantage 784G, Anemostat Lo Pro, Cal-Royal SVL, National Guard L-FRA100, Rockwood/Pemko LT-B1

Call 1-844-TRUDOOR (844-878-3667) for custom sizes and colors and info on volume discounts

All lite kits are carefully packaged to ensure safe delivery. Due to the weight and/or fragile nature of this product, a handling/package fee will be added upon checkout. The fee varies depending on the shipping destination. See our shipping info page for more details.

Brand

Finishes

Black (BK), Gray (G), Mineral Bronze (B), Silver (SI), White (W)

Order Size

5" x 35", 6" x 27", 6" x 30", 6" x 56", 6" x 60", 7" x 22", 8" x 18", 8" x 30", 8" x 32", 8" x 36", 12" x 12", 18" x 18", 18" x 24", 18" x 30", 18" x 32", 18" x 56", 18" x 60", 18" x 64", 24" x 24", 24" x 30", 24" x 32", 24" x 36", 24" x 56", 24" x 60", 24" x 64", 24" x 72"

Frame Profile

Low

Frame Construction

20 Gauge Cold Rolled Steel

Frame Fasteners

#8 x 1" Flathead Phillips SMS – Included

Glass Type

Clear Tempered Glass

Glass Thickness

1/4"

Glass Fire-Rating

None

Glass Appearance

Clear

Glass Light Transmission

Approx. 86%

Glass Approvals

ANSI Z97.1, Class A; and CPSC 16 CFR 1201 Category II

Door Thickness

1-3/4"

Part Number

VSL/VSLH-TEMP-PAK

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
