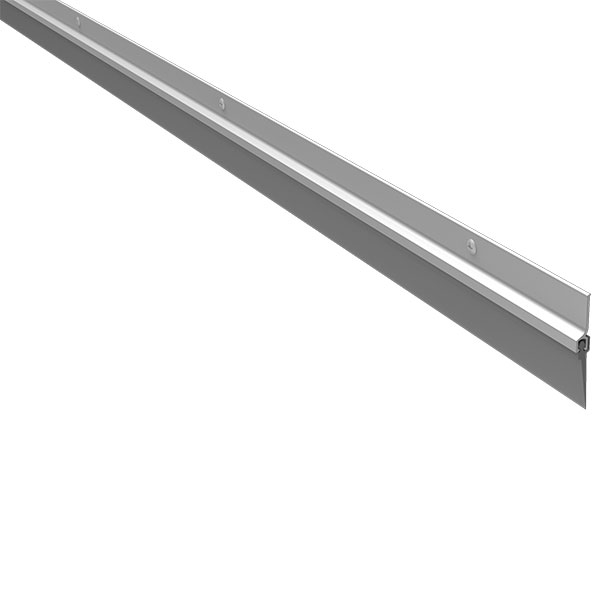

Pemko 307_V Door Bottom Sweep with Eco-V Vinyl Insert

Usually Ships: 1-2 Business Days
  • Economical vinyl door sweep
  • Seals against smoke, fire, air, sound, and weather
  • Fire-rated and smoke tested

Available Options:

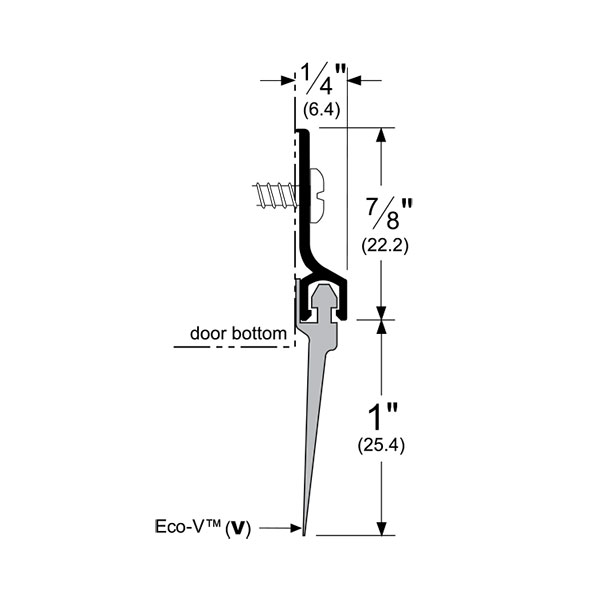

Pemko 307_V Surface Plate Door Bottom Sweep with 1” Eco-V Insert

The 307 Series Surface Plate Rubber Door Sweep is designed to insulate and prevent infiltration of moisture, fire, smoke, sound, and light. This door sweep features an Eco-V (Vinyl) seal and is fire and smoke rated. It can be used to seal up to a 1″ gap between the door and threshold or floor surface. The sweep is surface mounted to the face of the door and comes with installation instructions and screws.

  • Slotted holes for easy adjustment
  • Recommended compression of gasket is 1/16″
  • Seal up to a 1″ the gap between the door and threshold or to the floor surface
  • Reduces the infiltration of light, air, wind, rain, and snow; prevent heat loss; and control the penetration of smoke and fumes


  • 307AV: A – Mill Finish Aluminum with Eco-V insert
  • 307BSPV: BSP – Black Suede Powder Coat with Eco-V insert
  • 307DV: D – Dark Bronze Anodized Aluminum with Eco-V insert


  • BHMA Certified
  •  Smoke Tested – UL1784
  •  Fire Rated – UL10C – Positive Pressure
  •  Underwriters Laboratory 4L10
  •  GREENGUARD Gold Certified



A – Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum, BSP Black Suede Powder Coat


36", 48"

Fire Rating

Fire Rated – UL10C – Positive Pressure
