Schlage ND98PD RHO (Rhodes) Vandlgard Classroom Security Lever Lock

Usually Ships: 1-2 Business Days
  • Extra Heavy Duty, ANSI Grade 1 Certified
  • Lock/Unlock Outside by Key on Either Side – Inside Always Unlocked
  • ADA Compliant – 3-Hour Fire-Rated

Available Options:

Clear

Schlage ND98PD RHO Grade 1 Vandlgard Classroom Security Lock, Rhodes Lever, Standard Cylinder

Regarded as one of the world’s strongest cylindrical locksets, ND Series locks have been the most popular Schlage product ever since Walter Schlage invented the cylindrical lock in 1920. The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail, and other commercial applications. Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.

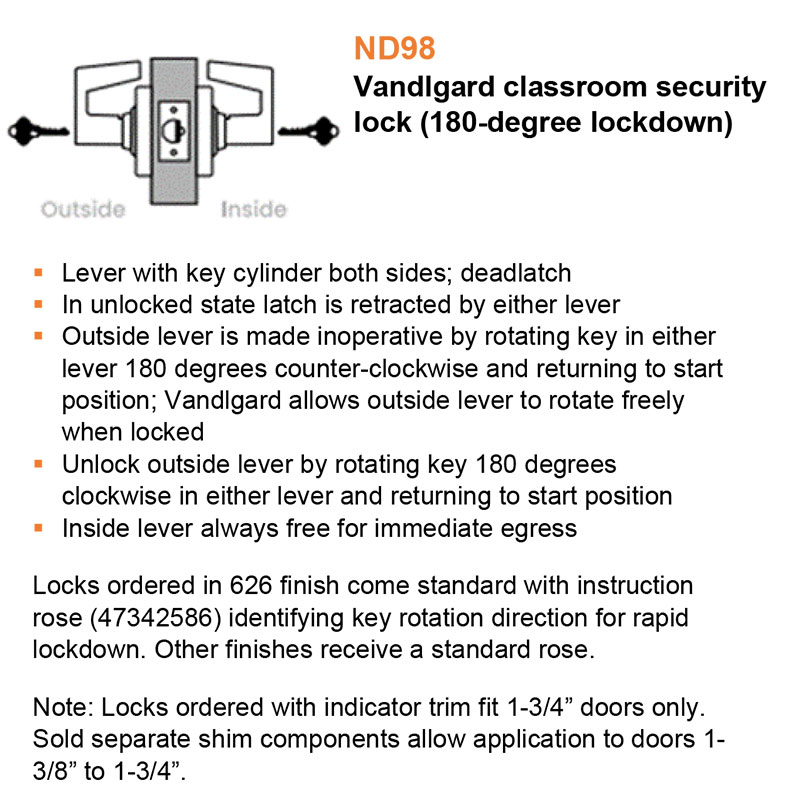

ND98 Vandlgard classroom security lock (180-degree lockdown): Lever with key cylinder both sides; deadlatch. In unlocked state latch is retracted by either lever. Outside lever is made inoperative by rotating key in either lever 180 degrees counter-clockwise and returning to start position; Vandlgard allows outside lever to rotate freely when locked. Unlock outside lever by rotating key 180 degrees clockwise in either lever and returning to start position. Inside lever always free for immediate egress

Locks ordered in 626 finish come standard with instruction rose (47342586) identifying key rotation direction for rapid lockdown. Other finishes receive a standard rose.

Vandlgard™ trim is specifically designed for highly abusive environments. The outside lever rotates freely up and down when locked, limiting the ability of vandals to apply excessive force to the chassis.

  • ND classroom security function comes standard with an indicator rose that clearly identify key rotation direction for rapid lockdown
  • Significantly exceeds ANSI/BHMA Grade 1 requirements
  • Withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks
  • Not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles
  • The strongest cylindrical lock Schlage has ever built

Brand

Finishes

626 Satin Chrome

Lock Function

Classroom Security

Keyway

Schlage C Keyway, Schlage S123 Keyway

Usage

Heavy Duty

ANSI/BHMA Standard

Meets and Exceeds ANSI/BHMA A156.2, Series 4000, Grade 1

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

UL/cUL listed up to 3 Hours (A Label) – UL symbol on the latch front

Handing

Non-Handed

Cylinder & Keys

6-pin conventional, keyed different, with 2 keys

Backset

2-3/4"

Latch

1/2” throw, deadlocking – 1-1/8" x 2-1/4" face

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Lever Design

RHO (Rhodes)

Door Thickness

1-3/4"

Warranty

10 Years

Schlage_ND_Series_Standard_Installation_Instructions Schlage_ND_Series_Timing_Guide
