Pemko 303_V (PG) Standard Perimeter Gasketing Weatherstrip with Vinyl Insert

Usually Ships: 1-2 Business Days
  • Use on door frames to seal top and sides of door
  • Seals against smoke, fire, air, and weather
  • #6 x 5/8″ Pan head sheet metal screws furnished

Available Options:

Clear

Pemko 303_V (PG) Standard Perimeter Gasketing with Vinyl Insert

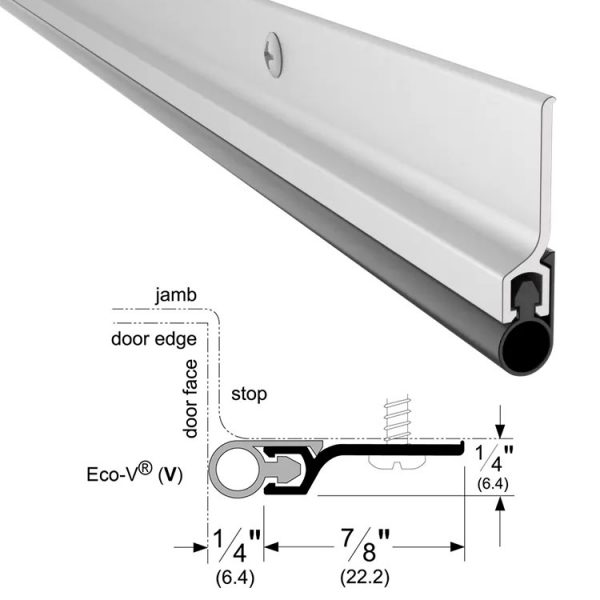

Designed to be applied to the “stop” perimeter of the door frame. Includes a vinyl seal with aluminum framing. The vinyl seal compresses against the door, to create a tight weatherproof seal.

Category J gaskets for use with listed steel frames and/or classified steel-covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic-covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes.

  • 6063-T6 Aluminum Alloy and Temper Retainer
  • This perimeter gasketing is supplied with an Eco-V® (“V”) insert
  • Stainless steel fasteners are standard
  • Available Sizes: 36″ x 84″ Set, *36″ x 96″, 48″ x 84″ Set, *48″ x 96″, 72″ x 84″ Set and *96″ Single Piece (add 3 for 96″ x 96″ Frame)
  • Full-Length; Field-Cut to Size

*excessive length shipping fee applies

Finishes

  • 303AV: A – Mill Finish Aluminum with Gray Eco-V insert
  • 303BSPV: BSP – Black Suede Powder Coat Aluminum with Black Eco-V insert
  • 303DV: D – Dark Bronze Anodized Aluminum with Black Eco-V insert
  •  303GV: G – Gold Anodized Aluminum with Black Eco-V insert
  • 303SNV: SN – Satin Nickel Anodized Aluminum with Black Eco-V insert
  • 303WSPV: WSP – White Suede Powder Coat Aluminum with White Eco-V insert

Ratings

  •  Air Infiltration Tested
  •  Fire Rated – UL10C – Positive Pressure
  •  Underwriters Laboratory 4L10
  •  GREENGUARD Gold Certified

Brand

Finishes

A – Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum, G – Gold Anodized Aluminum, BSP Black Suede Powder Coat, SN – Satin Nickel Anodized Aluminum, WSP White Suede Powder Coat

Size

36" x 84", 36" x 96", 48" x 84", 48" x 96", 72" x 84", 96"

Fire Rating

Fire Rated – UL10C – Positive Pressure

Gasket Type

Screw-on

Insert/Seal Type

Vinyl
