Pemko 171 Saddle Threshold – 5″ Wide x 1/2″ High

Usually Ships: 1-2 Days
  • 5″ Wide x 1/2″ High
  • Barrier-Free, ADA Compliant
  • Fire-Rated up to 3 Hours

Available Options:

  • Aluminum
  • Black
  • Dark Bronze
  • Gold
  • Satin Nickel
  • White
Clear

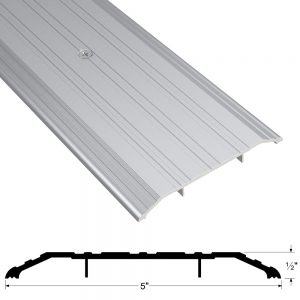

The Pemko 171_ fluted saddle threshold for commercial door openings is our most popular and top-selling threshold. Saddle thresholds are symmetrically shaped and designed to seal the area under a door while creating a more finished look for commercial applications.

  • MATERIAL: 6063-T6 Aluminum Alloy and Temper Retainer
  • WIDTH: 5” (127.0 mm)
  • HEIGHT: 1/2” (12.7 mm)
  • LENGTHS: 36″, 48″, 72″ and *96″

*excessive length shipping fee applies

Finishes

  • 171A: A – Mill Finish Aluminum
  • 171BSP: BSP – Black Suede Powder Coat Aluminum
  • 171D: D – Dark Bronze Anodized Aluminum
  • 171G: G – Gold Anodized Aluminum
  • 171SN: SN – Satin Nickel Anodized Aluminum
  • 171WSP: WSP – White Suede Powder Coat Aluminum

Ratings

  • Barrier-Free (ADA): Meets the requirements of ADAAG-2010 (Amended) and ANSI A117.1-2009 – Overall height is no greater than 1/2″
  • BHMA Certified: Tested for performance with regards to the requirements in ANSI/BHMA A156.21 – Thresholds
  • Fire Rated: Tested to UL10B Standard Fire Tests and UL10C Positive Pressure Fire Tests of Door Assemblies

pemko-ratings-threshold

Brand

Finishes

A – Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum, G – Gold Anodized Aluminum, BSP – Black Suede Powder Coat, SN – Satin Nickel Anodized Aluminum, WSP – White Suede Powder Coat

Length

36", 48", 72", 96"

Width

5"

Height

1/2"

ANSI/BHMA Standard

ANSI/BHMA A156.21

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

Up to 3 Hours with metal doors; 90 minutes with wood doors
