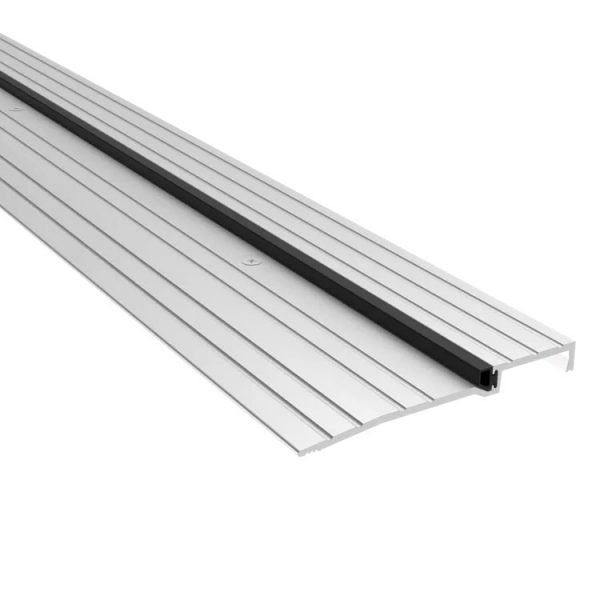

Pemko 2006STC_ Acoustic Latching Panic Saddle Threshold with Bumper Seal – 5″ Wide x 1/2″ High

Pemko 2006STC_ Acoustic Latching Panic Saddle Threshold w/ PemkoPrene Insert

The 2006 Series Rabbeted Latching Panic Saddle Threshold has a 5″ width and allows for a 3/8″ door clearance. It’s designed to protect against sound, air infiltration, wind, and debris and is compatible with surface-applied vertical rod exit devices, while also acting as a door stop and seal.

Reduces Sound Transmission for Quieter Spaces

Pemko Acoustic Thresholds assist with sound attenuation, helping to muffle the sounds that travel through a closed door. Acoustic thresholds are especially useful in areas where noise levels are different, such as a door from a factory to a conference room, or from a music classroom or theater to the hallway.

Pemko Acoustic Thresholds can help door assemblies meet ANSI Standard S12.60-2002, Acoustical Performance Criteria, Design Requirements, and Guidelines for Schools. This can help school projects earn LEED IEQ School Specific Credits for Enhanced Acoustical Performance.

Latching Panic thresholds are designed to work in conjunction with surface applied vertical rod exit devices. They are also used to provide a doorstop and seal at the bottom of the door.

• Acoustic, High Compression Seal Latch Track
• High compression seal for excellent sound control
• Low profile design meets ADA when installed butted to other flooring materials in accordance with ADA guidelines
• Proven to have excellent Acoustic performance

• 2006STC-A: A – Mill Finish Aluminum Aluminum with Black ThermoSeal insert
• 2006STC-BSP: BSP – Black Suede Powder Coat Aluminum with Black ThermoSeal insert
• 2006STC-D: D – Dark Bronze Aluminum with Black ThermoSeal insert

Ratings

• Air Infiltration Tested – Air infiltration tested in accordance with ASTM E283-04
• Sound Tested – Tested in accordance with ASTM E 90-2009. Standard. Tested to meet ANSI Standard S12.60-2010, Acoustical Performance Criteria
• 2006STC is only ADA compliant when installed butted to other flooring materials in accordance with ADA guidelines
• BHMA Certified
• Fire Rated – UL10C – Positive Pressure
• Underwriters Laboratory 4L10
• GREENGUARD Gold Certified

Warranty Info

Guaranteed for five (5) years against defects in material or workmanship, except: Powder Coated finishes are warranted for two (2) years; normal wear is not included in coverage.
