Pemko 2005AT Latching Panic Saddle Threshold – 5″ Wide x 1/2″ High – Mill Finish Aluminum

Usually Ships: 1-2 Days

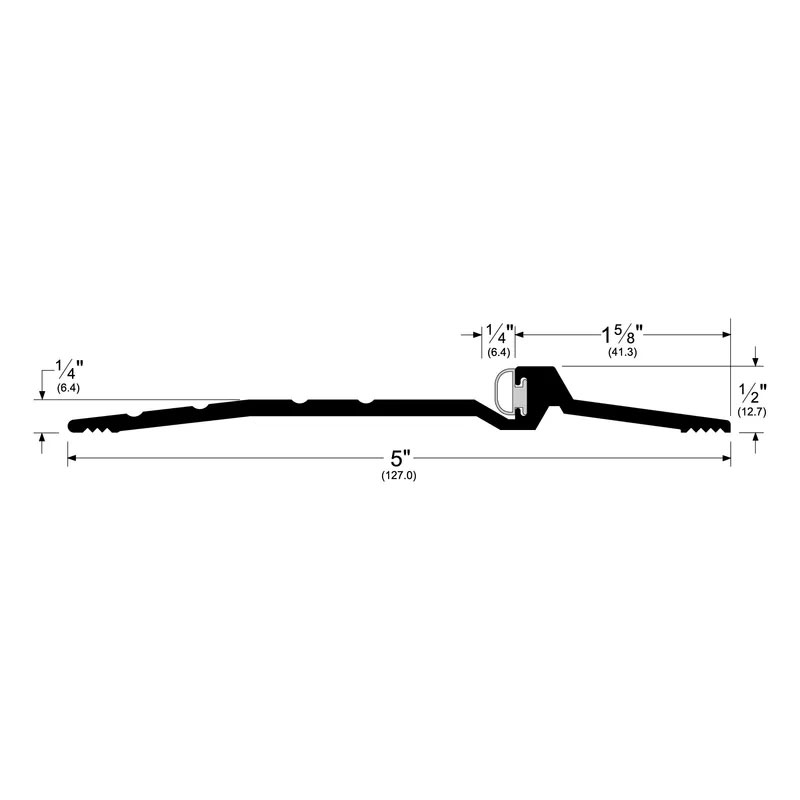

  • 5″Wide x 1/2″High
  • ADA compliant and fire-rated
  • ThermoSeal insert helps with acoustic performance

Available Options:

Clear

Latching Panic thresholds are designed to work in conjunction with surface applied vertical rod exit devices. They are also used to provide a doorstop and seal at the bottom of the door.

  • ThermoSeal insert helps with acoustic performance
  • Allow 3/8″ Door Clearance
  • Supplied predrilled, with #10-24 Phillips, flat head machine screws of appropriate length
  • TYPE: Latching Panic Exit Threshold
  • MATERIAL:6063-T6 Aluminum Alloy and Temper Retainer
  • WIDTH: 5” (127.0 mm)
  • HEIGHT: 1/2” (12.7 mm)
  • LENGTHS: 36″, 48″ and 72″

2005AT: A – Mill Finish Aluminum Aluminum with Black Thermo Seal insert

Ratings

  •  Air Infiltration Tested
  •  Sound Tested – ASTM E90
  •  Barrier-Free
  •  BHMA Certified
  •  Fire Rated – UL10C – Positive Pressure
  •  Underwriters Laboratory 4L10
  •  GREENGUARD Gold Certified

Brand

Finishes

A – Mill Finish Aluminum

Length

36", 48", 72"

Width

5"

Height

1/2"

ANSI/BHMA Standard

ANSI/BHMA A156.2

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

Up to 3 Hours with metal doors; 90 minutes with wood doors
