Product Overview

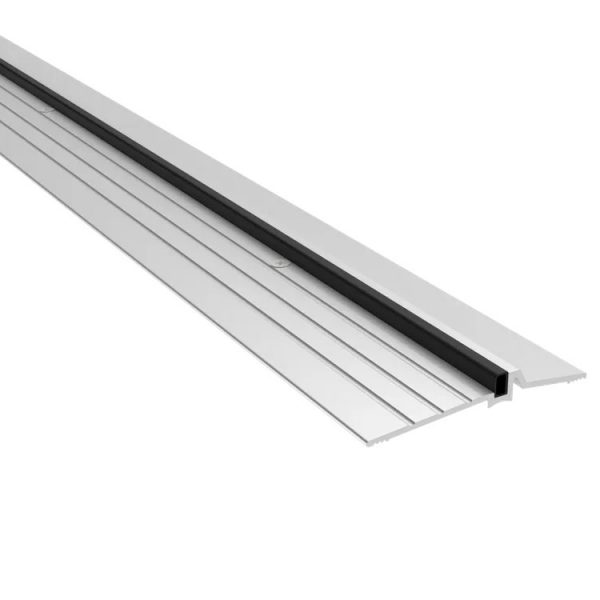

Pemko 2008_PK Acoustic Latching Panic Saddle Threshold with PemkoPrene Insert
The 2008_PK Latching Panic Saddle Threshold is designed with an integrated PemkoPrene gasket to effectively seal against sound, air infiltration, wind, and debris. It is specifically ideal for acoustic applications. The threshold features a high compression seal latch track and low-profile design, meeting ADA requirements. It is proven to have excellent acoustic performance and is available in a selection of Pemko STC Kits for easy weatherization.
Reduces Sound Transmission for Quieter Spaces
Pemko Acoustic Thresholds assist with sound attenuation, helping to muffle the sounds that travel through a closed door. Acoustic thresholds are especially useful in areas where noise levels are different, such as a door from a factory to a conference room, or from a music classroom or theater to the hallway.
Pemko Acoustic Thresholds can help door assemblies meet ANSI Standard S12.60-2002, Acoustical Performance Criteria, Design Requirements, and Guidelines for Schools. This can help school projects earn LEED IEQ School Specific Credits for Enhanced Acoustical Performance.
Latching Panic thresholds are designed to work in conjunction with surface applied vertical rod exit devices. They are also used to provide a doorstop and seal at the bottom of the door.
- Acoustic, High Compression Seal Latch Track
- High compression seal for excellent sound control
- Low profile design meets ADA
- Proven to have excellent Acoustic performance
- 2008APK: A – Mill Finish Aluminum Aluminum with Black PemkoPrene insert
- 2008BSPPK: BSP – Black Suede Powder Coat Aluminum with Black PemkoPrene insert
- 2008DPK: D – Dark Bronze Aluminum with Black PemkoPrene insert
Ratings
- Air Infiltration Tested – Air infiltration tested in accordance with ASTM E283-04
- Sound Tested – Tested in accordance with ASTM E 90-2009. Standard. Tested to meet ANSI Standard S12.60-2010, Acoustical Performance Criteria
- Barrier-Free -2008_PK meets the barrier-free requirements of ICC/ANSI A117.1-2009
- BHMA Certified
- Fire Rated – UL10C – Positive Pressure
- Underwriters Laboratory 4L10
- GREENGUARD Gold Certified
Brand | |
---|---|
Finishes | A – Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum, BSP Black Suede Powder Coat |

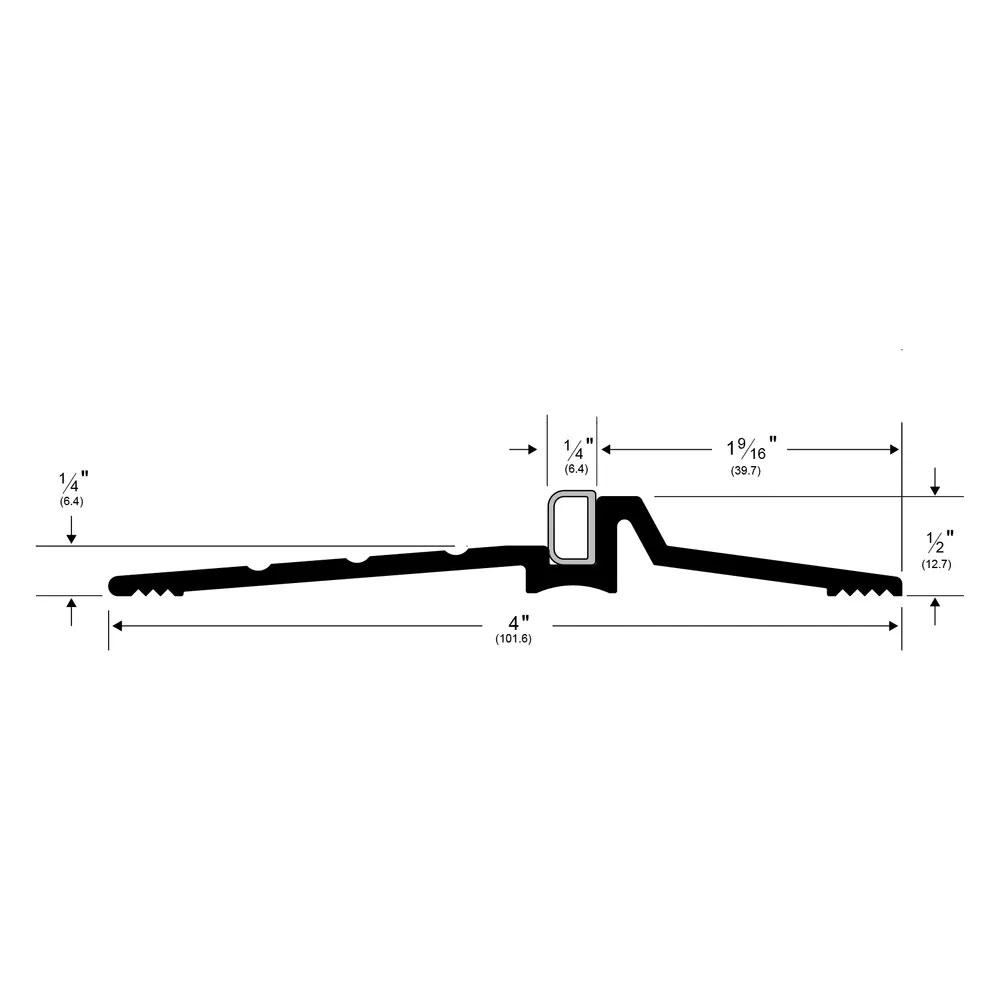

Length | 36", 48", 72", 96" |
Width | 4" |
Height | 1/2" |
ANSI/BHMA Standard | ANSI/BHMA A156.2 |
ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
Fire Rating | Up to 3 Hours with metal doors; 90 minutes with wood doors |
