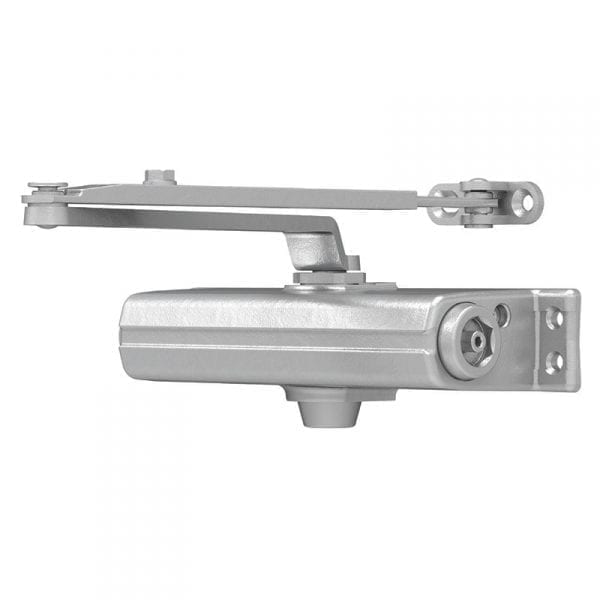

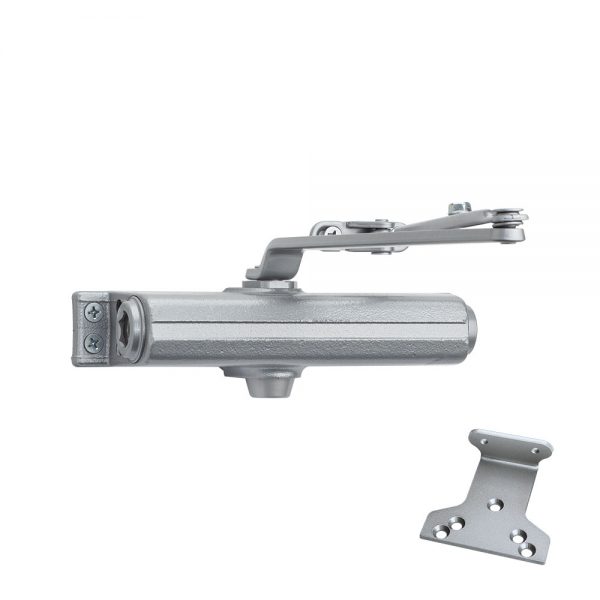

LCN 1261 Rw/PA Door Closer

Usually Ships: 1-2 Business Days
  • Grade 1 – ANSI A156.4 Certified
  • Cast Iron Body, Adjustable Spring Size 1-5
  • Regular, Top Jamb or Parallel Arm Mount

Available Options:


LCN 1261-Rw/PA Grade 1 Surface Door Closer, Regular Arm, PA Shoe, Push or Pull Side Tri Mount Mounting, Size 1 to 5, No Cover, All Weather Fluid

The 1260 Series is designed for light- to medium-duty applications as a fit for the most common commercial footprint, meeting ANSI/BHMA A156.4 Grade 1 and ADA reduced opening force requirements. The 1260 Series is cUL listed and UL listed for self-closing doors without hold-open and boasts a 20-year limited warranty.

Body construction

  • Cast iron cylinder with full-complement bearing
  • 1-3/8 ” diameter piston
  • Heat-treated steel pinion journal

Quality and durability

  • All-weather fluid
  • Forged steel arm
  • 20-year warranty


  • Universal non-handed
  • Standard Tri-Pack for Regular Pull Side, Top Jamb or Parallel Arm Mounting
  • Peel-n-stick template and optional Quick Fix bracket kit
  • Adjustable spring sizes 1-5



689 Aluminum (Powder Coated), 691 Light Bronze (Powder Coated), 693 Black (Powder Coated), 695 Dark Bronze (Powder Coated), 696 Brass (Powder Coated)

Templating (Hole Pattern)

3/4" x 9-1/16"


Standard Duty

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

Spring Size

Adjustable Spring Size 1-5


All Weather Fluid

Door Application

Hollow Metal, Wood or Aluminum



Body Construction

Cast Iron Body


Tested and certified under ANSI Standard A156.4 – Grade-1

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

UL and cUL Listed – up to 3 Hours




Standard Universal Screw Pack includes Self Reaming and Tapping Screws (SRT), Machine Screws, Wood Screws and Thru Bolts


20 Year Limited

Buy American Act Compliance

Meets BAA – Buy American Act
