Norton 1601 Door Closer

Usually Ships: 1-2 Business Days
  • ANSI/BHMA A156.4, Grade 1 certified
  • Fully adjustable – Sizes 1-6
  • Regular, top jamb or parallel arm mount

Available Options:

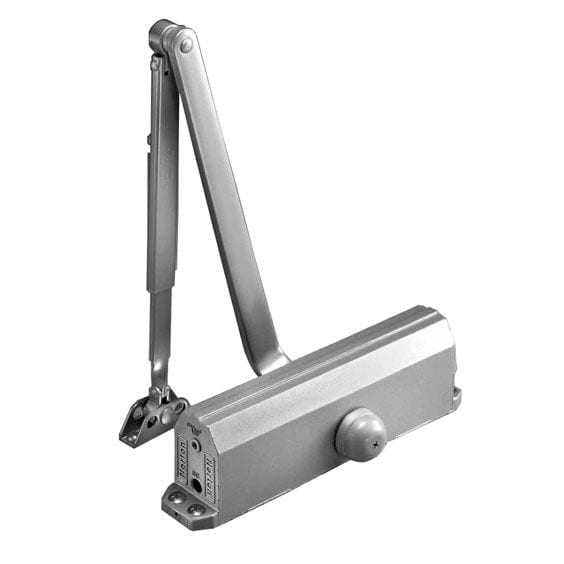

Norton 1601 Grade 1 Tri-Mount Surface Door Closer, Adjustable Size 1-6, Non-Handed

The Norton 1601 is typically used as an aluminum storefront door closer, for light to medium traffic. A staple in the industry, these ANSI/BHMA Grade-1 closers are designed for exterior or interior doors. The 1600 Series door closers offer proven quality, performance, and reliability unmatched by the competition. 1600 Series closers are ideal for virtually any medium traffic, commercial application.

  • Tri-style® packaging: regular, top jamb or parallel mounting
  • Exceeds 25 million cycles (independently verified) for long life and fewer replacements
  • One-piece, heavy-duty cast aluminum body
  • High strength aluminum alloy closer body provides for long life
  • Independent latch, sweep and backcheck intensity valves to ensure positive control


  • ANSI/BHMA A156.4, Grade 1 certified
  • UL / cUL listed for use on fire-rated doors
  • UL10C listed for positive pressure fire test
  • Meets requirements for Americans with Disabilities Act


689 Aluminum (Powder Coated), 690 Dark Bronze (Powder Coated), 691 Light Bronze (Powder Coated), 693 Black (Powder Coated), 696 Brass (Powder Coated)


Standard Duty

Templating (Hole Pattern)

3/4" x 9-1/16"

ANSI/BHMA Standard

ANSI/BHMA A156.4, Grade 1 certified

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-6





Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

Fire Rating

UL and cUL Listed – up to 3 Hours


30 Years

Norton 1600 Series Tri-Style Non-Hold Open Installation Instructions
