Norton 1601H Door Closer with Hold Open Arm

Usually Ships: 1-2 Business Days
  • ANSI/BHMA Certified – Grade-1
  • Includes Hold Open Arm
  • Regular, Top Jamb or Parallel Arm Mount

Available Options:

Clear

Norton 1601H Grade 1 Tri-Mount Surface Door Closer, Hold Open, Adjustable Size 1-6, Non-Handed

The Norton 1601 is typically used as an aluminum storefront door closer, for light to medium traffic. A staple in the industry, these ANSI/BHMA Grade-1 closers are designed for exterior or interior doors.

  • Includes hold open arm
  • Tri-style® packaging: regular, top jamb or parallel mounting
  • Exceeds 25 million cycles (independently verified) for long life and fewer replacements
  • One-piece, heavy-duty cast aluminum body
  • High strength aluminum alloy closer body provides for long life
  • Independent latch, sweep and backcheck intensity valves to ensure positive control

CODE COMPLIANCE

  • ANSI/BHMA A156.4, Grade 1 certified
  • Meets requirements for Americans with Disabilities Act
Brand

Finishes

689 Aluminum, 690 Statuary Bronze, 691 Light Bronze, 693 Black, 696 Brass

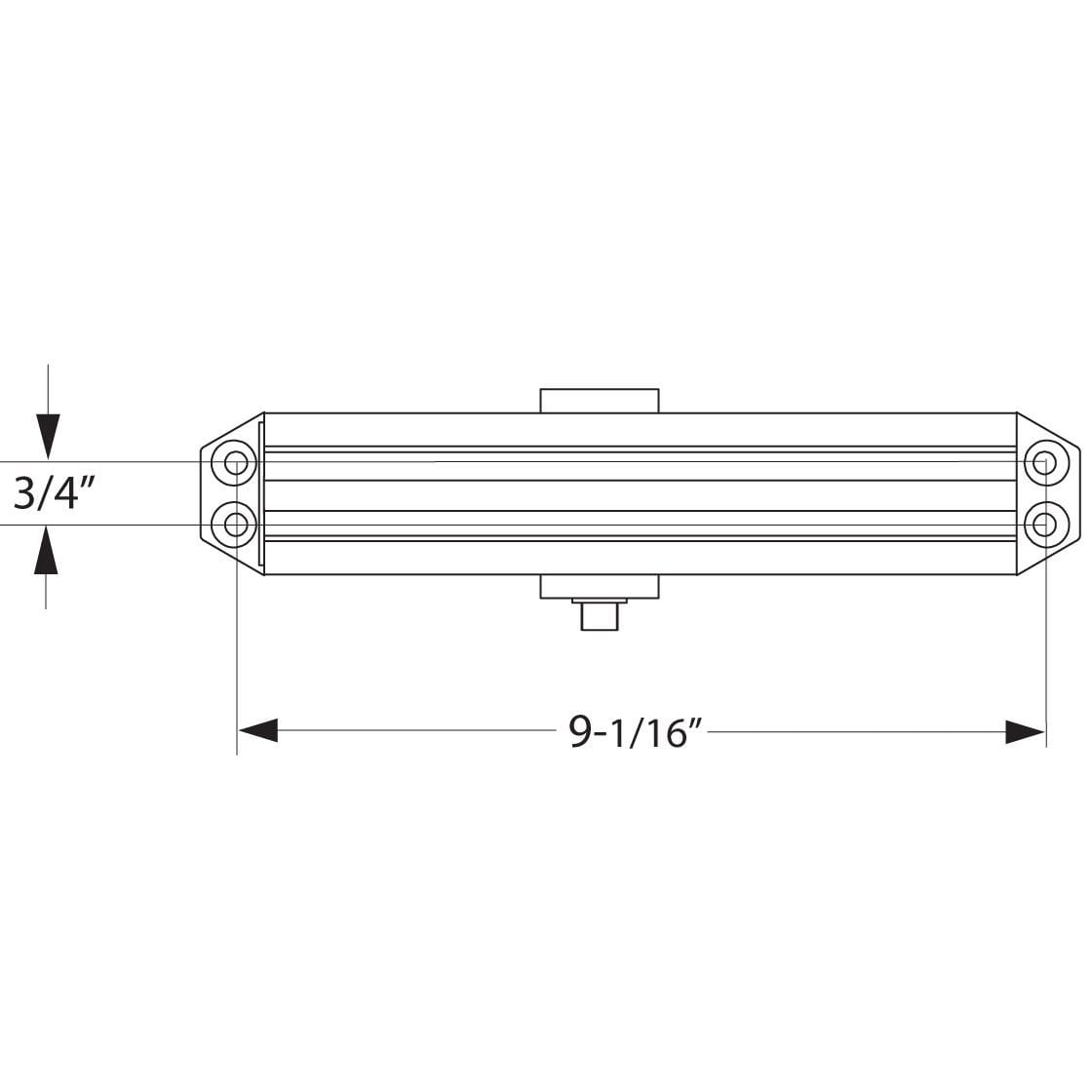

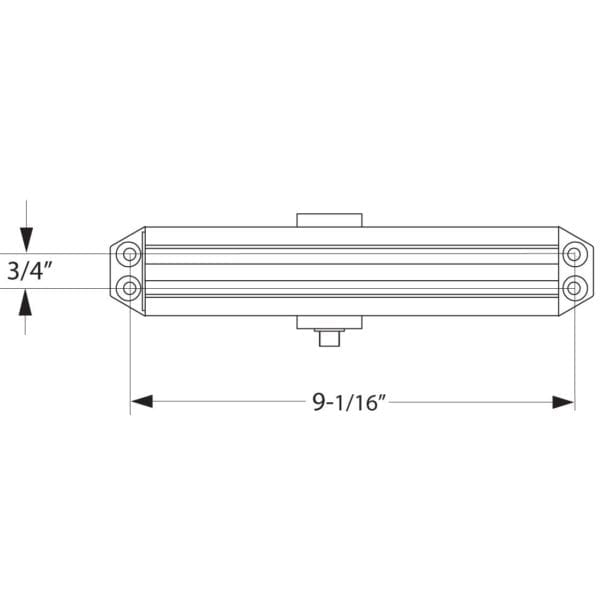

Templating (Hole Pattern)

3/4" x 9-1/16"

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

ANSI/BHMA Standard

ANSI/BHMA A156.4, Grade 1 certified

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-6

Cover

None

Usage

Standard Duty

Warranty

30 Years
