Hager-3400-WTN-Lever
Hager-3400-WTN-Lever

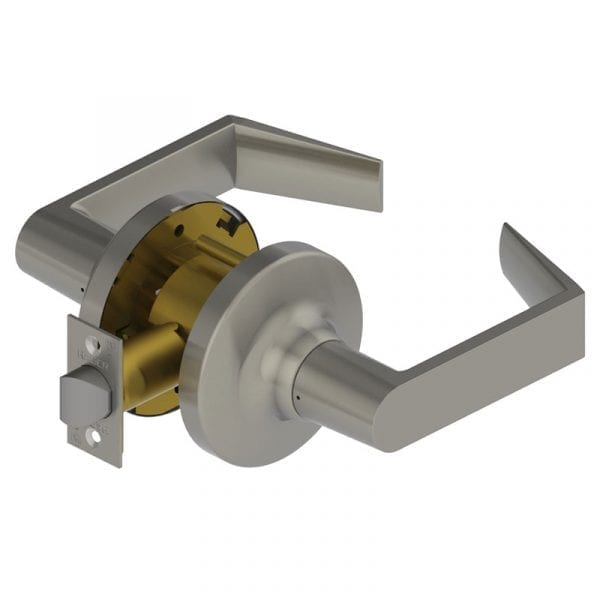

Hager 3410 WTN Passage Lever Set

Usually Ships: 3-5 Business Days
  • Extra Heavy Duty, BHMA/ANSI Certified Grade 1
  • ANSI Function: F75
  • ADA Compliant, 3 Hour Fire-Rated

Available Options:

Clear

Product Overview

Hager 3410 Passage Lever, WTH Withnell Lever Design

Hager 3400 Series Grade 1 lock is designed and engineered to withstand the most abusive commercial, industrial, and institutional environments.

Hager 3410 Passage Function (ANSI F75) – Latchbolt operated by lever from either side at all times.

  • WTN – Withnell lever design
  • Standard door prep – 2-1/8″ diameter (cross bore), latch hole – 1″ diameter (edge bore)
  • No exposed mounting screws

codes

Brand

Finishes

BLK – Matte Black, US26D (626) Satin Chrome
Lock Function

Passage
ANSI Grade

BHMA Certified ANSI A156.2, Series 4000, Grade 1
Usage

Heavy Duty
Backset

2-3/4"
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

UL/cUL listed up to 3 Hours
Handing

Non-Handed
Latch

1/2" throw – 1-1/8" x 2-1/4" face
Door Thickness

1-3/8" to 1-3/4"
Lever Design

WTN (Withnell)
Warranty

Limited Lifetime Warranty
