Falcon W201D D (DANE) Patio Lever Lock

Usually Ships: 20-30 Business Days
  • ANSI/BHMA A156.2, Grade 2 certified
  • ANSI function F77: Patio lock
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

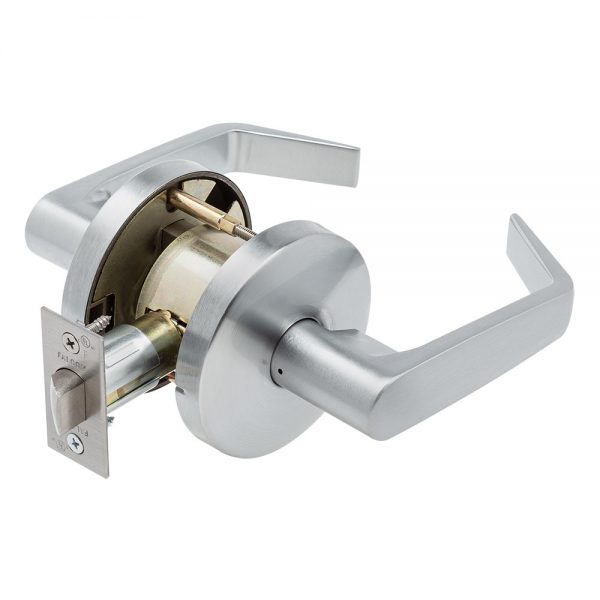

Falcon W201D Grade 2 Patio Cylindrical Lock, Non-Keyed, Dane Lever, Standard Rose

When an affordable passage lever set is needed for low to medium traffic doorways in office, government, retail, industrial or multi-family applications, the W101 fits perfectly. The Falcon W Series offers a quality product at a value price, and is backed by one of the best names in the business – Allegion.

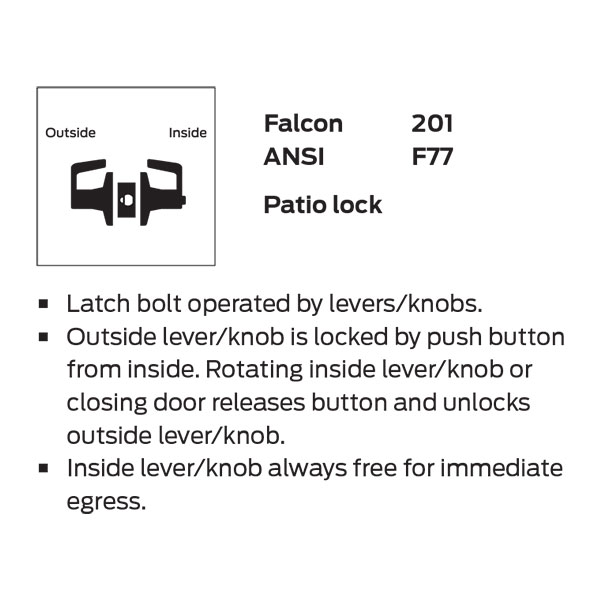

ANSI Function F77 – Latch bolt operated by levers. Outside lever/knob is locked by push button from inside. Rotating inside lever or closing door releases button and unlocks outside lever. Inside lever always free for immediate egress.

  • Non-handed for easy field assembly
  • Heavy-duty springs for better lever return and to prevent sagging
  • Manufactured to Allegion’s industry-leading quality standards

codes

Brand

Finishes

605 Bright Brass, 606 Satin Brass, 613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 643e Aged Bronze

Lock Function

Patio

Lever Design

D (Dane)

Usage

Medium Duty

ANSI/BHMA Standard

Tested and certified under ANSI/BHMA A156.2, Grade 2

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

UL/cUL listed up to 3 Hours – UL symbol on the latch front

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Latch

1/2” throw, deadlocking – 1-1/8" x 2-1/4" face

Backset

2-3/4"

Handing

Non-Handed

Door Thickness

1-3/8" to 1-3/4"

Warranty

10 Year Limited
