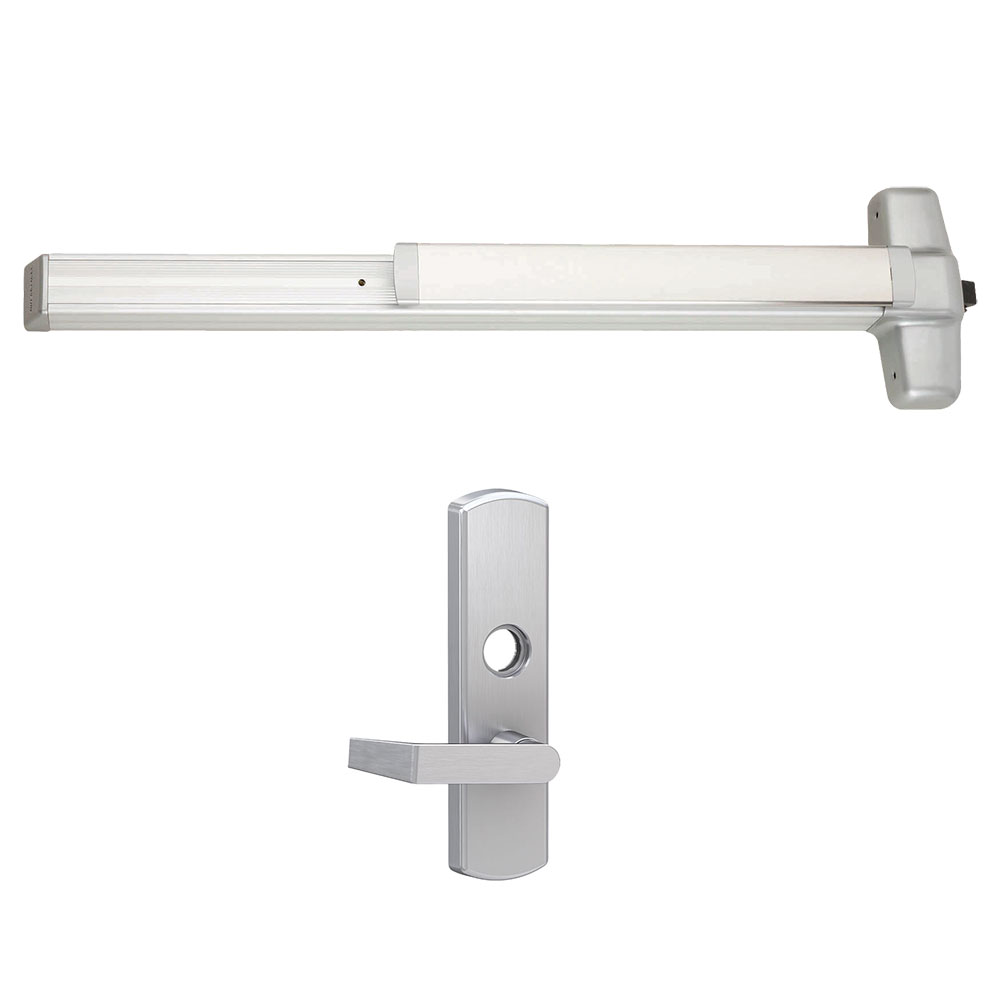

Von Duprin 99L-NL Rim Exit Device with Night Latch Lever

Usually Ships: 1-2 Days
  • Heavy Duty – ANSI/BHMA Grade-1– Made in USA
  • ANSI Function 09 (Night Latch – Key Retracts Latchbolt)
  • Includes 996L-NL-R/V-06 Lever

Available Options:

  • Anodized Aluminum
  • Black
  • Dark Bronze
  • Satin Chrome
Clear

Often regarded as one of the world’s finest panic bar exit device, the 99 Series has been certified to the highest industry standards and are used in schools, hospitals and government buildings. The 99 Series is a high-performance heavy-duty push pad exit device. Von Duprin customers are supported by industry-leading expertise. Allegion’s representatives average more than 15 years of experience, so you’re assured to receive knowledgeable advice on fire and life safety codes, installation resources and more.

  • Designed for high use and abuse in commercial and institutional applications
  • Deadlocking Latchbolt Standard
  • 299 Roller Strike Standard
  • Stock Sizes: 3′ and 4′ – Cut to size in field

996L-NL Night Latch Lever Trim

  • ANSI Function: 09 (key retracts latchbolt, outside lever always locked – similar to storeroom function lock)
  • Escutcheon plate size: 2-3/4″ x 10-3/4″ x 27/32″
  • Projection: 2-7/8″
  • #06 lever style furnished standard
  • Field reversible – ships as RHR
  • Requires rim cylinder (sold separately)

Brand

Length

3'0" (2'4" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)

Stile Type

Wide (Standard)

Trim

996L-NL (Night Latch – Key Retracts Latchbolt)

ANSI Function

F09

Hand

Device Non-Handed – Lever Ships as RHR (Field Reversible)

Cylinder

1-1/8" Rim Cylinder (Sold Separately)

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards

Usage

Heavy Duty

Fire Rating

99L: Non-Fire-Rated – 99L-F: UL Listed A or B label Fire-Rated (3 Hours)

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Latchbolt

Deadlatching, 3/4" throw

Strike

299 roller strike standard, 299F strike with fire-rated device

Fasteners

Includes screws for metal and wood doors

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Center Case

8" x 2-3/4" x 2-3/8"

Projections

Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16"

Door Applications

1-3/4″ Thick Doors

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA

Finishes

313 Duranodic Dark Bronze, US19 (315) Flat Black, US26D (626) Satin Chrome, US28 (628) Anodized Aluminum
