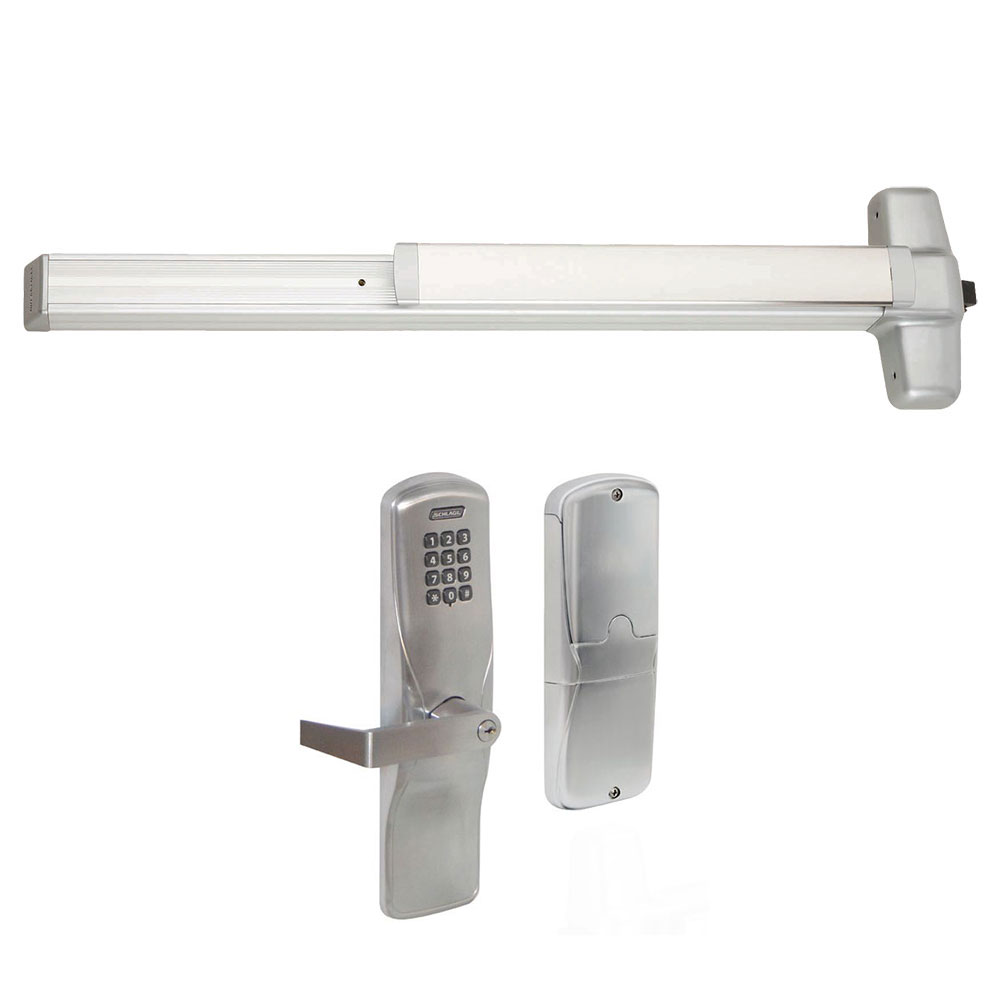

Von Duprin 99 Rim Exit Device with CO-100-993R-70 Electronic Keypad Lever

Usually Ships: 1-2 Days
  • Heavy Duty – Grade-1 – ANSI/BHMA Certified – Made in USA
  • Includes Schlage CO-100-993R-70 Electronic Keypad Lever
  • Up to 500 Unique PIN Codes – Mechanical Key Override

Available Options:

  • Anodized Aluminum
  • Satin Chrome
Clear

Often regarded as one of the world’s finest panic bar exit device, the 99 Series has been certified to the highest industry standards and are used in schools, hospitals and government buildings. The 99 Series is a high-performance heavy-duty push pad exit device. Von Duprin customers are supported by industry-leading expertise. Allegion’s representatives average more than 15 years of experience, so you’re assured to receive knowledgeable advice on fire and life safety codes, installation resources and more.

  • Deadlocking Latchbolt Standard
  • 299 Roller Strike Standard
  • Stock Sizes: 3′ and 4′ – Cut to size in field

Schlage CO-100-993R-70-KP-RHO Keypad Electronic Rim Exit Device Trim – US26D Satin Chrome

The CO Series 993 Exit Trim utilizes universal hardware to simplify installation of offline trim to 99 Series exit devices.

  • 4 AA batteries included – up to 2 year battery life
  • Helps to minimize key distribution to ensure the integrity of the key system over time
  • Manages up to 500 unique 3-6 digit PIN codes with user rights stored on the lock
  • UL 294 Listed, ANSI/BHMA A156.25, ANSI/BHMA Grade-1 Certified
  • Key Override (Schlage C Keyway)

Brand

Length

3'0" (2'4" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)

Hand

Device Non-Handed – Lever Field Reversible

Finishes

US26D (626) Satin Chrome, US28 (628) Anodized Aluminum

Trim

Schlage CO-100-993R-70-KP-RHO – US26D

Keyway

Schlage C Keyway

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards

Usage

Heavy Duty

Fire Rating

99CO-100: Non-Fire-Rated – 99CO-100-F: UL Listed A or B label Fire-Rated (3 Hours)

Latchbolt

Deadlatching, 3/4" throw

Strike

299 roller strike standard, 299F strike with fire-rated device

Fasteners

Includes screws for metal and wood doors

Center Case

8" x 2-3/4" x 2-3/8"

Projections

Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16"

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Stile Type

Wide (Standard)

Door Applications

1-3/4″ Thick Doors

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA

Von_Duprin_98_99_Series_Rim_Exit_Device_Installation_Instructions Schlage_CO-Series_for_Exit_Device_Installation_Instructions
