Pemko PEMKOSTCSET-1C Acoustical Door Seal Set

Usually Ships: 10-15 Business Days
  • Complete STC solution in a kit
  • Includes ACP112BL, STC411APK, S442BL, and S44BL
  • Sound tested, fire-rated, and smoke tested

Available Options:

Clear

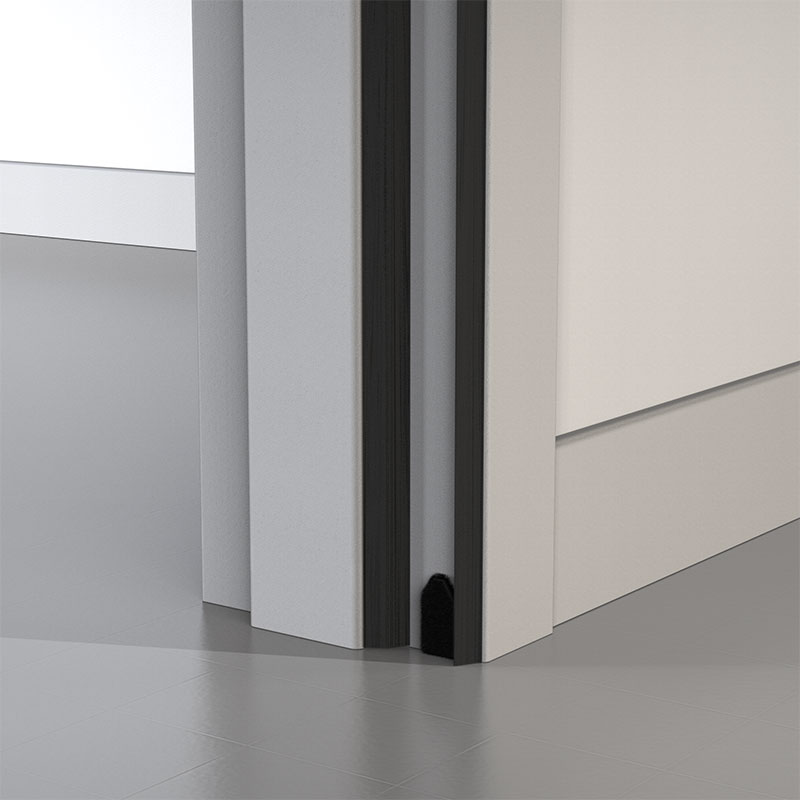

Pemko PEMKOSTCSET-1C Acoustical Seal Set for Frames and Doors

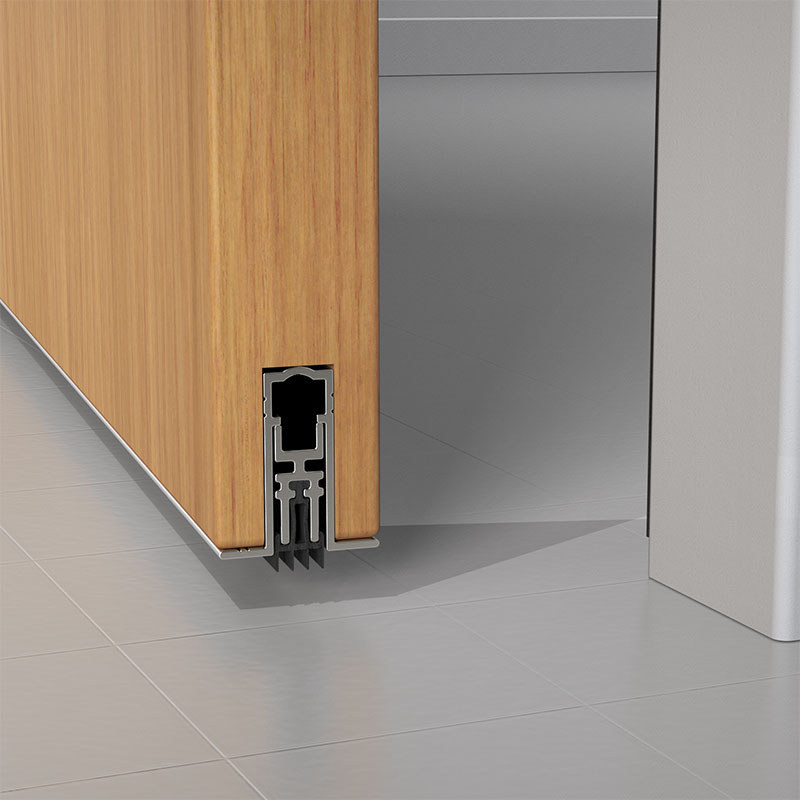

This kit combines the Pemko S442 and S44 adhesive-back style gasket with the Pemko STC411APK acoustic automatic door bottom to provide optimal performance and easy installation while gaskets remain unseen when the door is in the closed position.

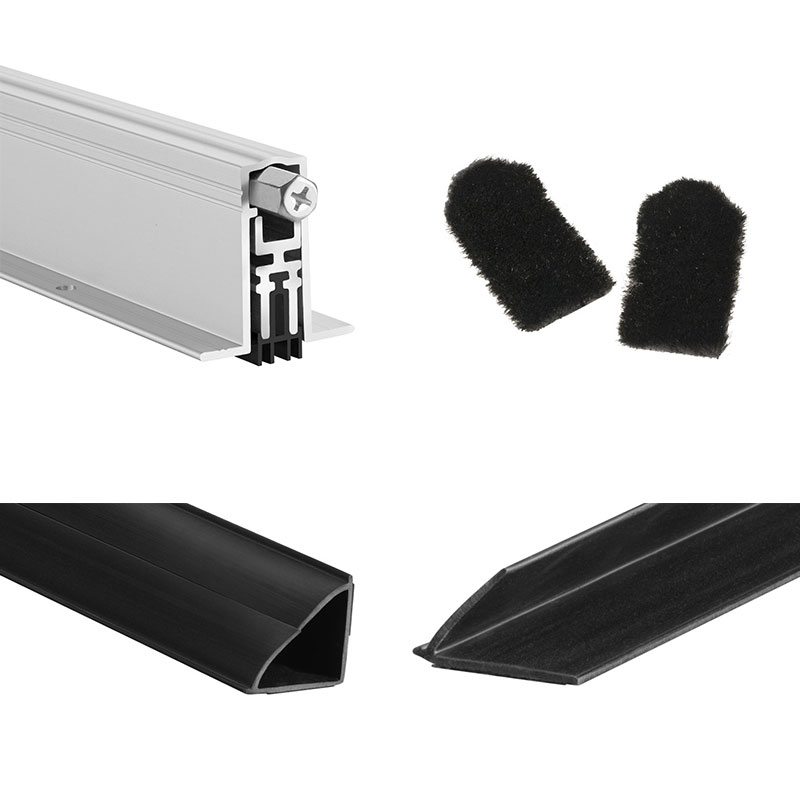

Kit Includes:

  • ACP112BL: Black Pile
  • STC411APK: A – Mill Finish Aluminum with Black PemkoPrene insert
  • S442BL: BL – Black Silicone (Single Row)
  • S44BL: BL – Black Silicone (Single Row)

This kit offers the following demonstrated performance

Doors with inoperable STC Ratings of: Decible (dB) drop from Operable STC Rating
Under 42 0 dB
43 to 45 0 dB
46 to 48 -1 dB
49 to 53 -2 dB

Features

  • Superior acoustic performance
  • Lab-tested sealing solutions
  • Meets ANSI Standard S12.60-2002
  • Use with any STC Rated Door
  • Gasketing and inserts have achieved GREENGUARD Gold Certification

Ratings

  •  Air Infiltration Tested – Air infiltration tested in accordance with ASTM E283-04.
  •  Sound Tested – Tested to meet ASTM E 90-2009 Standard. Tested to meet ANSI Standard S12.60-2010, Acoustical Performance Criteria.
  •  BHMA Certified
  •  Smoke Tested – UL1784
  •  Fire Rated – UL10C – Positive Pressure
  •  Underwriters Laboratory 4L10
  •  GREENGUARD Gold Certified

STC

Brand

Size

36" x 80", 36" x 84", 36" x 96", 48" x 80", 48" x 84", 48" x 96"
