Von Duprin 98L-US26D Rim Exit Device with Lever

Usually Ships: 1-2 Days
  • Heavy Duty – ANSI Grade-1 – Made in USA
  • Includes 996L-R/V-06 Lever
  • US26D / 626 Satin Chrome Finish

Available Options:

Clear

High-performance exit device with heavy-duty lever trim for high use and abuse applications

The 98 Series has been certified to the highest industry standards and are used in schools, hospitals, and government buildings.

  • US26D / 626 satin chrome finish
  • The 98 Series features a smooth mechanism case
  • Designed for high use in commercial and institutional applications
  • Deadlocking Latchbolt Standard

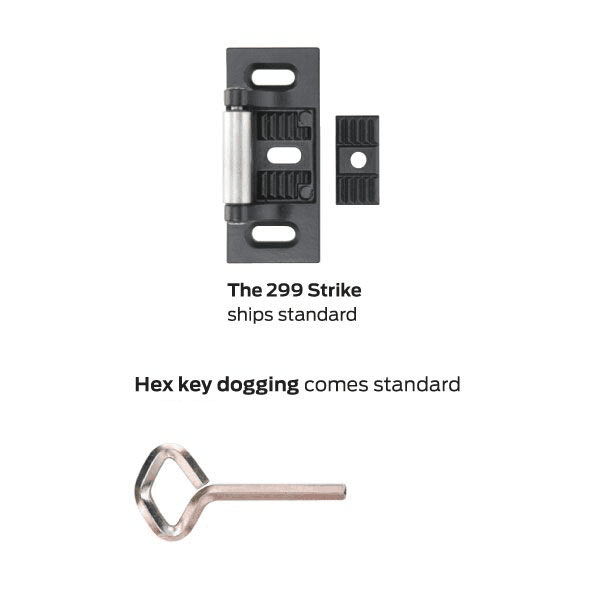

  • 299 Roller Strike Standard
  • Stock Sizes: 3′ and 4′ – Cut to size in field

996L Breakaway Lever Trim has become the standard lever trim offering on 99L Series devices. The Breakaway design is especially effective in areas where vandalism to door hardware is a problem. The design intent is to discourage costly repairs from becoming necessary.

  • ANSI Function 08 (Key Locks & Unlocks Lever
  • Escutcheon plate size: 2-3/4″ x 10-3/4″ x 27/32″
  • Projection: 2-7/8″
  • #06 lever style furnished standard
  • Field reversible – ships as RHR
  • Requires rim cylinder (sold separately)

Brand

Length

3'0" (2'4" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)

Stile Type

Wide (Standard)

Trim

996L (Entry – Key Locks & Unlock Lever)

ANSI Function

F08

Hand

Device Non-Handed – Lever Ships as RHR (Field Reversible)

Cylinder

1-1/8" Rim Cylinder (Sold Separately)

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards

Usage

Heavy Duty

Fire Rating

98L: Non-Fire-Rated – 98L-F: UL Listed A or B label Fire-Rated (3 Hours)

Latchbolt

Deadlatching, 3/4" throw

Strike

299 roller strike standard, 299F strike with fire-rated device

Fasteners

Includes screws for metal and wood doors

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Center Case

8" x 2-3/4" x 2-3/8"

Projections

Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16"

Door Applications

1-3/4″ Thick Doors

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA

Finishes

US26D (626) Satin Chrome
