Von Duprin 22EO-F Fire-Rated Rim Exit Device

Usually Ships: 1-2 Business Days
  • ANSI/BHMA Grade-1 Certified – Made in USA
  • ANSI Function 01 (exit only, trim sold separately)
  • UL Listed Fire Hardware, 3 Hour Rated

Available Options:

Clear

Von Duprin 22EO-F Grade-1 Fire-Rated Rim Exit Device, Exit Only

The 22 Series wide stile device is a cost-effective solution for medium to low traffic areas where proven reliability is needed. The non-handed design of the 22 Series makes it more adaptable in the field. The 22 Series is designed and manufactured in accordance to ISO 9001 Quality Management System. The 22 Series is an economical alternative that incorporates a modern touch bar styling for any door type.

  • Exit Only (Von Duprin 22 Series Exit Device Trim Sold Separately)
  • ANSI A156.3, 2008 Grade-1
  • UL listed fire hardware, Fire-rated up to 3 hours
  • Covers stock hollow metal doors with 161 cutout

Brand

Finishes

526 Powder Coated Chrome, 622 Matte Black, 689 Aluminum, 695 Dark Bronze

Usage

Medium Duty

ANSI/BHMA Standard

ANSI/BHMA A156.3-2008 Grade 1 certified

Fire Rating

UL listed A or B label Fire-Rated (3 Hours)

Stile Type

Wide (Standard)

Hand

Non-handed

Strike

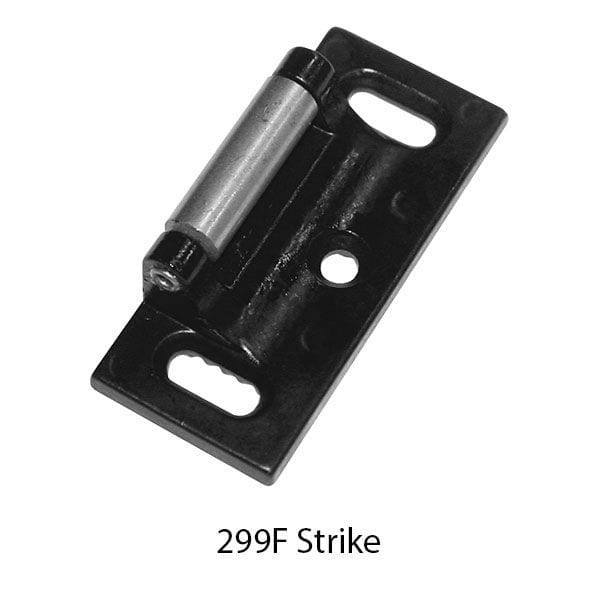

299F fire-rated roller strike

Latchbolt

Deadlatching, 3/4" throw

Fasteners

Includes screws for metal and wood doors

Dogging Feature

None

Projections

Pushbar neutral: 3-1/4" – Pushbar depressed: 3"

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA

Von Duprin 22 Series Exit Device Installation Instructions
