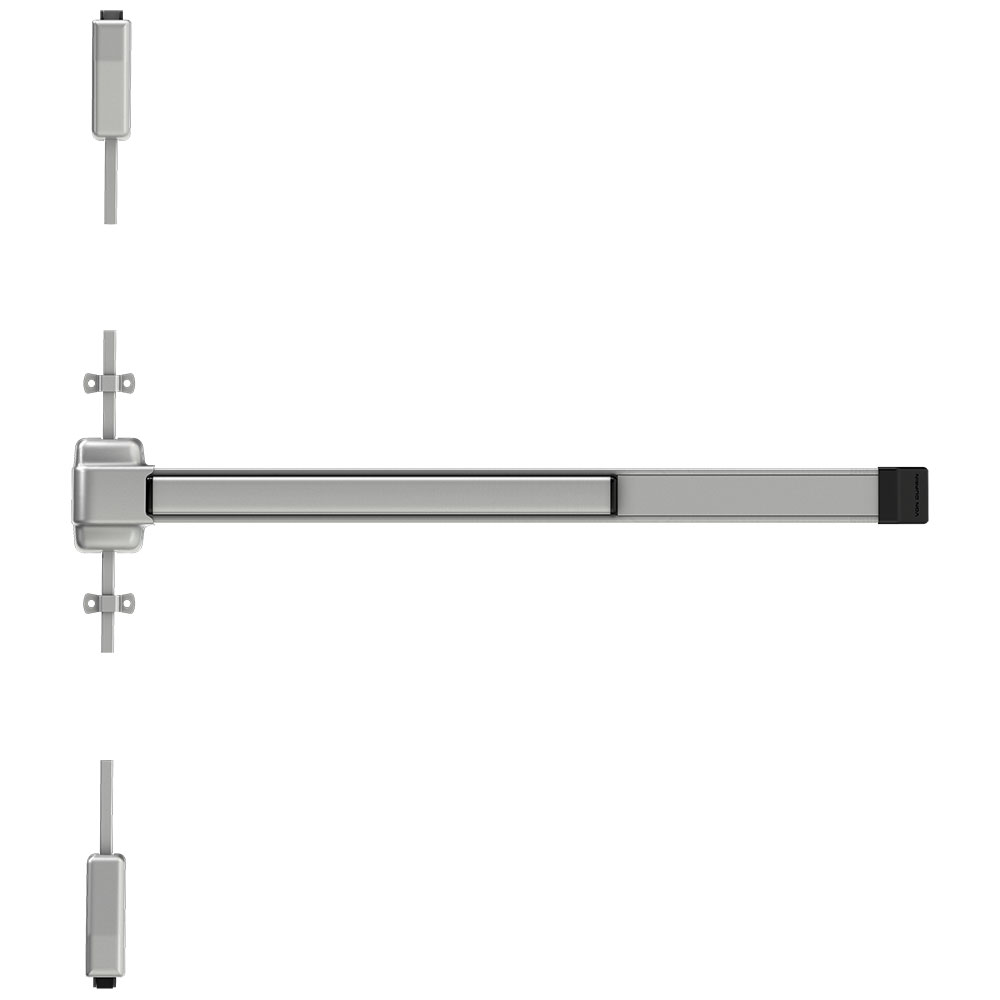

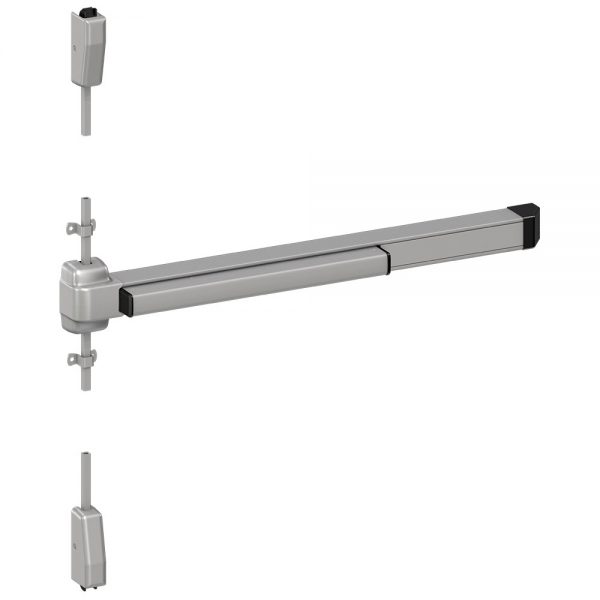

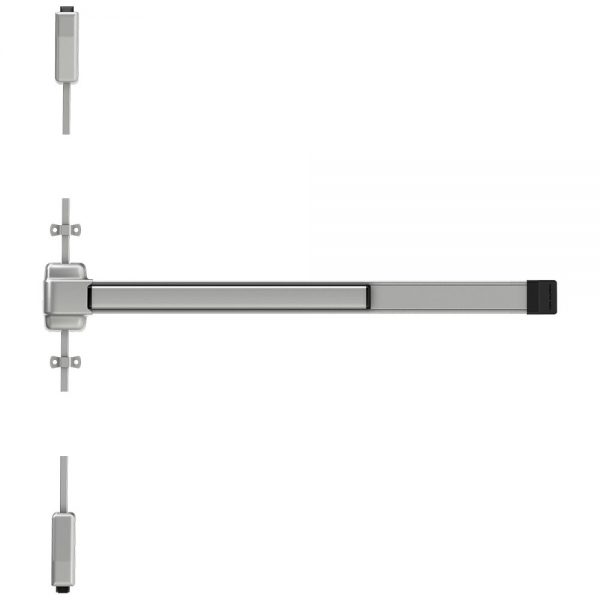

Von Duprin 2227EO-F Fire-Rated Surface Vertical Rod Exit Device

Usually Ships: 1-2 Days
  • ANSI/BHMA Grade-1 Certified – Made in USA
  • UL Listed Fire Door Hardware, 3 Hour-Rated
  • Exit Only Model (Trim Sold Separately)

Available Options:

  • Aluminum
  • Dark Bronze
Clear

The 22 Series wide stile device is a cost-effective solution for medium to low traffic areas where proven reliability is needed. The non-handed design of the 22 Series makes it more adaptable in the field. The 22 Series is designed and manufactured in accordance to ISO 9001 Quality Management System. It also is UL listed for Panic Hardware or Fire Hardware.

  • 2227EO-F Exit Only, ANSI Function 01 (Outside Trim Sold Separately)
  • Standard Sizes: 3′ x 7′, 4′ x 7′ (extension rods available for doors up to 10′)
  • Finishes: SP28 (Sprayed Aluminum), SP313 (Sprayed Dark Bronze)

Brand

Finishes

689 Aluminum, 695 Dark Bronze

Length

3'0" (2'4" to 3'0" Doors), 4'0" (3'4" to 4'0" Doors)

Device Type

Surface Rod Device

ANSI/BHMA Standard

ANSI/BHMA A156.3-2008 Grade 1 certified

Usage

Medium Duty

Fire Rating

UL listed A or B label Fire-Rated (3 Hours)

Hand

Non-handed

Door Height

7'0" (Standard)

Vertical Rods

Rods Accommodate Doors up to 7'0" – Cut to Specification in Field (extension rod available for doors up to 10'0")

Dogging Feature

None

Latchbolt

Deadlatching, 3/4" throw

Stile Type

Wide (Standard)

Projections

3-3/4" Maximum, 3" Depressed

Strikes

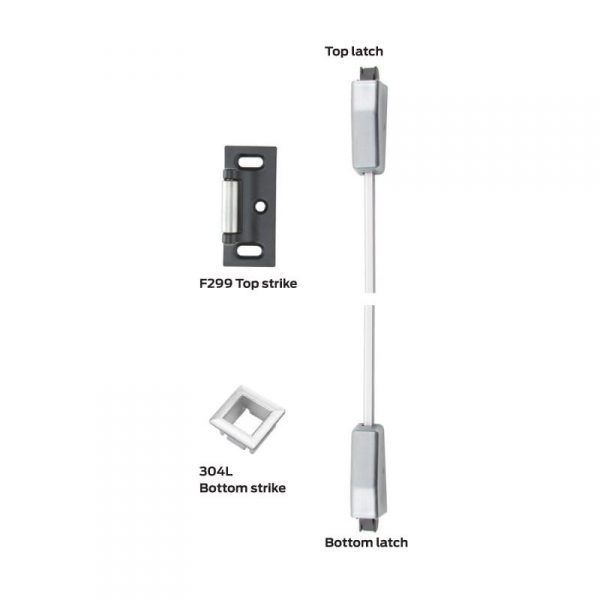

299 Top Strike, 304L Bottom Strike – 248L4 Bottom strike for use with flat threshold

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
