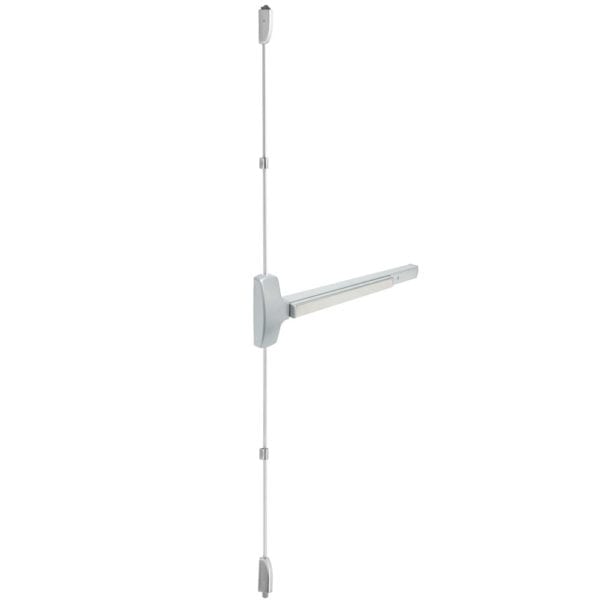

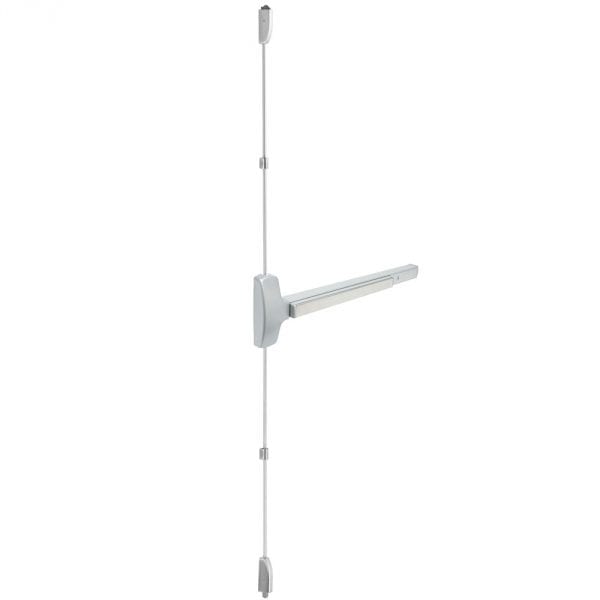

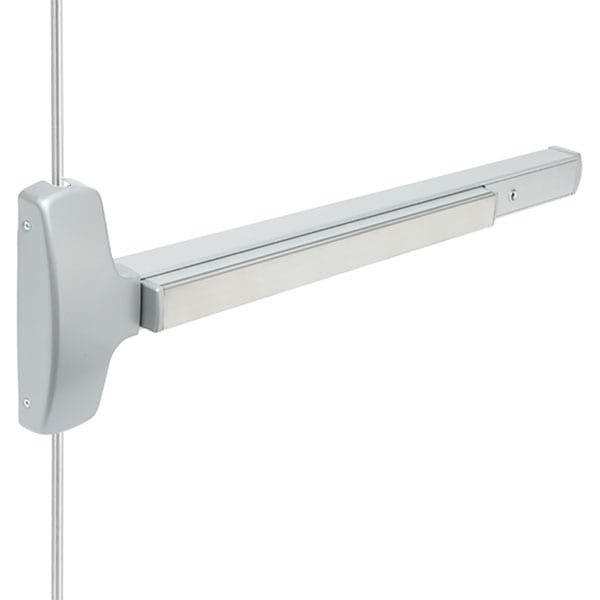

Falcon 25-V-EO Surface Vertical Rod Exit Device

Usually Ships: 1-2 Days
  • Heavy-Duty – Grade-1 ANSI Certified
  • ANSI Function 01, Exit Only (Trim Sold Separately)
  • Streamlined Design and Clean Lines

Available Options:

  • Anodized Aluminum
  • Black
  • Bright Brass
  • Dark Bronze
  • Satin Chrome
  • Stainless Steel
Clear

High-traffic applications demand the added strength and protection that comes with a vertical rod device. The Falcon 25-V Series delivers with a surface-applied design that includes standard top latch and deadlocking. The sleek touch bar design ensures an attractive installation. Offices, banks, assisted living facilities, retail stores, and other commercial buildings have constant traffic, so door hardware must be able to take continual use and abuse.

No exposed screws or rivets on the back of the device for a streamlined design and clean lines – when installed on full glass doors.

  • EO = Exit Only, ANSI Function 01 (25 Series Outside Trim Sold Separately)
  • Deadlocking Top Latch Standard
  • All mounting screws are concealed, sheet metal screws and machine screws standard
  • 2-3/4″ maximum projection, 2″ dogged
  • Stock Sizes: 3′ x 8′ and 4′ x 8′ – Cut to size in field

Brand

Finishes

313AN Anodized Dark Bronze, US3 (605) Bright Brass, US19 Flat Black, US26D (626) Satin Chrome, US32D (630) Stainless Steel

Length

3'0" (2'8" to 3'0" Doors – Up to 8'0" Height), 4'0" (3'4" to 4'0" Doors – Up to 8'0" Height)

Handing

Easily Re-handed in the field – Shipped as RHR

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards

Usage

Heavy Duty

Fire Rating

None

Vertical Rods

Rods Accommodate Doors up to 8'0" – Cut to Specification in Field

Strikes

3788 Top Strike is Surface Applied – 2130 Bottom Strike is Mortised into Floor

Latchbolt

Top Stainless Steel 3/4" throw. Bottom Bolt, 1/2" Throw

Dogging Feature

Half turn hex dogging standard

Projections

2-3/4" maximum, 2" dogged

Device Type

Surface Rod Device

Stile Type

Wide (Standard)

Minimum Stile Width

3-1/2"

Door Applications

1-3/4″ Thick Metal or Wood Doors

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
