Trudoor TDE-MEL-1000R-EO Heavy-Duty Panic Rim Exit Device with Motorized Latch Retraction Kit, Exit Only

Usually Ships: Same Day
  • Heavy Duty, ANSI/BHMA A156.3 Grade 1 standards
  • Includes motorized latch retraction kit (field installation required)
  • ANSI function 01, exit only (trim sold separately)

Available Options:

Clear

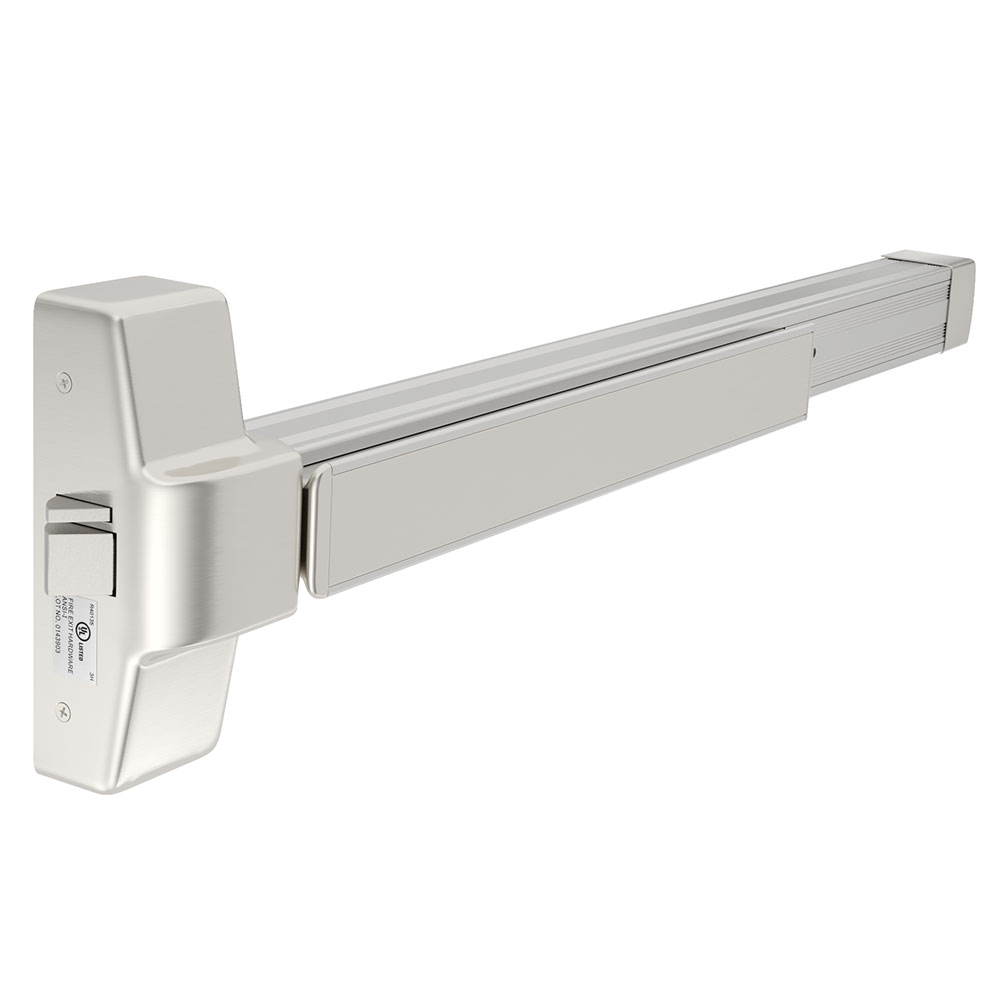

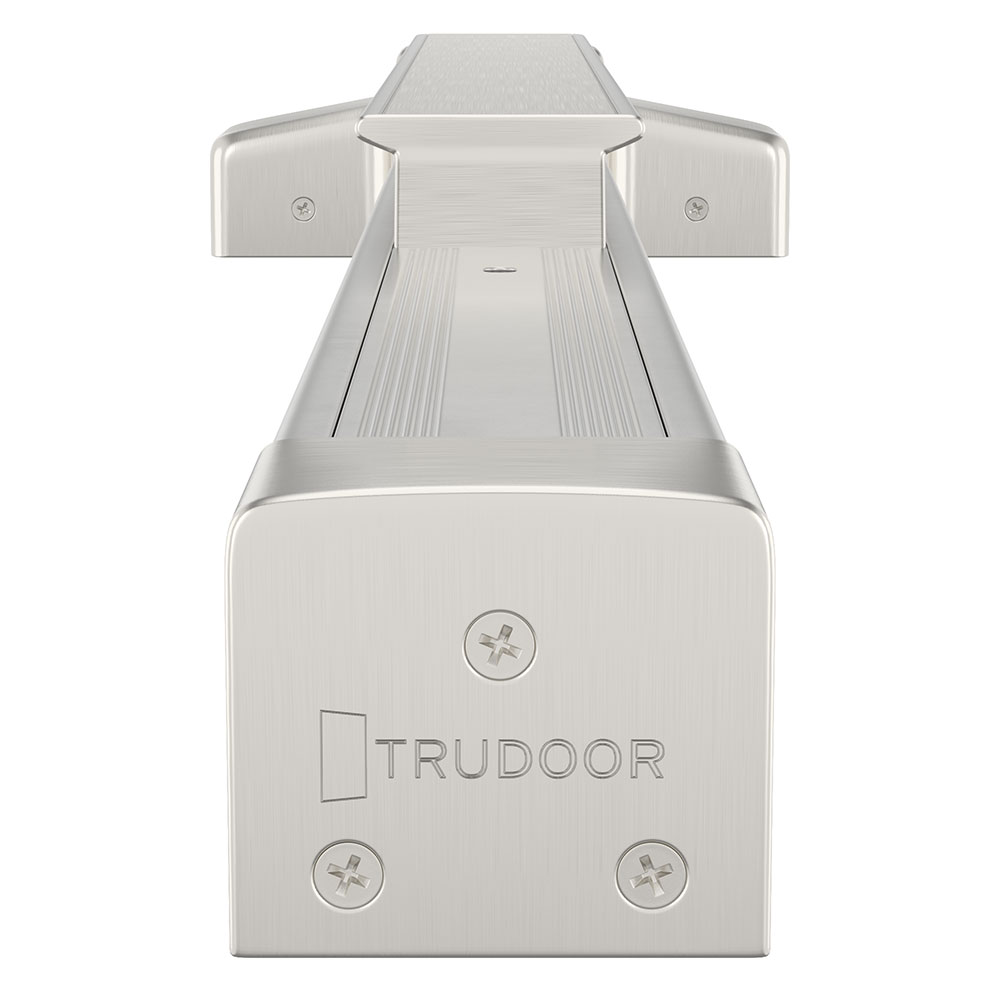

Trudoor TDE-MEL-1000R Heavy-Duty Grade-1 Rim Exit Device, Motorized Latch Retraction Kit, Exit Only, Satin Stainless Steel

TDE-1000 Series rim exit devices are an ideal choice for a wide variety of heavy-duty commercial, institutional, and industrial door applications where durability, reliability, and code compliance are required at an economical price.  Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.

The MLRK1-MRK is a robust, straightforward field-installable motorized latch retraction kit. It utilizes a CAT-designed custom assembly to maximize the pulling force. The only hole you’ll need to drill is the raceway! It uses the new 1-touch PTS “Push to Set” technology, making post-installation adjustments a breeze.

  • Exit Only (Trudoor Exit Device Trim sold separately)
  • Includes Command Access MLRK1-MRK Motorized Latch Retraction Kit (Field Installation Required)
  • Designed for medium to heavy use
  • Heavy-duty extruded anodized aluminum mechanism case and cover plate
  • Steel chassis, center case cover, push pad, and end cap
  • Hex key dogging standard on panic exit device
  • Deadlocking latchbolt with 5/8” projection
  • Non-handed for easy installation
  • Includes ASA strike (frame) filler plate and 161 door edge filler plate

MLRK1-MRK Motorized Latch Retraction Kit

  • Field Installation Required (ships loose – not factory installed)
  • Fast, Quite, Smooth & Strong!
  • Patent pending Push to Set (PTS) Technology
  • Next Generation MM5 Smart Module: Onboard diagnostics
  • Electric dogging rated for continuous duty – Auto reengage if push pad is pulled from dogged position
  • UL Listed
  • Voltage Range – 24 TO 28 VDC
  • System protection – unit shutdown when voltage exceeds 28 VDC
  • Standard – average current peak: 900MA, average current hold: 215MA
  • PTS adjustment – approx. 1/4″
  • Wire Run: 300′ with 18ga wire
  • Cutdown details: 36” – 1-1/4”, 48” – 1-1/4”

ul-listed







Brand

Finishes

US32D (630) Satin Stainless Steel

Length

3ft (for doors 2'4" to 3'0"), 4ft (for doors 3'4" to 4'0")

ANSI/BHMA Standard

Meets ANSI/BHMA A156.3 Grade 1 Standards

Usage

Heavy Duty

ADA Compliance

Meets ADA requirements ANSI A117.1 with Lever Trim

Fire Rating

TDE-1000R: Non-Fire-Rated – TDE-F1000R: 3 Hour Fire-Rated

Trim

None – Exit Only (Outside Trim Sold Separately)

Latchbolt

Deadlocking latchbolt with 5/8″ projection

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Strike

Roller Strike with 5/8″ projection & 1/8″ shim

Fasteners

Wood, Machine & Self Tapping Machine Screws

Handing

Non Handed – Completely Reversible

Stile Type

Wide (Standard)

Minimum Stile Width

4-1/2"

Center Case

8” Height x 2-7/8” Wide x 2-13/16” Thick

Mechanism Case

2-3/16″ Height x 2-3/16″ Wide

Projections

3-3/8″ Undogged – 2-13/16″ Dogged (Depressed)

Warranty

Lifetime Mechanical Warranty; 2 Year Electronic
