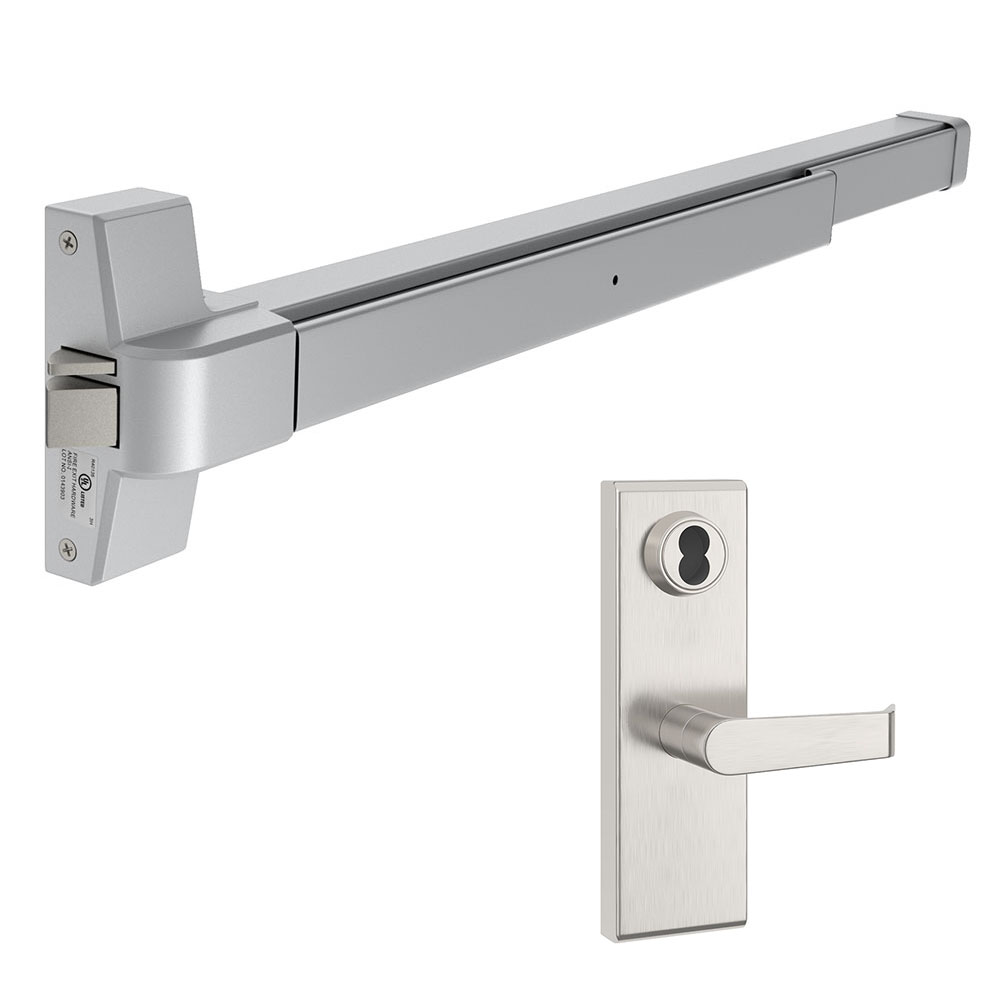

Trudoor TDE-2000R-L-SFIC Rim Exit Device with Heavy-Duty Escutcheon Lever Prepped for SFIC

Usually Ships: Same Day
  • Meets ANSI/BHMA A156.3 Grade 1 standards
  • ANSI Function 08 (classroom) or 09 (night latch)
  • Lever prepped for Small Format Interchangeable Core (less core)

Available Options:

Product Overview

Trudoor TDE-2000R-L-SFIC Grade-1 Rim Exit Device with TDE-08 Escutcheon Lever Trim Prepped for (SFIC) Small Format Interchangeable Core, Less Core

TDE-2000 Series rim exit devices are an ideal choice for a wide variety of standard to medium-duty commercial door applications where durability, reliability, and code compliance are required at an economical price.  Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.

  • ANSI Function 08 (Classroom) or 09 (Night Latch / Storeroom): Ships as 08 Classroom – 09 function achieved with single trim modification at installation
  • TDE-2000R: UL Listed for Panic Exit Hardware
  • TDE-F2000R: UL Listed for “A” Label 3-Hour Fire Doors (no dogging on fire-rated devices)
  • Includes ASA strike (frame) filler plate and 161 door edge filler plate
  • ADA compliant lever trim and meets California code for 1/2″ lever return to door face

TDE-08-SFIC Escutcheon Lever Trim

  • Prepped for Small Format Interchangeable Core (less core)
  • Entry/classroom function – convertible to night latch
  • Steel, zinc dichromated chassis, stainless steel exterior housing
  • Thru-bolts to exit device for added strength
  • 5″ solid stainless steel lever, 2-7/8″ total projection
  • Escutcheon: 3″ wide x 9″ height x 3/4″ projection, covers 161 door prep
  • 1-3/4″ door thickness standard
  • Includes thru bolt posts and 1/4″-20 machine screws for installation
  • Meets ADA requirements – A117.1 Accessibility code





Cross Reference

The TDE-2000R-L can be specified as a substitute for: Cal-Royal 2200 x NESC2000, Design Hardware 2000R x LE-08, Dorma 8300 x 8R08, Falcon 19R-L / 20R x L, Hager 4700 x 47CE, PDQ 4200 x 4-EW-08, Sargent x 3828 x 28C-LL, Von Duprin 22L, Yale 1800 x 426F / 2100 x 626F

Brand

Finishes

SP28/AL Aluminum Device – US32D/630 Satin Stainless Steel Lever
Length

3ft (for doors 2'4" to 3'0"), 4ft (for doors 3'4" to 4'0")
ANSI Grade

Meets ANSI A156.3 – Grade 1 Standards
Usage

Medium Duty
ADA Compliance

Meets ADA requirements ANSI A117.1 with Lever Trim
UL Listings

TDE-2000R Listed for Panic Exit Hardware – TDE-F2000R Listed for “A” Label 3 Hour Fire Doors
Fire Rating

TDE-2000R Non-Rated – TDE-F2000R 3 Hour UL Listed
Includes Trim

Yes
Trim

TDE-08 Escutcheon Lever
Cylinder

Housing for SFIC (Small Format Interchangeable Core) Less Core
Latchbolt

Deadlocking latchbolt with 5/8″ projection
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Strike

Roller Strike with 5/8″ projection & 1/8″ shim
Fasteners

Wood, Machine & Self Tapping Machine Screws
Handing

Non-Handed, Field selected at the time of installation
Stile Type

Wide (Standard)
Minimum Stile Width

4" w/ Standard Roller Strike
Center Case

6″ Height x 2-5/16″ Wide x 2-1/2″ Thick
Mechanism Case

1-5/8″ Height x 1-13/16″ Wide
Projections

2-1/2″ Undogged – 1-13/16″ Dogged (Bar Depressed)
Warranty

Limited Lifetime Warranty
