Trudoor TDE-2000R-L Rim Exit Device with Heavy-Duty Escutcheon Lever

Usually Ships: 20-30 Business Days
  • Meets ANSI/BHMA A156.3 Grade 1 standards
  • Includes TDE-08 escutcheon lever trim (cylinder included)
  • ANSI Function 08 (classroom) or 09 (night latch)

Available Options:

Clear

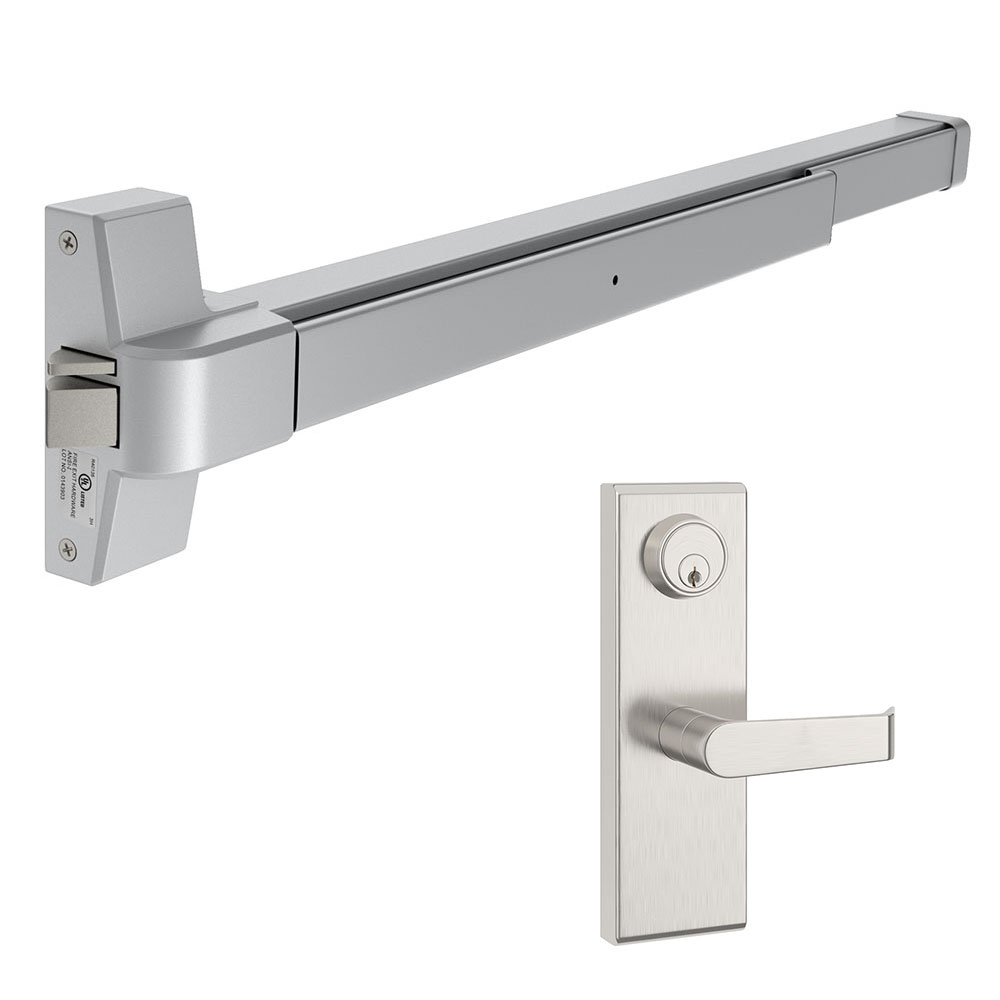

Trudoor TDE-2000R-L Grade-1 Rim Exit Device with TDE-08 Escutcheon Lever Trim

TDE-2000 Series rim exit devices are an ideal choice for a wide variety of standard to medium-duty commercial door applications where durability, reliability, and code compliance are required at an economical price.  Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.

  • ANSI Function 08 (Classroom) or 09 (Night Latch / Storeroom): Ships as 08 Classroom – 09 function achieved with single trim modification at installation
  • TDE-2000R: UL Listed for Panic Exit Hardware
  • TDE-F2000R: UL Listed for “A” Label 3-Hour Fire Doors (no dogging on fire-rated devices)
  • Includes ASA strike (frame) filler plate and 161 door edge filler plate
  • ADA compliant lever trim and meets California code for 1/2″ lever return to door face

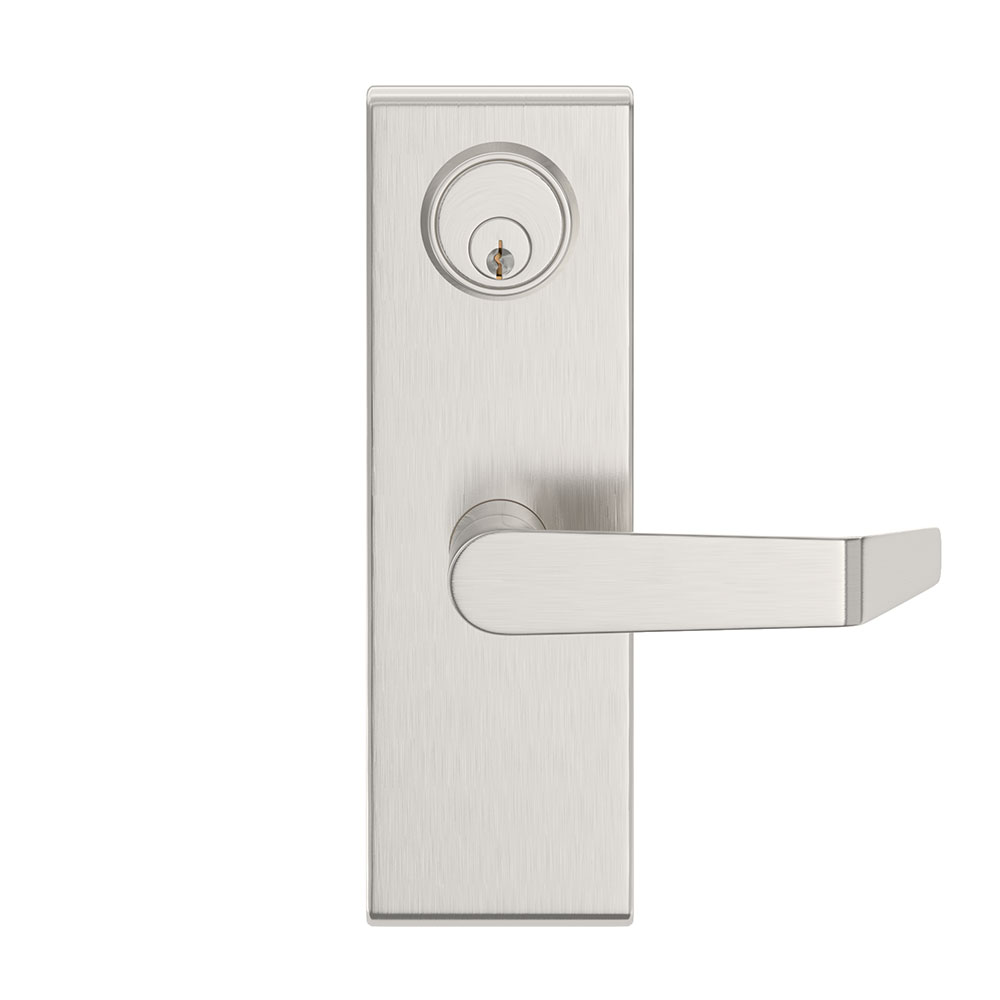

TDE-08 Escutcheon Lever Trim

  • Entry/classroom function – convertible to night latch
  • Steel, zinc dichromated chassis, stainless steel exterior housing
  • Thru-bolts to exit device for added strength
  • 5″ solid stainless steel lever, 2-7/8″ total projection
  • Escutcheon: 3″ wide x 9″ height x 3/4″ projection, covers 161 door prep
  • 1-3/4″ door thickness standard
  • Includes thru bolt posts and 1/4″-20 machine screws for installation
  • Includes 1-1/8″ mortise cylinder with a straight cam, 6-pin, Schlage C keyway, with 2 keys
  • Meets ADA requirements – A117.1 Accessibility code





Cross Reference

The TDE-2000R-L can be specified as a substitute for: Cal-Royal 2200 x NESC2000, Design Hardware 2000R x LE-08, Dorma 8300 x 8R08, Falcon 19R-L / 20R x L, Hager 4700 x 47CE, PDQ 4200 x 4-EW-08, Sargent x 3828 x 28C-LL, Von Duprin 22L, Yale 1800 x 426F / 2100 x 626F

Brand

Finishes

SP28/AL Aluminum Device – US32D/630 Satin Stainless Steel Lever

Length

3ft (for doors 2'4" to 3'0"), 4ft (for doors 3'4" to 4'0")

ANSI Grade

Meets ANSI A156.3 – Grade 1 Standards

Usage

Medium Duty

ADA Compliance

Meets ADA requirements ANSI A117.1 with Lever Trim

UL Listings

TDE-2000R Listed for Panic Exit Hardware – TDE-F2000R Listed for “A” Label 3 Hour Fire Doors

Fire Rating

TDE-2000R Non-Rated – TDE-F2000R 3 Hour UL Listed

Trim

TDE-08 Escutcheon Lever

Cylinder

1-1/8" mortise cylinder with straight cam (included)

Keyway

Schlage C Keyway

Latchbolt

Deadlocking latchbolt with 5/8″ projection

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Strike

Roller Strike with 5/8″ projection & 1/8″ shim

Fasteners

Wood, Machine & Self Tapping Machine Screws

Handing

Non-Handed, Field selected at the time of installation

Stile Type

Wide (Standard)

Minimum Stile Width

4" w/ Standard Roller Strike

Center Case

6″ Height x 2-5/16″ Wide x 2-1/2″ Thick

Mechanism Case

1-5/8″ Height x 1-13/16″ Wide

Projections

2-1/2″ Undogged – 1-13/16″ Dogged (Bar Depressed)

Warranty

Limited Lifetime Warranty
