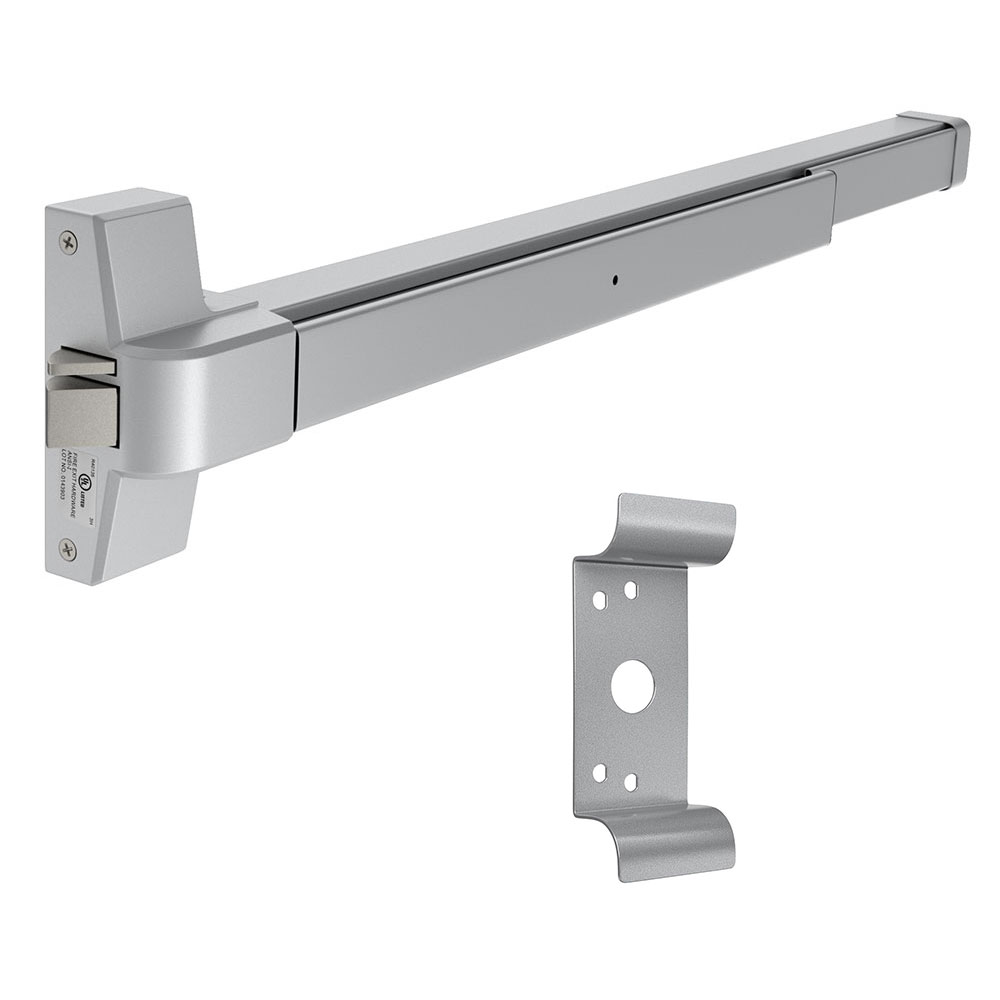

Trudoor TDE-2000R-DFP-NL Rim Exit Device with Night Latch Pull Trim

Usually Ships: Same Day
  • TDE-2000R with Night Latch Pull (cylinder sold separately)
  • Non-handed and reversible for easy installation
  • For use w/ 1-3/4″ thick metal or wood doors

Available Options:
Clear

Product Overview

Trudoor TDE-2000R-DFP-NL Grade-1 Rim Exit Device with TDE-DFP-NL Night Latch Pull Trim

TDE-2000 Series rim exit devices are an ideal choice for a wide variety of standard to medium-duty commercial door applications where durability, reliability, and code compliance are required at an economical price.  Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.

  • ANSI Function: 03 (Entrance by lever when latchbolt is retracted by key – Rim cylinder sold separately)
  • Rim cylinder must be ordered separately
  • UL Listed for Panic Exit Hardware
  • An ideal choice for doors that will be dogged down for push/pull applications
  • The Pull thru-bolts to head of exit device
  • Includes ASA strike (frame) filler plate and 161 door edge filler plate
  • Will cover 161 door prep – Includes cylinder sleeve for installation into 161 door prep
  • Rim cylinder required (sold separately)

ul-listed





Brand

Finishes

AL – Aluminum, BLK – Matte Black
Length

3ft (for doors 2'4" to 3'0"), 4ft (for doors 3'4" to 4'0")
ANSI Grade

Meets ANSI A156.3 – Grade 1 Standards
Usage

Medium Duty
UL Listings

Listed for Panic Exit Hardware
Fire Rating

None
Trim

TDE-DFP-NL (Night Latch Pull)
Escutcheon Plate Size

3″ wide x 8″ height x 1-11/16″ projection
Cylinder

1-1/8" Rim Cylinder (Sold Separately)
Latchbolt

Deadlocking latchbolt with 5/8″ projection
Dogging Feature

Half turn hex dogging standard
Strike

Roller Strike with 5/8″ projection & 1/8″ shim
Fasteners

Wood, Machine & Self Tapping Machine Screws
Handing

Non Handed – Completely Reversible
Stile Type

Wide (Standard)
Minimum Stile Width

4" w/ Standard Roller Strike
Center Case

6″ Height x 2-5/16″ Wide x 2-1/2″ Thick
Mechanism Case

1-5/8″ Height x 1-13/16″ Wide
Projections

2-1/2″ Undogged – 1-13/16″ Dogged (Bar Depressed)
