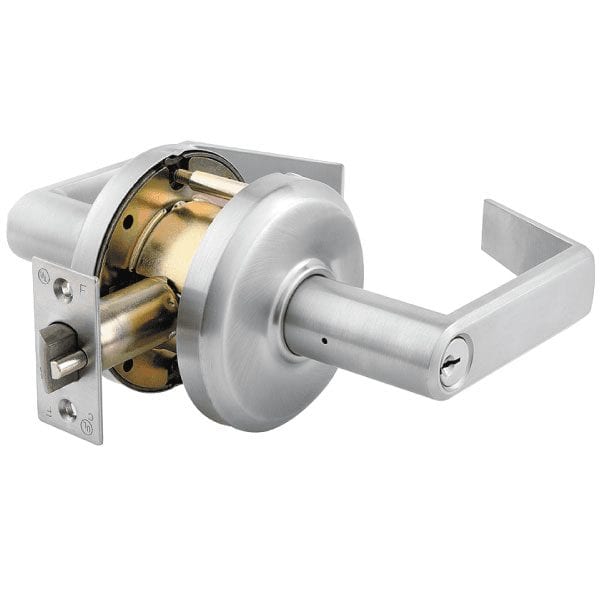

Stanley QCL270-E-626 Storeroom Lever Lockset

$99.00

Usually Ships: 10-20 Days
  • Medium Duty – ANSI/BHMA Grade 2
  • ADA Compliant, Fire-Rated – 626 Satin Chrome Finish
  • Storeroom Function – ANSI F86

A better solution for standard-duty applications.

STANLEY Commercial Hardware’s QCL200 standard-duty cylindrical lock series provides a better solution for light commercial applications. Designed for quick installation, easy retrofit, longer performance life, and vandal resistance, the QCL200 series offers a better initial value and significant long-term savings. The QCL200 series cylindrical locks combine quality, performance, and value—and are backed by the name more Americans trust with their security.

QCL270 / ANSI F86 Storeroom Function: Outside lever always locked. Entrance by key only. Inside lever unlocked and free for immediate egress. Clutch feature disengages outside lever from latch when locked to prevent vandalism.

  • 626 Satin Chrome Finish
  • Sierra (E) Lever Design
  • Tested to meet Grade 2 specification of 400,000 cycles
  • Standard clutching mechanism provides resistance to damage caused by physical force
  • Thru-bolt design and heavy-duty spring tension provides longer performance life and prevents lever sag
  • Compartmentalized packaging allows for quick and easy installation
Brand

Finishes

626 Satin Chrome

Lock Function

Classroom

Usage

Medium Duty

ANSI/BHMA Standard

ANSI/BHMA A156.2 Series—Grade 2

Cylinder & Keys

6-pin conventional, keyed different, with 2 keys

Keyway

Schlage C Keyway

Latch

1/2” throw, deadlocking – 1-1/8" x 2-1/4" face

Backset

2-3/4" standard

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

UL-cUL fire rated up to 3 hours

Lever Design

Sierra (E)

Door Thickness

1-3/8" to 1-3/4"
