Product Overview
Pemko 2113_V L-Shaped Door Bottom Shoe with Eco-V Vinyl Insert
This 2113_V L-Shaped Door Shoe is designed to protect the bottom of your door while providing a solid seal. It is compatible with 1 3/4″ thick doors and features notched fins for 50% free airflow. The dual-durometer casing made of heavy-duty PVC ensures strength, while the flexible fins allow for easy movement of the door. The notched seal option is ideal for applications where air circulation is required.
Hospitality product
- 2113 door shoes are ideal in any situation where airflow under the door are necessary, but privacy and light leakage are also a concern.
- Door shoes feature a durable aluminum channel and removable Eco-V® insert combination.
- Tested and approved under UL10C for fire; ASTM 283 for air flow and ASTM E90 and BS EN ISO 140-3: 1995 for sound control.
- Insert is constructed of soft, pliable black Eco-V® with an alternate notching pattern, allowing HVAC systems and bathroom fans to circulate air under the door while still blocking light and noise.

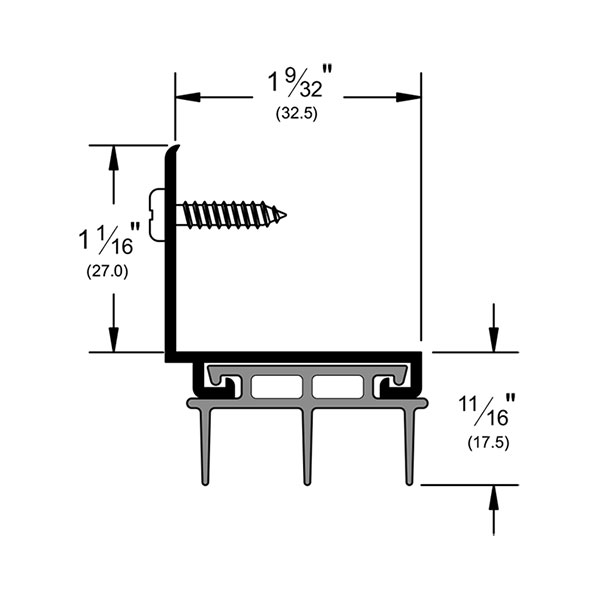

- WIDTH: 1-9/32” (32.5 mm)
- TOTAL HEIGHT: 1-3/4” (42.5 mm)
- HEIGHT: 1-1/16” (27.0 mm) (including insert)
Finishes
- 2113AV: A – Mill Finish Aluminum Aluminum with Black Eco-V insert
- 2113BSPV: BSP – Black Suede Powder Coat Aluminum with Black Eco-V insert
- 2113DV: D – Dark Bronze Anodized Aluminum with Black Eco-V insert
Ratings
- Air Infiltration Tested
- Sound Tested – ASTM E90
- Smoke Tested – UL1784
- Fire Rated – UL10C – Positive Pressure
- GREENGUARD Gold Certified
Brand | |
---|---|
Finishes | A – Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum, BSP Black Suede Powder Coat |
Length | 36", 48" |
Fire Rating | Fire Rated – UL10C – Positive Pressure |
