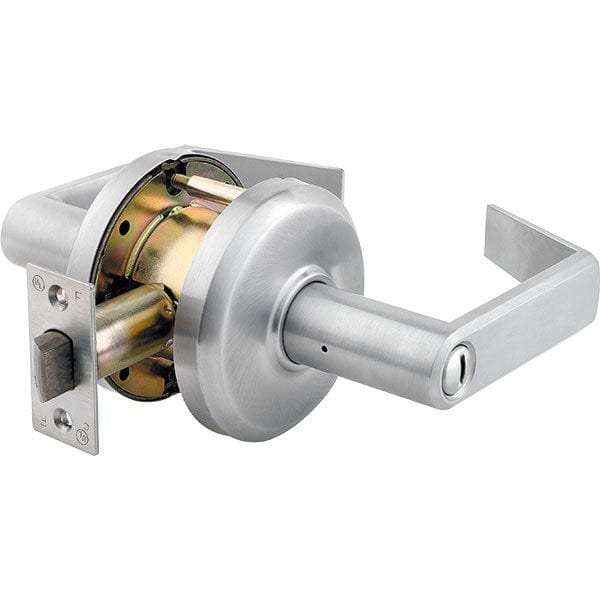

Dormakaba (Formerly Stanley) QCL240-E-626 Privacy Lever Lockset

$108.45

Usually Ships: 20-30 Business Days
  • Medium Duty – ANSI/BHMA Grade 2
  • ADA Compliant, Fire-Rated – 626 Satin Chrome Finish
  • Privacy Function – ANSI F76

A better solution for standard-duty applications.

STANLEY Commercial Hardware’s QCL200 standard-duty cylindrical lock series provides a better solution for light commercial applications. Designed for quick installation, easy retrofit, longer performance life, and vandal resistance, the QCL200 series offers a better initial value and significant long-term savings. The QCL200 series cylindrical locks combine quality, performance, and value—and are backed by the name more Americans trust with their security.

QCL240 / ANSI F76 Privacy Function: Push-button locking. Can be opened from outside with a small screwdriver. Turning inside lever or closing door releases button. Inside lever is always free for immediate egress. Clutch feature disengages outside lever from latch when locked to prevent vandalism.

  • 626 Satin Chrome Finish
  • Sierra (E) Lever Design
  • Tested to meet Grade 2 specification of 400,000 cycles
  • Standard clutching mechanism provides resistance to damage caused by physical force
  • Thru-bolt design and heavy-duty spring tension provides longer performance life and prevents lever sag
  • Compartmentalized packaging allows for quick and easy installation
Brand

Lock Function

Privacy

Usage

Medium Duty

ANSI/BHMA Standard

ANSI/BHMA A156.2 Series—Grade 2

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

UL-cUL fire rated up to 3 hours

Backset

2-3/4"

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Lever Design

Sierra (E)

Door Thickness

1-3/8" to 1-3/4"

Finishes

626 Satin Chrome

Latch

1/2" throw – 1-1/8" x 2-1/4" face
