Select SL21 HD Heavy Duty Full Surface Geared Continuous Hinge

Usually Ships: 2-3 Business Days
  • Tamper-resistant, removable door leaf cover
  • UL listed, fire-rated
  • Supports weights up to 600lbs

Available Options:
Clear

Product Overview

SURFACE MOUNT ON FACE OF EXISTING OR NEW DOOR AND FRAME. Ideal for renovation/retrofit or new construction. Hinge failure is the most common cause of entrance failure. The revolutionary SELECT geared continuous hinge puts an end to costly and frustrating hinge failure problems.

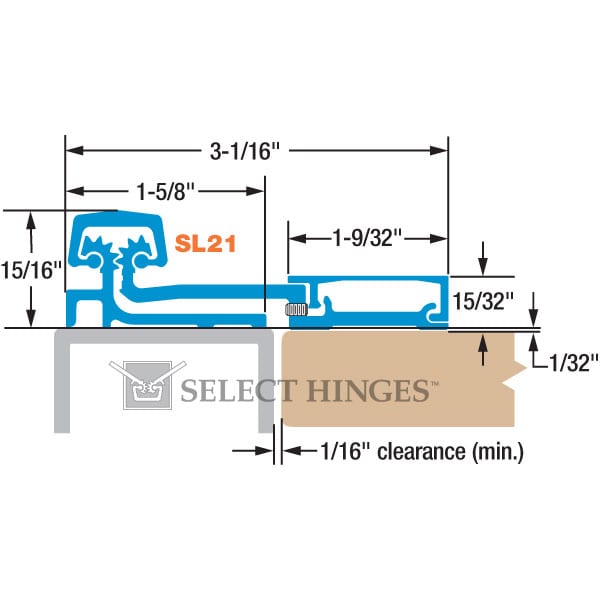

Swing-clear action. Tamper-resistant, removable door leaf cover. 1/32″ door inset. Standard barrel nuts accommodate 1-3/8″ to 1-3/4″ doors.

SL21 HD geared continuous hinges are BHMA Grade 1 certified.

  • Lifetime lubrication
  • Anodized after machining
  • Consistent templating

Brand

Finishes

Clear Anodized Aluminum, Dark Bronze Anodized Aluminum
Length

83" (for 7'0" door), 85" (for 7'2" Door), 95" (for 8'0" door)
Material

Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings.
Load / Frequency

For 1-3/4" doors, 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).Heavy Duty – Tested per BHMA standards. Up to 200 lb. doors (high-frequency) and up to 400 lb. doors (medium-frequency) without frame or door reinforcement; up to 600 lb. doors (low-frequency) with the use of Rivnuts in the frame.
Usage

Heavy Duty
ANSI/BHMA Standard

ANSI/BHMA A156.26-2006 Grade 1
Fire Rating

All SELECT hinges have been UL® tested and listed to 90-minute Fire Rating Standards without fire pins or studs—at no extra cost
Continuous Hinge Type

Full Surface
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
