Select SL57 HD Heavy Duty Full Surface Geared Continuous Hinge for Narrow Face Frame

Usually Ships: 2-3 Business Days
  • Fits narrow (7/8″) frame face
  • UL listed, fire-rated
  • Supports weights up to 600lbs

Available Options:

Clear

SURFACE MOUNT ON FACE OF EXISTING OR NEW DOOR AND FRAME. Ideal for renovation/retrofit or new construction. Hinge failure is the most common cause of entrance failure. The revolutionary SELECT geared continuous hinge puts an end to costly and frustrating hinge failure problems.

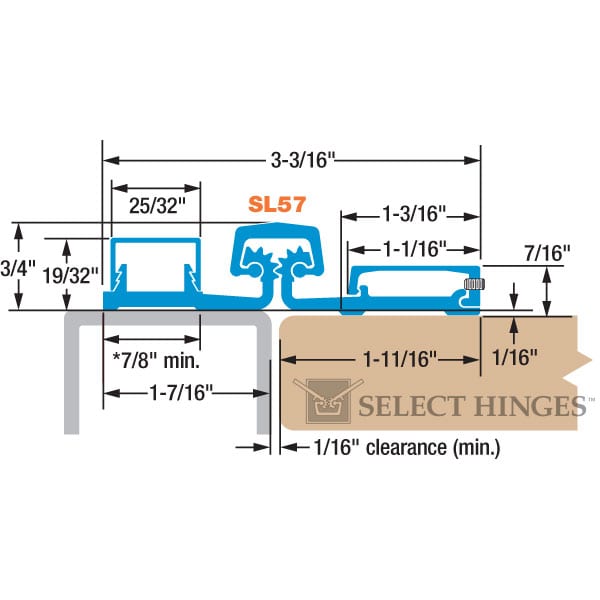

Fits narrow (7/8″) frame face. Tamper resistant, removable door leaf cover. 1/16″ door inset. Standard barrel nuts accommodate 1-3/8″ to 1-3/4″ doors.

SL57 HD geared continuous hinges are BHMA Grade 1 certified.

  • Lifetime lubrication
  • Anodized after machining
  • Consistent templating

Brand

Finishes

Clear Anodized Aluminum, Black Anodized Aluminum, Dark Bronze Anodized Aluminum

Length

83" (for 7'0" door), 85" (for 7'2" Door), 95" (for 8'0" door)

Material

Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings.

Load / Frequency

For 1-3/4" doors, 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).Heavy Duty – Tested per BHMA standards. Up to 200 lb. doors (high-frequency) and up to 400 lb. doors (medium-frequency) without frame or door reinforcement; up to 600 lb. doors (low-frequency) with the use of Rivnuts in the frame.

Usage

Heavy Duty

ANSI/BHMA Standard

ANSI/BHMA A156.26-2006 Grade 1

Fire Rating

All SELECT hinges have been UL® tested and listed to 90-minute Fire Rating Standards without fire pins or studs—at no extra cost

Continuous Hinge Type

Full Surface

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA

Full Surface Geared Instructions Full Surface Geared Instructions (ESPAÑOL)
