Product Overview
Schlage ND80BDEU RHO Grade 1 Electrified Cylindrical Lock, Storeroom Function, 12-24V DC, Fail Secure, 2-3/4″ Backset, Rhodes Lever, SFIC Prep
The Schlage electrified ND Grade 1 Cylindrical lock offers offer superior energy efficiency and flexibility in wired electrified applications. The Schlage electrified ND Grade 1 Cylindrical lock has been completely redesigned to offer superior energy efficiency and flexibility in wired electrified applications. Wired electrified locks compliment the mechanical offering and are typically incorporated into a wired access control system or used independently with a remote access switch (e.g. switch behind a receptionist desk).
Interchangeable core users can enjoy the convenience of fast rekeying without having to disassemble the lock. This feature is very useful in applications where a high frequency of core changes are needed.
Electrically unlocking/ fail secure – Outside lever continuously locked until unlocked by key or electric current • Auxiliary latch deadlocks latchbolt when door is closed • Inside lever always free for immediate exit.
SFIC = Small Size Interchangeable Core (sold separately)
- Exceeds ANSI A156.2 Series 4000 Grade 1 requirements
- UL listed for 3-hour fire door
- Universal Input Voltage – autodetects 12 through 24V DC for installation flexibility
- Electrical requirements: 24V AC, .35 amps or 24V DC, .15 amps
- Operating Temperature: Maximum +151 1/2F, Minimum -31 1/2F
The electrified ND is ideally used in:
- High-traffic areas, where line power ensures continuous operation
- New construction, where electrified door prep, hinges, and wiring can easily be incorporated into the building
Brand | |
---|---|
Finishes | 626 Satin Chrome |
Lock Function | Electrified Storeroom |

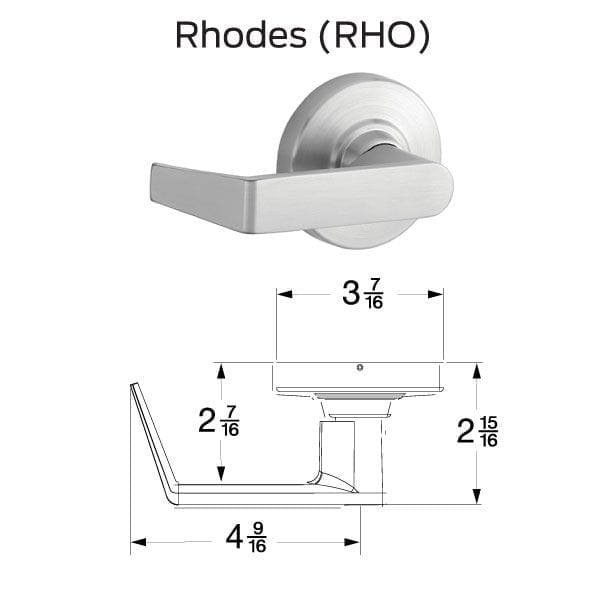

Lever Design | RHO (Rhodes) |
Usage | Heavy Duty |
ANSI/BHMA Standard | Meets and Exceeds ANSI/BHMA A156.2, Series 4000, Grade 1 |
ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
Fire Rating | UL/cUL listed up to 3 Hours (A Label) – UL symbol on the latch front |
Handing | Non-Handed |
Backset | 2-3/4" |
Latch | 1/2” throw, deadlocking – 1-1/8" x 2-1/4" face |
Strike | 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
Door Thickness | 1-3/4" |
