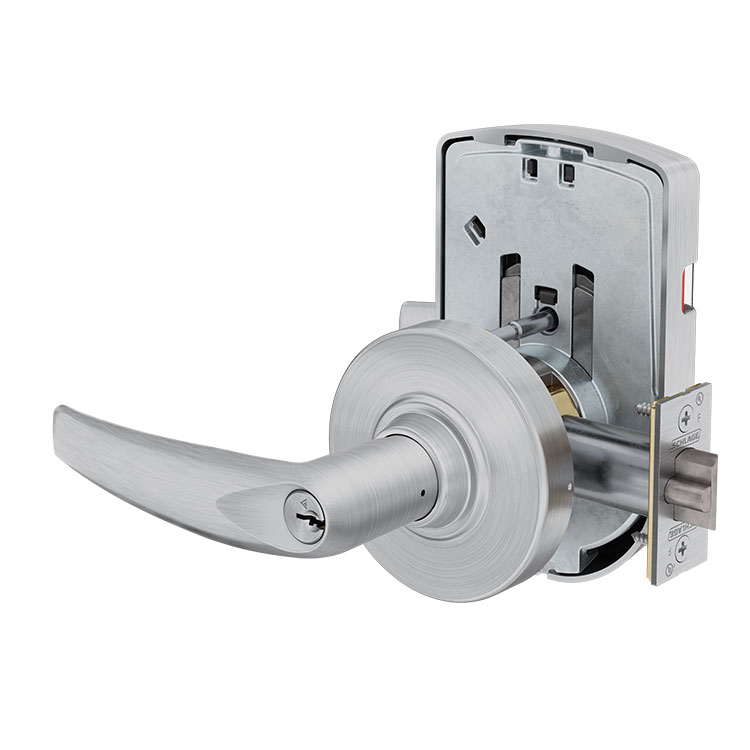

Schlage ND50PD ATH (Athens) Entrance/Office Lever Lock with IS-LOC (LOCKED/UNLOCKED) Inside Indicator Escutcheon Trim

Usually Ships: 20-30 Business Days
  • Extra Heavy Duty, ANSI Grade 1 Certified
  • ANSI Function F82 – Entrance/Office

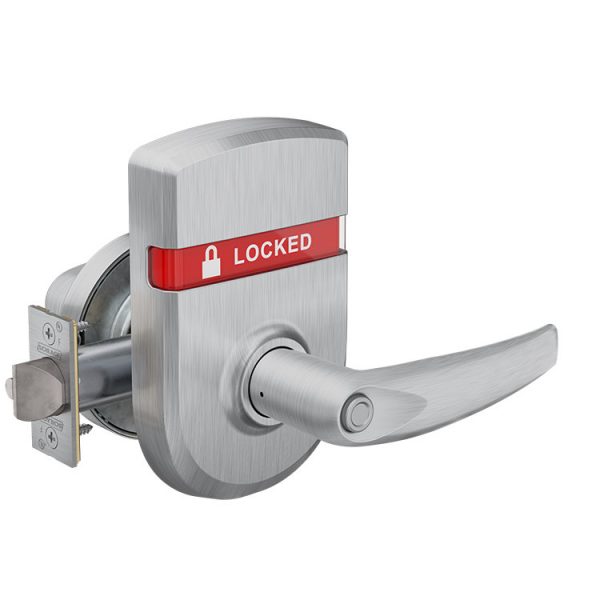

  • Includes inside indicator (LOCKED/UNLOCKED)

Available Options:
Clear

Product Overview

Schlage ND50PD ATH (Athens) Grade-1 Entrance/Office Lever Lock with IS-LOC (LOCKED/UNLOCKED) Inside Indicator Escutcheon Trim

The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is regularly used in healthcare, education, government, office, retail, and other commercial applications.

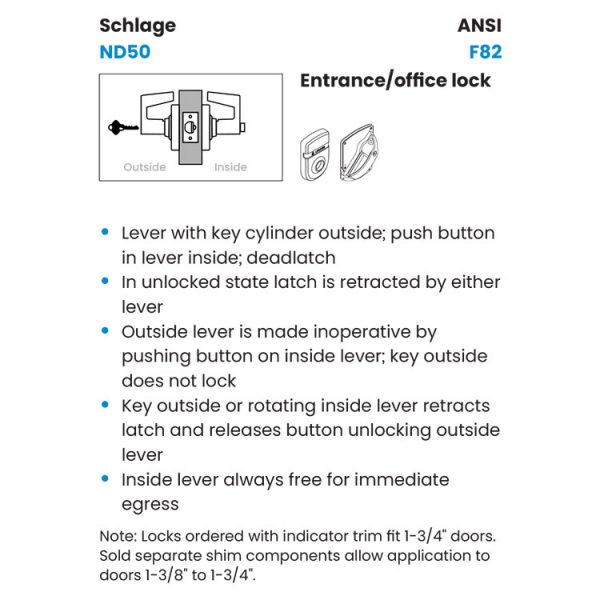

ANSI Function F82 – Lever with key cylinder outside; push button in lever inside; deadlatch • In unlocked state latch is retracted by either lever • Outside lever is made inoperative by pushing button on inside lever; key outside does not lock • Key outside or rotating inside lever retracts latch and releases button unlocking outside lever • Inside lever always free for immediate egress

  • Significantly exceeds ANSI/BHMA Grade 1 requirements
  • Withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks
  • Not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles
  • The strongest cylindrical lock Schlage has ever built

Brand

Finishes

613 Oil Rubbed Bronze, 622 Matte Black, 626 Satin Chrome
Lock Function

Entry (Entrance), Office
Keyway

Schlage C Keyway, Schlage S123 Keyway
Usage

Heavy Duty
ANSI/BHMA Standard

Meets and Exceeds ANSI/BHMA A156.2, Series 4000, Grade 1
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

UL/cUL listed up to 3 Hours (A Label) – UL symbol on the latch front
Handing

Handed – LH, RH
Cylinder & Keys

6-pin conventional, keyed different, with 2 keys
Backset

2-3/4"
Latch

1/2” throw, deadlocking – 1-1/8" x 2-1/4" face
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Lever Design

ATH (Athens)
Door Thickness

1-3/4"
Warranty

10 Years
Schlage_ND_Series_Standard_Installation_Instructions
