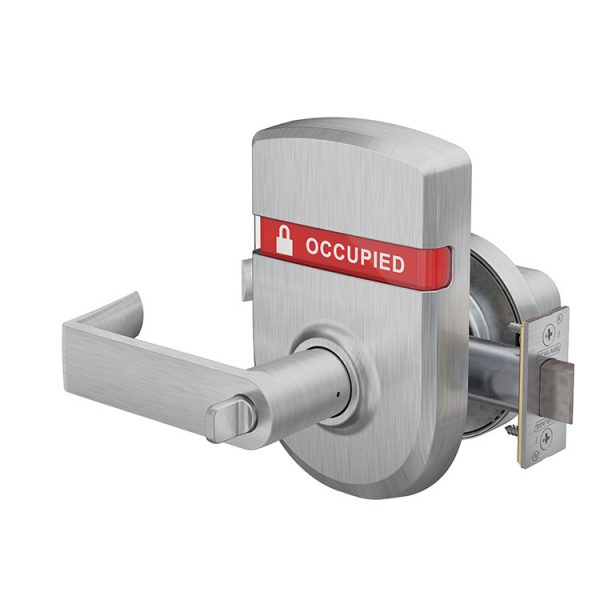

Schlage ND44S RHO (Rhodes) Hospital Privacy Lever Lock with OS-OCC (OCCUPIED/VACANT) Outside Indicator Escutcheon Trim

Usually Ships: 20-30 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade 1
  • Includes outside indicator (OCCUPIED/VACANT)
  • Outside turn button provides emergency access

Available Options:
Clear

Product Overview

Schlage ND44S RHO Grade-1 Cylindrical Lever Lock, Hospital Privacy Function, Rhodes Lever, OS-OCC (OCCUPIED/VACANT) Outside Indicator Escutcheon Trim

The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is regularly used in healthcare, education, government, office, retail, and other commercial applications.

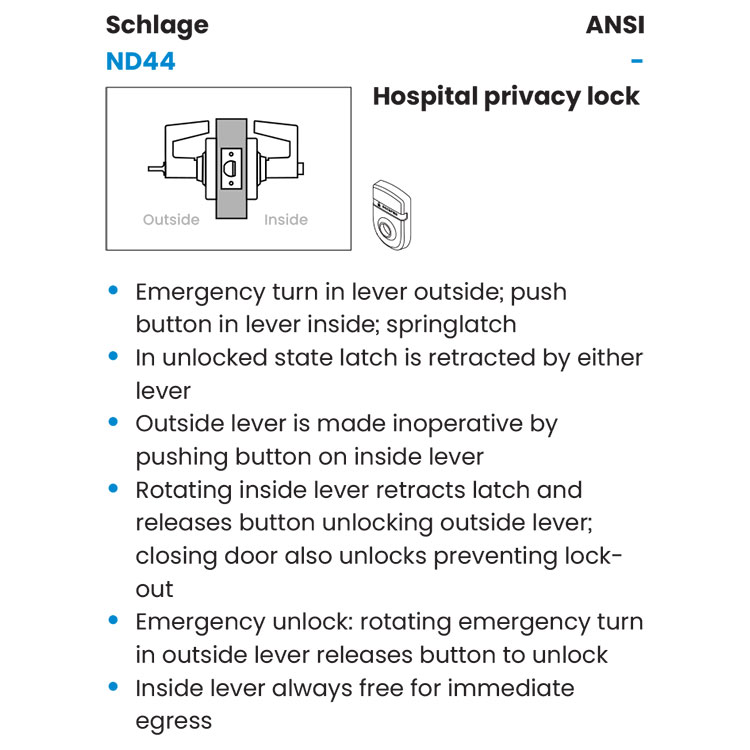

Emergency turn in lever outside; push button in lever inside; springlatch. In unlocked state latch is retracted by either lever. Outside lever is made inoperative by pushing button on inside lever. Rotating inside lever retracts latch and releases button unlocking outside lever; closing door also unlocks preventing lockout. Emergency unlock: rotating emergency turn in outside lever releases button to unlock. Inside lever always free for immediate egress.

  • Indicator window size is unmatched in the market using an escutcheon style trim to allow the message to run the full width of the lock at a height of .6” for maximum visibility
  • Can be installed using the same standard door prep as any ND Series lock
  • Fits 1-3/4″ thick doors
  • Significantly exceeds ANSI/BHMA Grade 1 requirements
  • Withstands 3,100 in-lb. of abusive lever torque
  • Shows nearly zero droop or wobble after 16 million cycles
  • The strongest cylindrical lock Schlage has ever built
  • ADA compliant lever handles

Brand

Finishes

613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 626 Satin Chrome, 626AM Satin Chrome Antimicrobial, 643e Aged Bronze
Lock Function

Hospital Privacy, Privacy w/ Indicator
Lever Design

RHO (Rhodes)
Usage

Heavy Duty
ANSI/BHMA Standard

Meets and Exceeds ANSI/BHMA A156.2, Series 4000, Grade 1
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

UL/cUL listed up to 3 Hours (A Label) – UL symbol on the latch front
Handing

Handed – LH, RH
Backset

2-3/4"
Latch

1/2" throw – 1-1/8" x 2-1/4" face
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Door Thickness

1-3/4"
Warranty

10 Years
Schlage_ND_Series_Standard_Installation_Instructions
