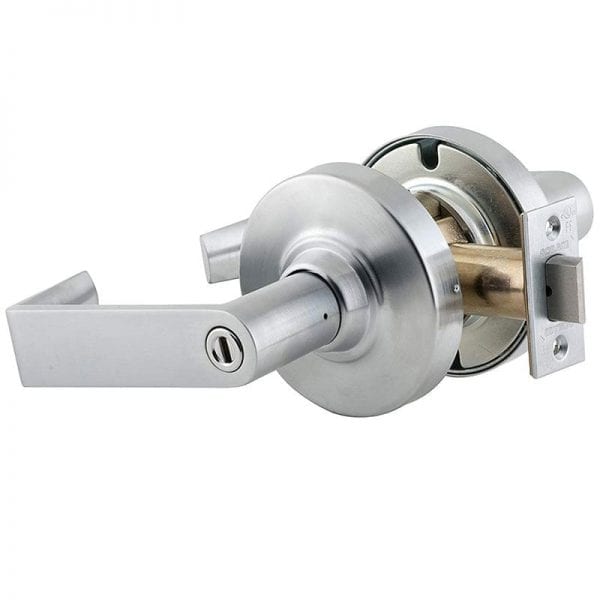

Schlage ND40S RHO (Rhodes) Heavy Duty Privacy Lever Lock

Usually Ships: 1-2 Days
  • Extra Heavy Duty – ANSI Grade 1
  • Bath/Privacy Function – Push Button Locking
  • ADA Compliant Lever Handles

Available Options:

  • Black
  • Bright Brass
  • Bright Chrome
  • Dark Bronze
  • Satin Brass
  • Satin Bronze
  • Satin Chrome
  • Satin Chrome AM (Antimicrobial)
Clear

Regarded as one of the world’s strongest cylindrical locksets, ND Series locks have been the most popular Schlage product ever since Walter Schlage invented the cylindrical lock in 1920. The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail, and other commercial applications. Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.

ANSI Function F76 – Latch bolt by levers. Outside lever locked by push button in inside lever. Rotating inside lever or closing door releases push button. Emergency release in outside lever unlocks door.

  • Significantly exceeds ANSI/BHMA Grade 1 requirements
  • Withstands 3,100 in-lb. of abusive lever torque
  • Shows nearly zero droop or wobble after 16 million cycles
  • The strongest cylindrical lock Schlage has ever built

Brand

Finishes

605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 622 Matte Black, 625 Bright Chrome, 626 Satin Chrome, 626AM Satin Chrome Antimicrobial

Lock Function

Privacy

Lever Design

RHO (Rhodes)

Usage

Heavy Duty

ANSI/BHMA Standard

Meets and Exceeds ANSI/BHMA A156.2, Series 4000, Grade 1

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

UL/cUL listed up to 3 Hours (A Label) – UL symbol on the latch front

Handing

Non-Handed

Backset

2-3/4" standard

Latch

1/2" throw – 1-1/8" x 2-1/4" face

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Door Thickness

1-3/4"

Warranty

10 Years

Schlage_ND_Series_Standard_Installation_Instructions
