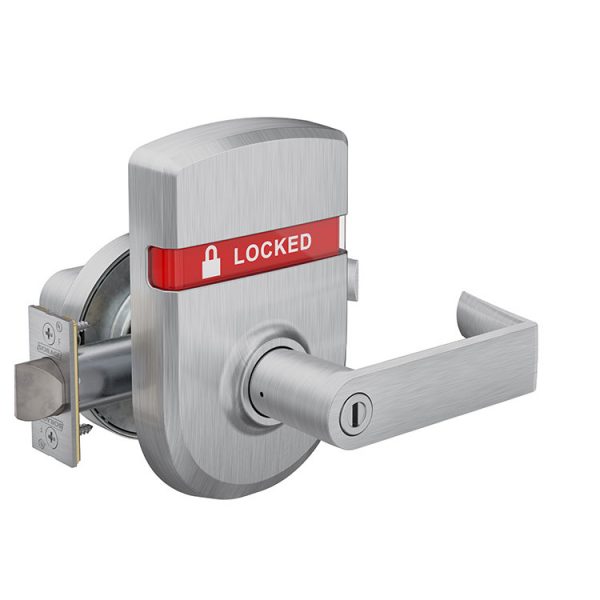

Schlage ND40S RHO (Rhodes) Privacy Lever Lock with OS-LOC (LOCKED/UNLOCKED) Outside Indicator Escutcheon Trim

Usually Ships: 20-30 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade 1
  • Ideal for high-use commercial restroom doors
  • Includes outside indicator (LOCKED/UNLOCKED)

Available Options:

Clear

Schlage ND40S RHO Grade-1 Cylindrical Lever Lock, Bath/Bedroom Privacy Function, Rhodes Lever, OS-LOC (LOCKED/UNLOCKED) Outside Indicator Escutcheon Trim

The ND Series is ANSI/BHMA Grade 1 certified and performs beyond the Grade 1 standards. The Schlage ND is regularly used in healthcare, education, government, office, retail, and other commercial applications.

ANSI Function F76 – Lever with emergency release recessed slot outside; push button in lever inside; springlatch. In unlocked state latch is retracted by either lever. Outside lever is made inoperative by pushing button on inside lever. Rotating inside lever retracts latch and releases button unlocking outside lever; closing door also unlocks preventing lockout. Emergency unlock: an emergency key (sold separate) or small, flat screwdriver inserted in outside lever and turned releases button to unlock. Inside lever always free for immediate egress

  • Indicator window size is unmatched in the market using an escutcheon style trim to allow the message to run the full width of the lock at a height of .6” for maximum visibility
  • Can be installed using the same standard door prep as any ND Series lock
  • Fits 1-3/4″ thick doors
  • Significantly exceeds ANSI/BHMA Grade 1 requirements
  • Withstands 3,100 in-lb. of abusive lever torque
  • Shows nearly zero droop or wobble after 16 million cycles
  • The strongest cylindrical lock Schlage has ever built
  • ADA compliant lever handles

Brand

Finishes

613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black, 626 Satin Chrome, 626AM Satin Chrome Antimicrobial, 643e Aged Bronze

Lock Function

Privacy w/ Indicator

Lever Design

RHO (Rhodes)

Usage

Heavy Duty

ANSI/BHMA Standard

Meets and Exceeds ANSI/BHMA A156.2, Series 4000, Grade 1

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

UL/cUL listed up to 3 Hours (A Label) – UL symbol on the latch front

Handing

Handed – LH, RH

Backset

2-3/4"

Latch

1/2" throw – 1-1/8" x 2-1/4" face

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Door Thickness

1-3/4"

Warranty

10 Years

Schlage_ND_Series_Standard_Installation_Instructions
