Sargent 10XG05-VSLL Heavy Duty Entrance or Office Visual Status Lever Lock with Indicator

Usually Ships: 30-45 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade 1
  • ANSI F109 entry or office function
  • Indicator is highly visible from all angles

Available Options:


Sargent 10XG05-VSLL 10X Line Cylindrical Lever Lock with VSL Trim, Entrance or Office Function, VSL Trim Design, L Lever – 2-3/4″ B.S.

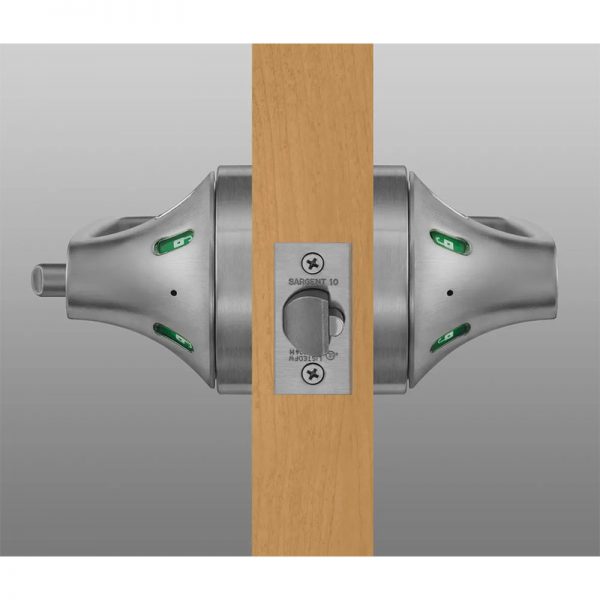

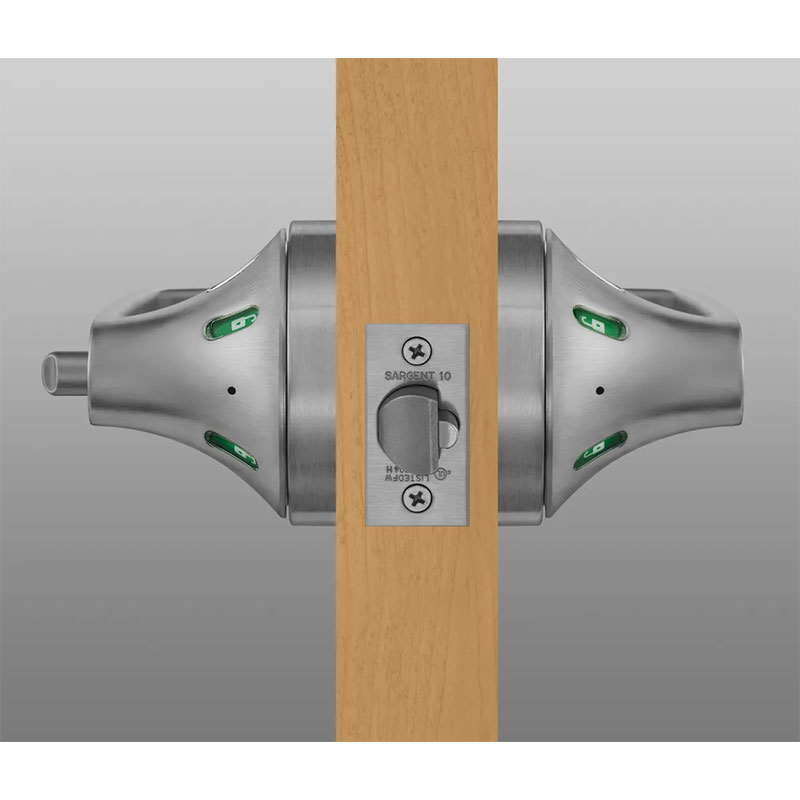

The 10X Line cylindrical lock with status indicators, is the ultimate intersection of security and privacy. Engineered for easy installation in any space, it ensures instant visibility of the door’s lock status. Featuring status indicator windows for optimal visibility. Built on the robust 10X Line lock body, it exceeds Grade 1 standards, making it ideal for high-traffic restrooms, classrooms, or rooms requiring additional privacy.

The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces.

  • Provides maximum resistance to vandalism and other malicious attacks
  • Certified above & beyond testing to withstand high volume traffic
  • Independent return springs enable the lock to exceed ANSI/ BHMA A156.2 Grade 1 cycle requirements without lever sag

ANSI F109 Entrance or Office

  • Deadlocking latch
  • Latch by either lever unless outside lever is locked by push/turn button in inside lever
  • Push button released by key outside or lever inside
  • Turn button must be released manually
  • Key retracts latch when outside lever is locked

Indicator Option Codes
10X Line indicator option codes are designed to convey color and side of door desired in one simple code. To order, specify option code.

  • V30: Single Indicator Outside (Icons Only: Green/Red)
  • V33: Double Indicator (Icons Only: Green/Red Outside – Green/Red Inside)
  • V60: Single Indicator Outside (Icons Only: White/Red)
  • V66: Double Indicator (Icons Only: White/Red Outside – White/Red Inside)


  • Heavy-duty commercial and institutional interior and exterior doors
  • Offices
  • Schools/Universities
  • Hospitals
  • Manufacturing facilities




BSP Black Suede Powder Coat, US10BE (613e) Dark Oxidized Satin Bronze, Equivalent, US26D (626) Satin Chrome

Indicator Option Code

V30 Single Indicator Outside (Green/Red), V33 Double Indicator (Green/Red Outside – Green/Red Inside), V60 Single Indicator Outside (White/Red), V66 Double Indicator (White/Red Outside – White/Red Inside)

Lock Function

Entry (Entrance), Office


Heavy Duty

ANSI/BHMA Standard

Certified ANSI A156.2 Series 4000 — Grade 1

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

Fire Rated – UL10C – Positive Pressure

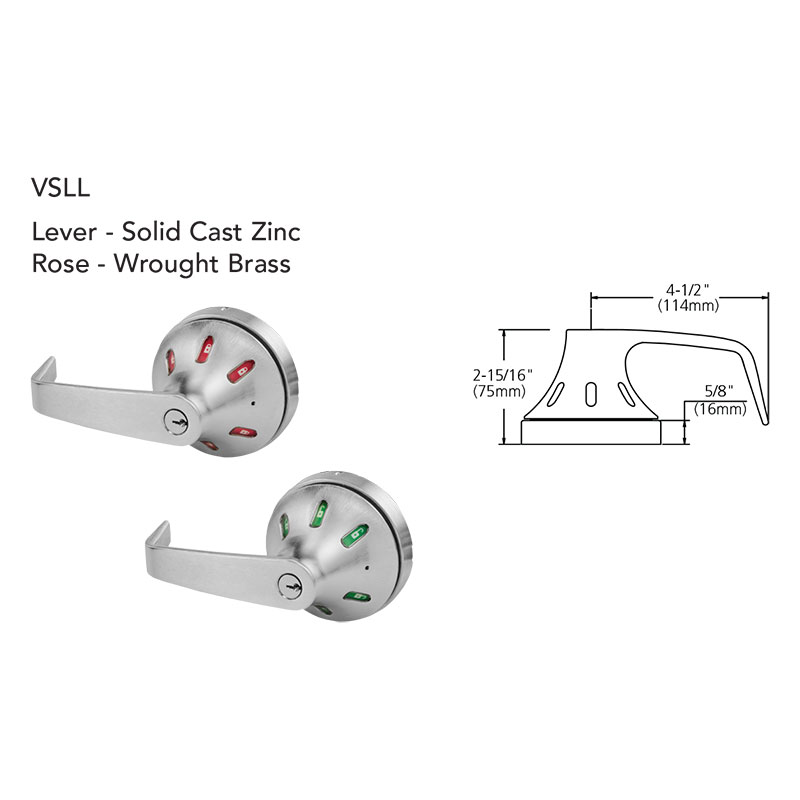

Lever Design


Rose Design


Cylinder & Keys

6-pin conventional, 0-bitted, with 2 keys


Sargent LA Keyway


808 Curved Lip ANSI Strike, 4-7/8" x 1-1/4"


Stainless Steel Deadlocking/Guarded Latch – 1/2” throw, 1-1/8" x 2-1/4" face



Door Thickness


Minimum Stile Width



10 Year Limited

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
