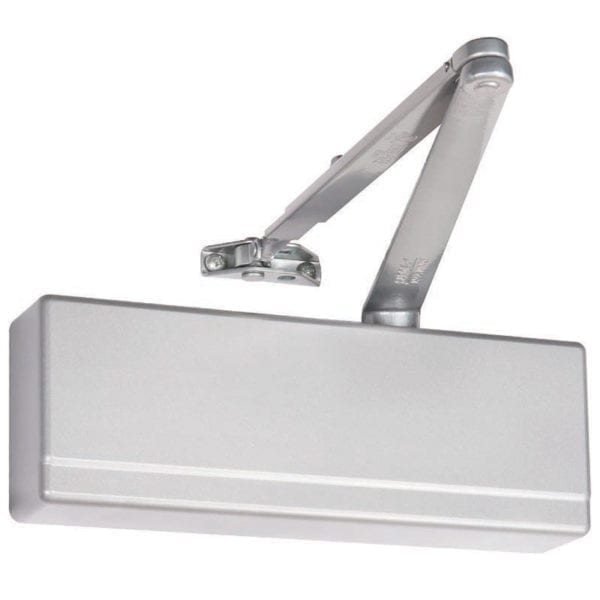

Sargent 281 UO Door Closer

Usually Ships: 1-2 Business Days
  • Heavy Duty – BHMA/ANSI Certified Grade-1
  • Adjustable Spring Size 1-6
  • Regular, Top Jamb, or Parallel Arm Mount

Available Options:

Clear

Sargent 281 Series Cast Iron Closer with Universal Arm Package, 281-UO-TB

Designed to meet the needs of facilities maintaining “cast iron” specifications, the 281 Series Powerglide® Cast Iron Door Closer features a heavy-duty one-piece cast iron body for superior strength and wear resistance. With front-facing valves, the 281 series can be easily installed and maintained—for interior and exterior applications.

  • UO – Universal arm package provides brackets and arms to install closer in standard, top jamb or parallel applications
  • TB – Packed w/thru bolts (TB), wood & machine screws
  • Operates effectively in extreme heat and cold without readjustment
  • Meets ADA requirements in all applications
  • Retrofits discontinued SARGENT 1250/1251

Brand

Finishes

EAB/696 Sprayed Brass Enamel, EN/689 Sprayed Aluminum Enamel, EB/690 Sprayed Bronze Enamel, BSP Black Suede Powder Coat

Usage

Heavy Duty

Templating (Hole Pattern)

1" x 10-3/8"

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

ANSI/BHMA Standard

ANSI/BHMA Grade 1 156.4 standards

Fire Rating

UL and cUL Listed – up to 3 Hours

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fasteners

Packed w/Thru Bolts (TB), Wood & Machine Screws

Body Construction

Cast Iron Body

Fluid

All Weather Fluid

Cover

Full Cover

Spring Size

Adjustable Spring Size 1-6

Handing

Non-Handed

Warranty

10 Year Limited
