Sargent 1431-UO Door Closer

Usually Ships: 1-2 Business Days
  • Heavy Duty, BHMA/ANSI Certified Grade-1
  • Adjustable Spring Size 1-6
  • Regular, Top Jamb, or Parallel Arm Mount

Available Options:

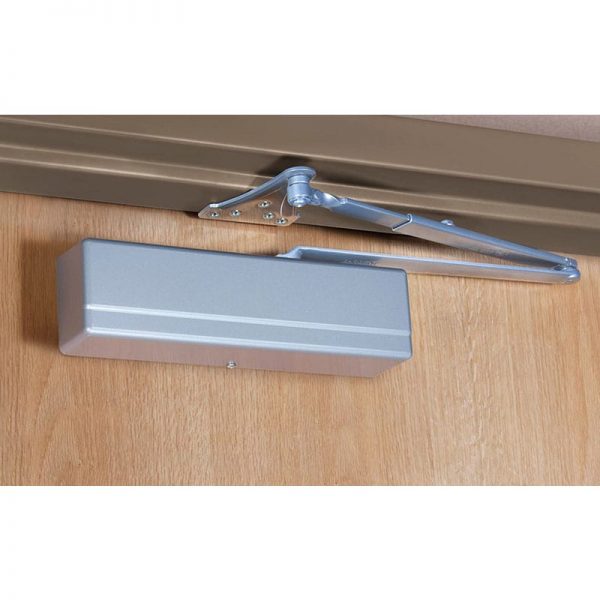

1431 Series Powerglide® Door Closer with Universal Arm package, 1431-UO-TB

Featuring heavy-duty construction for superior strength and wear resistance, the 1431 Series Powerglide® Door Closer is ideally suited for highly trafficked environments like schools, healthcare facilities, and office and commercial buildings. With front-facing valves, the 1431 series can be easily installed and maintained—for interior and exterior applications.

  • UO – Universal arm package provides brackets and arms to install closer in standard, top jamb or parallel applications
  • TB – Packed w/thru bolts (TB), wood & machine screws
  • Operates effectively in extreme heat and cold without readjustment
  • Meets ADA requirements in all applications
  • Retrofits discontinued SARGENT 1230/1231



EP/691 Sprayed Satin Bronze, EAB/696 Sprayed Brass Enamel, EN/689 Sprayed Aluminum Enamel, EB/690 Sprayed Bronze Enamel, BSP Black Suede Powder Coat, WSP White Suede Powder Coat

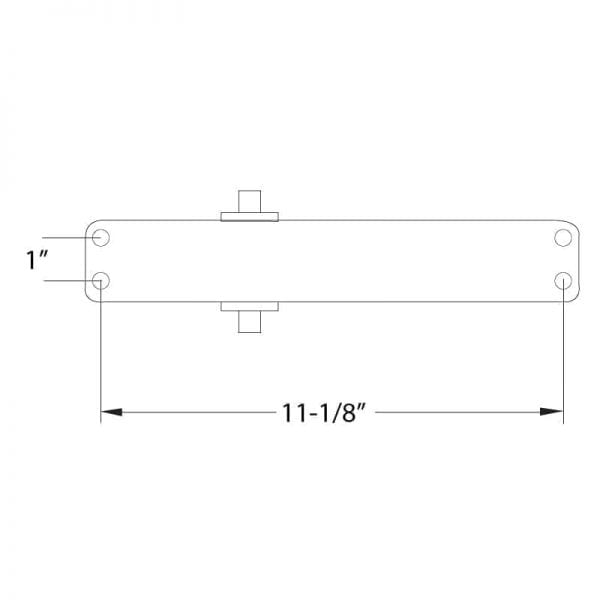

Templating (Hole Pattern)

1" x 11-1/8"


Heavy Duty

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

ANSI/BHMA Standard

ANSI/BHMA Grade 1 156.4 standards

Fire Rating

UL and cUL Listed – up to 3 Hours

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Body Construction

Cast Aluminum Body


Packed w/Thru Bolts (TB), Wood & Machine Screws


Full Cover

Spring Size

Adjustable Spring Size 1-6




10 Year Limited
