Sargent 10U15-LL Heavy Duty Passage Lever Set

Usually Ships: 1-2 Days
  • Heavy Duty – ANSI Grade 1
  • ADA Compliant – 3 Hour Fire-Rated
  • ANSI F75 Passage Function

Available Options:

  • Bright Brass
  • Dark Bronze
  • Satin Bronze
  • Satin Chrome

Enduring more than 1.5 times the industry standard of abusive force, the 10 Line lock is a heavy-duty key-in-lever handle lockset that also exceeds the ANSI/BHMA 156.2 Series 4000 Grade 1 standards by nine times, at over 9 million cycles. And in addition to preventing unwanted entry, the 10 Line is designed to conform to national and state fire and handicapped requirements.

  • Installs in one minute or less
  • Adapts to fit multiple thru-bolt positions
  • Efficient Installation: Pre-assembled components make installation quick and easy
  • Flexible: accommodates retrofit applications and a variety of door preparations

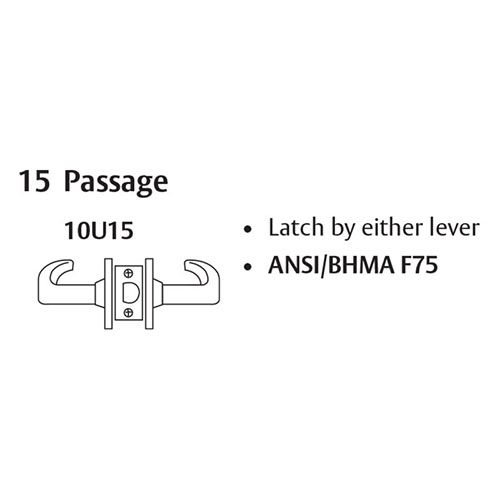

ANSI F75 Passage

  • Latch by either lever


605 Bright Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 626 Satin Chrome

Lock Function



Heavy Duty

ANSI/BHMA Standard

Certified ANSI A156.2 Series 4000 — Grade 1

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

Fire Rated – UL10C – Positive Pressure


2-3/4" standard


4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation


1/2" throw – 1-1/8" x 2-1/4" face



Door Thickness

1-3/4" to 2"
