Sargent 28-10G05-LL Heavy Duty Entrance or Office Lever Lockset, L Lever, L Rose

Usually Ships: 1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade 1
  • ADA Compliant, 3 Hour Fire-Rated
  • ANSI F109 Entrance or Office

Available Options:

Clear

Product Overview

Sargent 28-10G05-LL Grade-1 Cylindrical Lock, Entry/Office Function, L Lever, L Rose, ASA Strike

Enduring more than 1.5 times the industry standard of abusive force, the 10 Line lock is a heavy-duty key-in-lever handle lockset that also exceeds the ANSI/BHMA 156.2 Series 4000 Grade 1 standards by nine times, at over 9 million cycles.

  • Installs in one minute or less
  • Adapts to fit multiple thru-bolt positions
  • Efficient Installation: Pre-assembled components make installation quick and easy
  • Flexible: accommodates retrofit applications and a variety of door preparations

ANSI F109 Entrance or Office

  • Deadlocking latch
  • Latch by either lever unless outside lever is locked by push/turn button in inside lever
  • Push button released by key outside or lever inside
  • Turn button must be released manually
  • Key retracts latch when outside lever is locked

Applications

  • Heavy-duty commercial and institutional interior and exterior doors
  • Offices
  • Schools/Universities
  • Hospitals
  • Manufacturing facilities

codes

Brand

Finishes

605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 626 Satin Chrome, BSP Black Suede Powder Coat
Lock Function

Entry (Entrance), Office

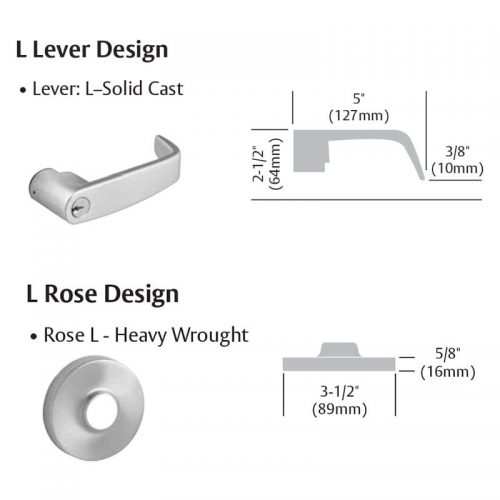

Lever Design

L
Rose Design

L
Usage

Heavy Duty
ANSI/BHMA Standard

Certified ANSI A156.2 Series 4000 — Grade 1
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

Fire Rated – UL10C – Positive Pressure
Cylinder & Keys

6-pin conventional, keyed different, with 2 keys
Keyway

Sargent LA Keyway
Latch

1/2” throw, deadlocking – 1-1/8" x 2-1/4" face
Backset

2-3/4" standard
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Handing

Non-Handed
Door Thickness

1-3/4" to 2"
