Sargent 28-10G38-LL Heavy Duty Classroom Security Intruder Lever Lockset, L Lever, L Rose

Usually Ships: 1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade 1
  • ADA Compliant, 3 Hour Fire-Rated
  • Classroom Security Intruder Function

Available Options:

Clear

Product Overview

Sargent 28-10G38-LL Grade-1 Cylindrical Lock, Classroom Security Intruder Function, L Lever, L Rose, ASA Strike

The 10 Line lock is a heavy-duty handle lockset that exceeds the ANSI/BHMA 156.2 Series 4000 Grade 1 standards by nine times, at over 9 million cycles.

  • Installs in one minute or less
  • Adapts to fit multiple thru-bolt positions
  • Efficient Installation: Pre-assembled components make installation quick and easy
  • Flexible: accommodates retrofit applications and a variety of door preparations

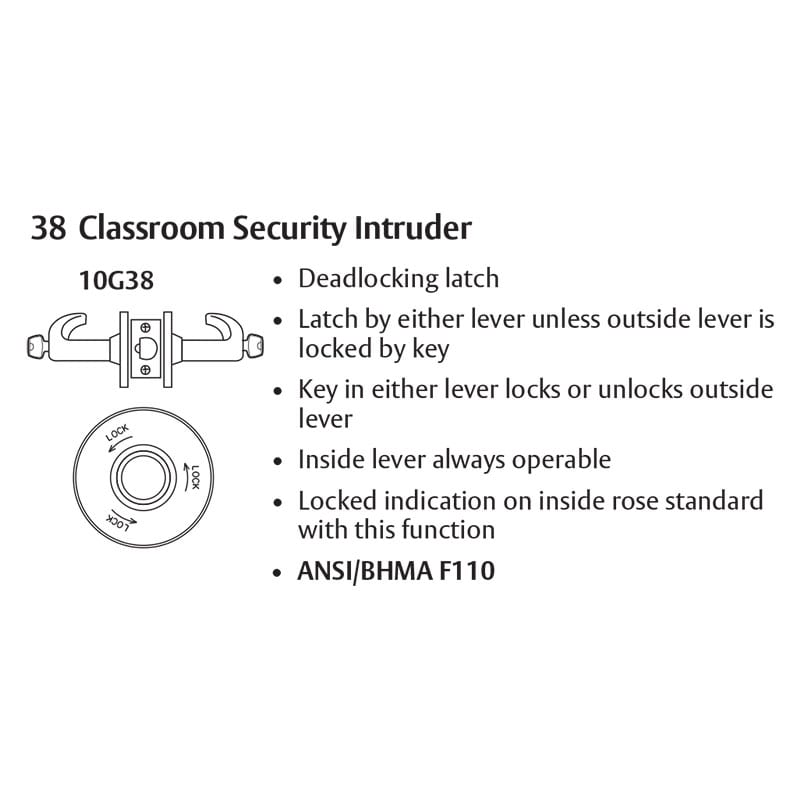

Classroom Security

  • Deadlocking latch
  • Latch by either lever unless outside lever is locked by key
  • Key in either lever locks or unlocks outside lever
  • Inside lever always operable
  • Locked indication on inside rose standard with this function

codes

Brand

Finishes

605 Bright Brass, 612 Satin Bronze, 613 Oil Rubbed Bronze, 626 Satin Chrome
Lock Function

Classroom Security
Lever Design

L
Rose Design

L
Usage

Heavy Duty
ANSI/BHMA Standard

Certified ANSI A156.2 Series 4000 — Grade 1
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

Fire Rated – UL10C – Positive Pressure
Cylinder & Keys

6-pin conventional, keyed different, with 2 keys
Keyway

Sargent LA Keyway
Latch

1/2” throw, deadlocking – 1-1/8" x 2-1/4" face
Backset

2-3/4" standard
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Handing

Non-Handed
Door Thickness

1-3/4" to 2"
